End mills details

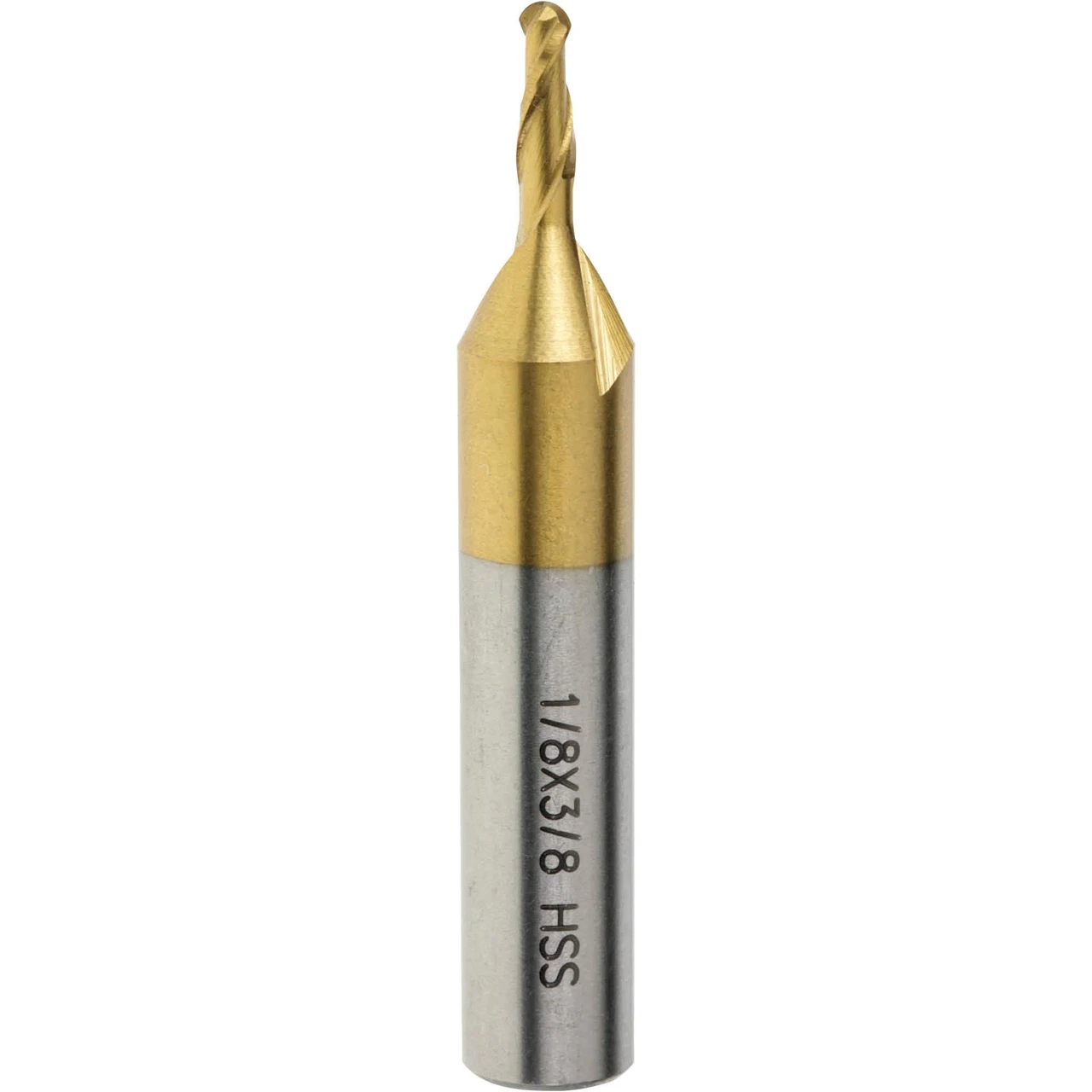

Grizzly Industrial TiN Coated 2-Flute Ball End Mills
Grizzly Industrial TiN Coated 2-Flute Ball End Mills are engineered for precision and durability, making them ideal for machining contoured surfaces. The titanium nitride (TiN) coating enhances tool life by up to six times compared to uncoated options, while providing cooler and more efficient performance.
The two-flute design offers better chip evacuation, making it perfect for detailed and precise milling tasks. With sizes ranging from 1/8" to 3/4" in diameter, these mills are versatile tools for a wide range of machining projects.
Specifications and Dimensions
1/8" Diameter: Shank 3/8", Flute Length 3/8", Overall Length 2-5/16"
1/4" Diameter: Shank 3/8", Flute Length 5/8", Overall Length 2-7/16"
3/8" Diameter: Shank 3/8", Flute Length 3/4", Overall Length 2-1/2"
1/2" Diameter: Shank 1/2", Flute Length 1", Overall Length 3"
9/16" Diameter: Shank 1/2", Flute Length 1", Overall Length 3"
5/8" Diameter: Shank 1/2", Flute Length 1-1/8", Overall Length 3-1/8"
3/4" Diameter: Shank 1/2", Flute Length 1-5/8", Overall Length 3-5/8"
Key Features and Benefits
TiN coating improves tool life and allows for higher operational speeds
HSS construction ensures durability and maintains sharpness longer
Ball tip design is ideal for machining contoured and complex surfaces
Two-flute design enhances chip evacuation for precision and smooth cuts
Available in multiple sizes to suit a variety of machining applications
Product identification
- Brand: Grizzly Industrial
