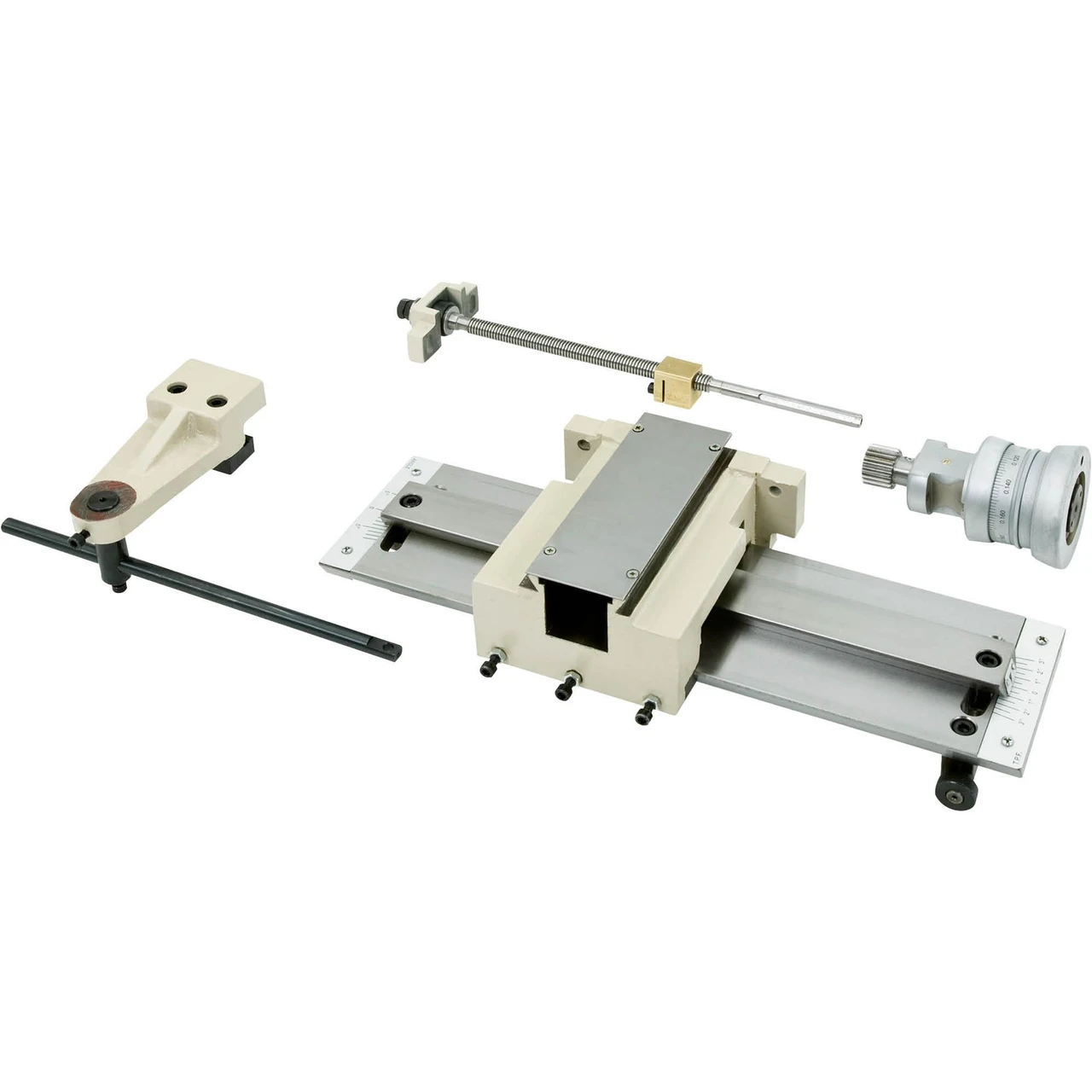

Grizzly Industrial Taper Attachment for G0709 & G0824 Lathe (T10502)
Grizzly Industrial Taper Attachment for G0709 & G0824 Lathe (T10502) is engineered for precision, allowing users to create inside and outside tapers with accuracy on the G0709 and G0824 lathes. Unlike traditional methods, this attachment eliminates the need to offset the tailstock or disengage the cross slide.
With a maximum taper length of 9 inches and a robust cast-iron and steel construction, this attachment delivers reliable performance. Its adjustable features, including fine-thread knobs and clear scale divisions, make it easy to achieve the desired taper angle or taper per inch settings.
Specifications and Dimensions
Maximum taper length: 9"
Taper per inch range: 0"– ±3"
Inch scale divisions: 1/2"
Taper angle range: 0°– ±5°
Angle scale divisions: 1°
Construction: Cast-iron and steel
Key Features and Benefits
Scales at both ends for reading inches of taper per foot and taper angles
Fine-thread adjustment knobs for precise taper control
Compatible with G0709 and G0824 lathes
Eliminates the need to offset the tailstock or disengage the cross slide
Made in an ISO 9001 factory for assured quality
Product identification
- Brand: Grizzly Industrial
- Model / MPN: T10502
