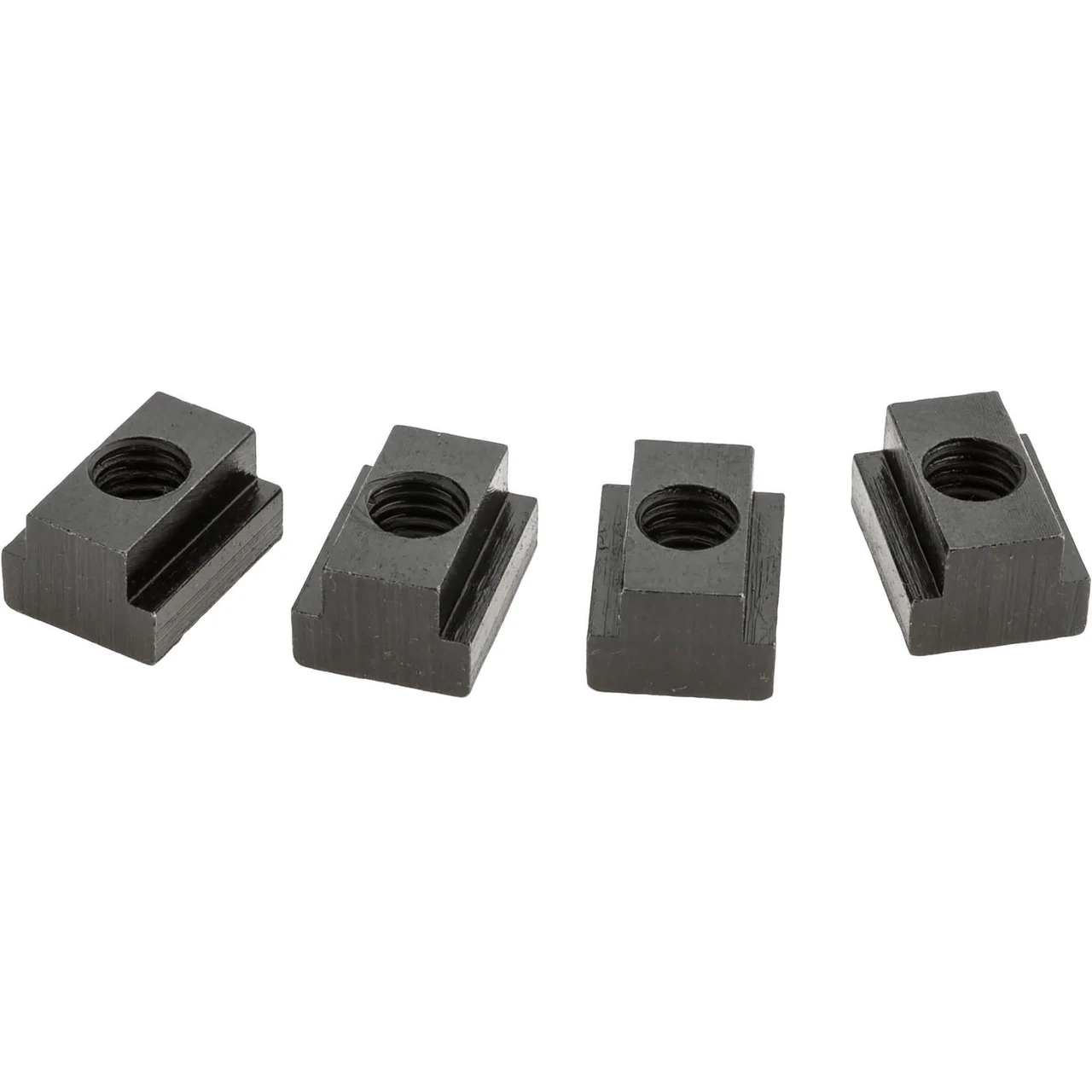

Grizzly Industrial Steel T-Slot Nuts Pack of 4 1/2"-13 (G9514, G9515, G9516)
Grizzly Industrial Steel T-Slot Nuts Pack of 4 1/2"-13 provides reliable and precise clamping solutions for milling machines and other workholding applications. Constructed from heat-treated steel, these T-slot nuts are made to withstand rigorous machining tasks.
The black oxide finish offers excellent resistance to corrosion, while the imperfect thread at the base prevents over-screwing and potential damage to the table slot. Whether you're setting up tools, securing fixtures, or adjusting workpieces, these T-slot nuts deliver performance you can count on.

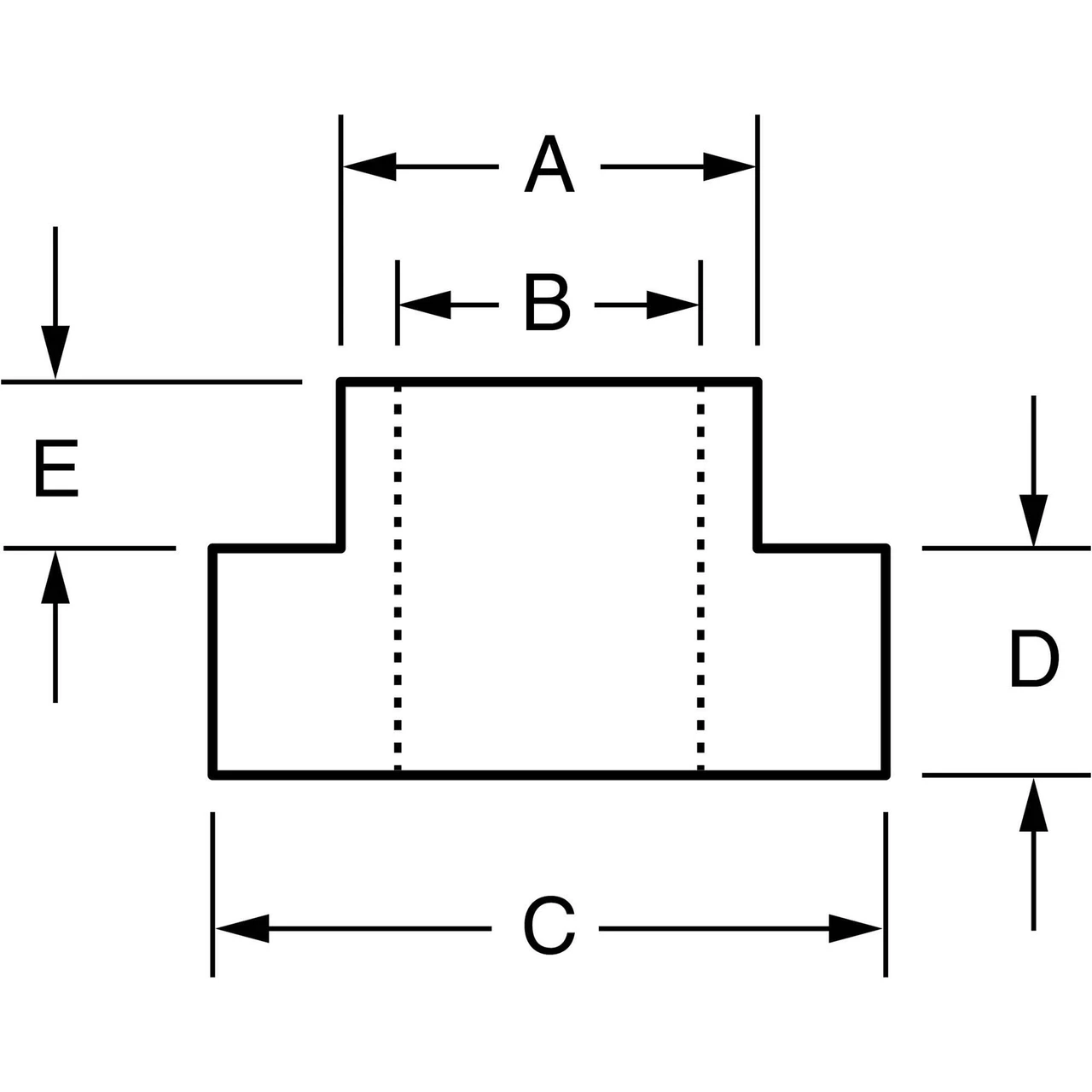

Specifications and Dimensions
Material: Heat-treated steel with black oxide finish
G9514: Dimension A (Top Width): 0.55", Dimension B (Threaded Hole): 1/2"-13, Dimension C (Base Width): 0.97", Dimension D (Base Height): 0.34", Dimension E (Top Height): 0.251"
G9515: Dimension A (Top Width): 0.62", Dimension B (Threaded Hole): 1/2"-13, Dimension C (Base Width): 1.0", Dimension D (Base Height): 0.333", Dimension E (Top Height): 0.27"
G9516: Dimension A (Top Width): 0.69", Dimension B (Threaded Hole): 1/2"-13, Dimension C (Base Width): 1-1/8", Dimension D (Base Height): 0.43", Dimension E (Top Height): 0.33"
Pack Quantity: 4
Key Features and Benefits
Made of heat-treated steel for maximum durability and strength.
Imperfect thread prevents over-screwing and damage to table slots.
Convenient pack of 4 offers cost-effective and reliable clamping solutions.
Product identification
- Brand: Grizzly Industrial
