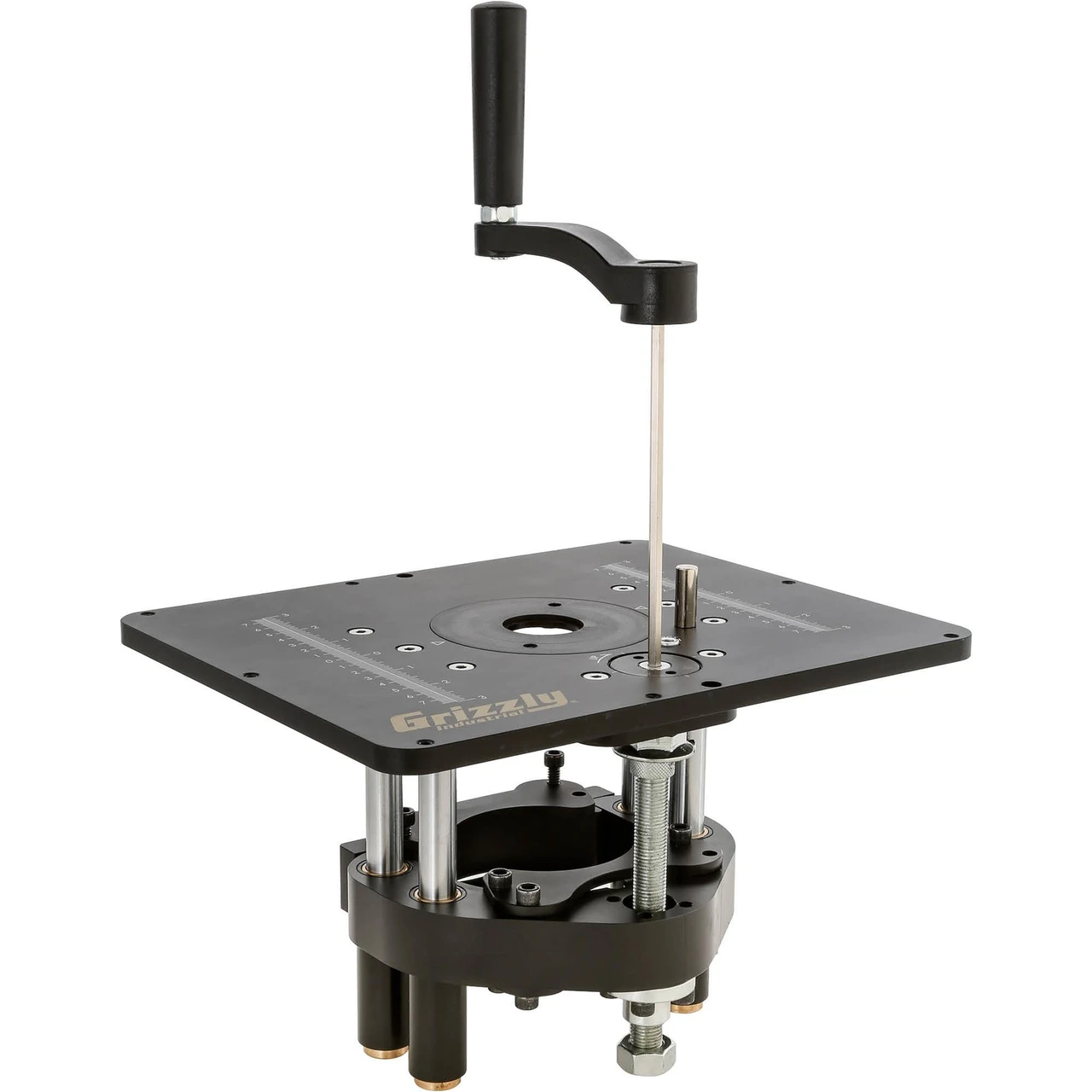

Grizzly Industrial Router Lift with 12" x 9" Table Insert (T31637)
Grizzly Industrial Router Lift with 12" x 9" Table Insert (T31637) is designed to revolutionize your woodworking precision and efficiency. This lift allows you to make above-the-table router bit changes and incredibly precise height adjustments with ease.

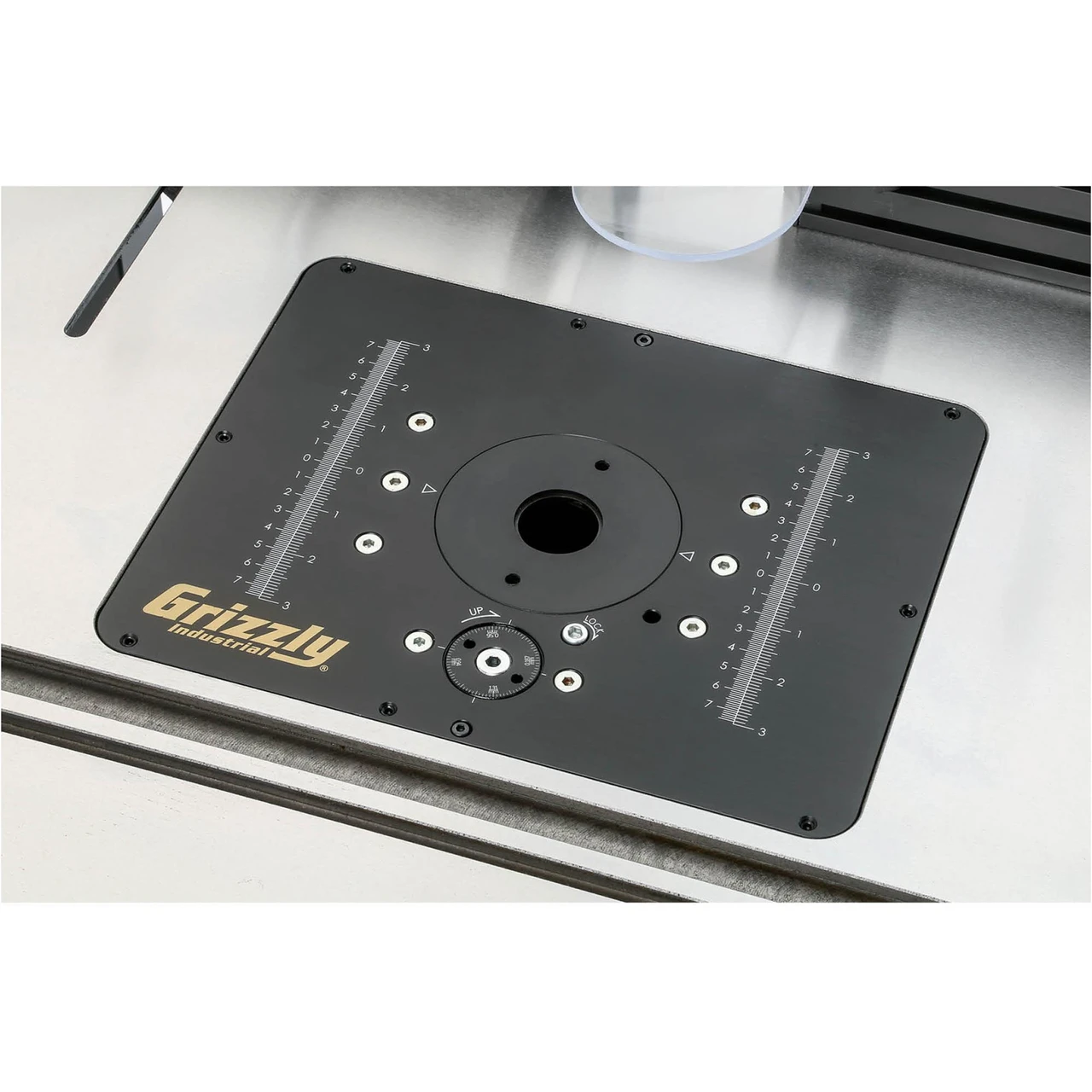

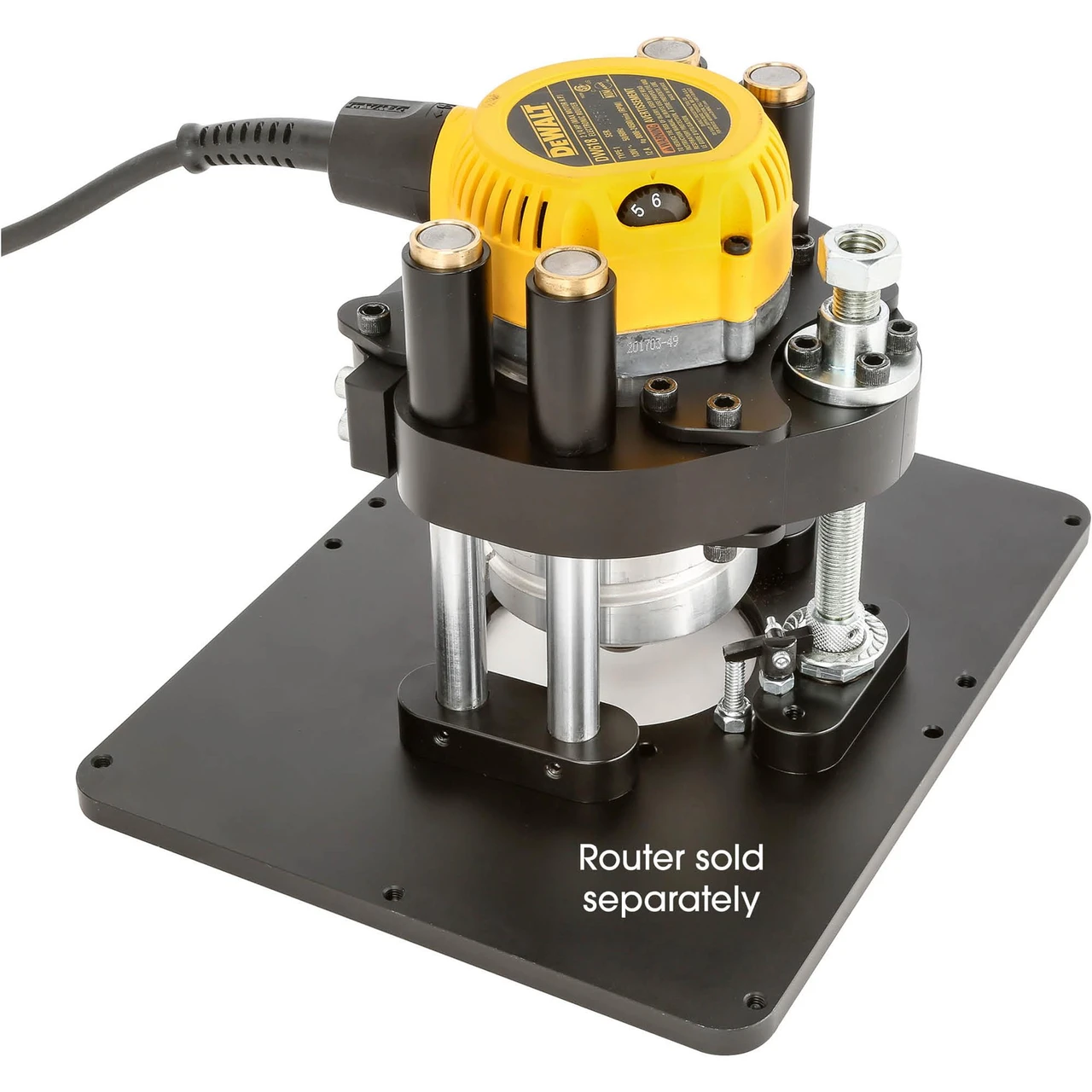

The precision-machined router lift is compatible with router body diameters of 3.2", 3.5", and 4.2", making it versatile for various setups. The included 3-3/4" O.D. table insert provides enhanced safety and control, while the robust 3/8"-thick plate ensures compatibility with router tables with matching depth ledges.
Specifications and Dimensions
Suitable routers for mounting: 3.2", 3.5", 4.2"
Plate size: 12" x 9" x 3/8"
Plate opening size: 3-3/4"
Table insert size: 3-3/4"
Table insert opening size: 1-1/4"
Router lift travel: 2-3/4"
Index ring increment: 0.05" per full turn
Overall dimensions: 12" W x 9" D x 7-1/2" H
Key Features and Benefits
Precision-machined router lift with smooth manual adjustments
Compatible with multiple router body diameters for versatile use
Inch/millimeter settings for enhanced measurement accuracy
Product identification
- Brand: Grizzly Industrial
- Model / MPN: T31637
