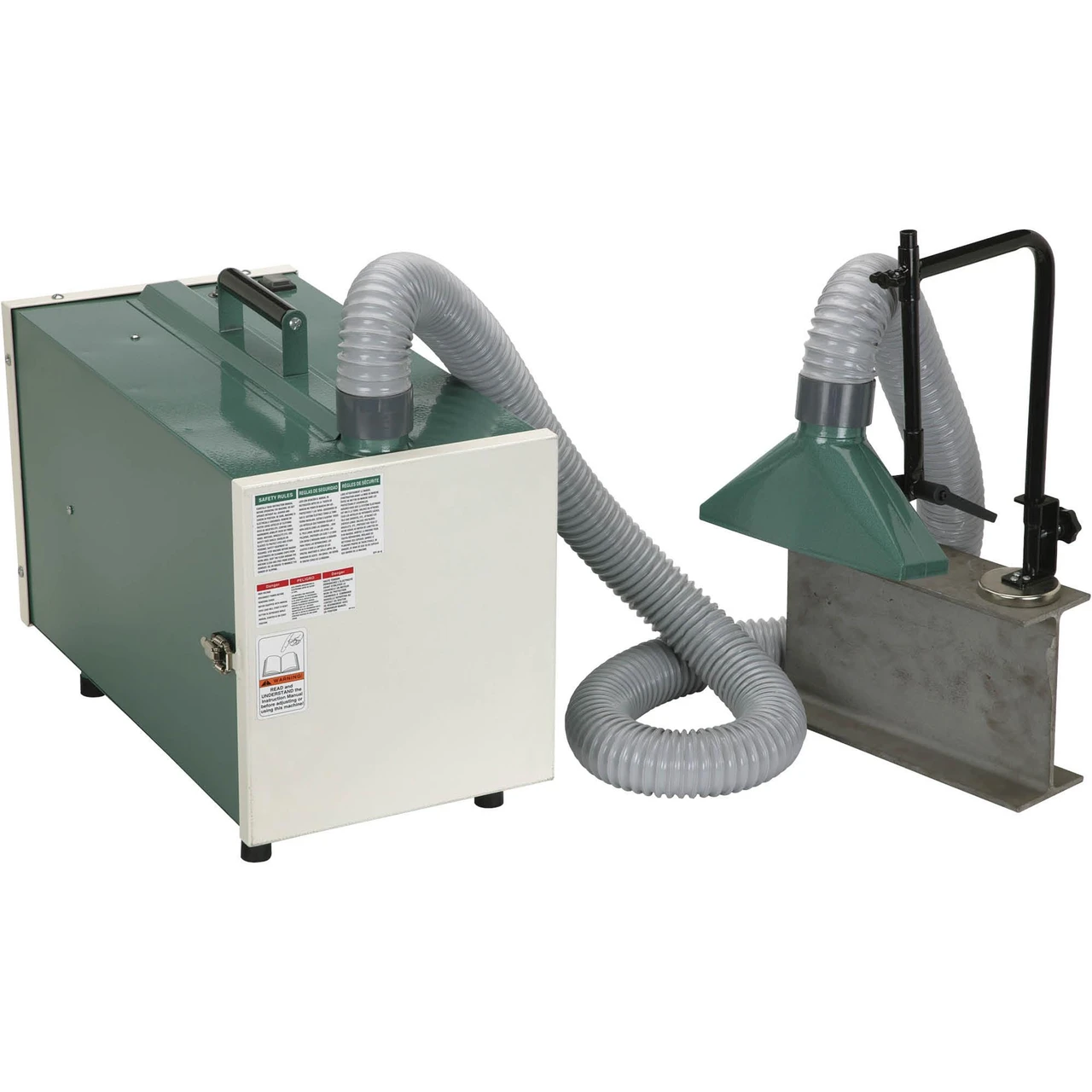

Grizzly Industrial Portable Fume Extractor (H8375)
Grizzly Industrial Portable Fume Extractor (H8375) ensures cleaner air in your workspace by efficiently capturing welding fumes, oily smoke, and dust. Equipped with a powerful five-stage filtration system, this unit filters particles as small as 0.3 microns before recycling the air back into your shop. Designed for portability, it can be easily moved or permanently connected to a small welding downdraft table.
With two squirrel-cage fans and high-capacity filters, the Grizzly Industrial Portable Fume Extractor delivers exceptional performance in capturing welding byproducts directly at the source.
Specifications and Dimensions
Motors: Two 1 HP, 100V, single-phase, 15A
Intake Hole Size: 2-1/2"
Impeller: 5" aluminum
Airflow Capacity: 230 CFM
Overall Dimensions: 14" W x 24-1/2" L x 19" H
Key Features and Benefits

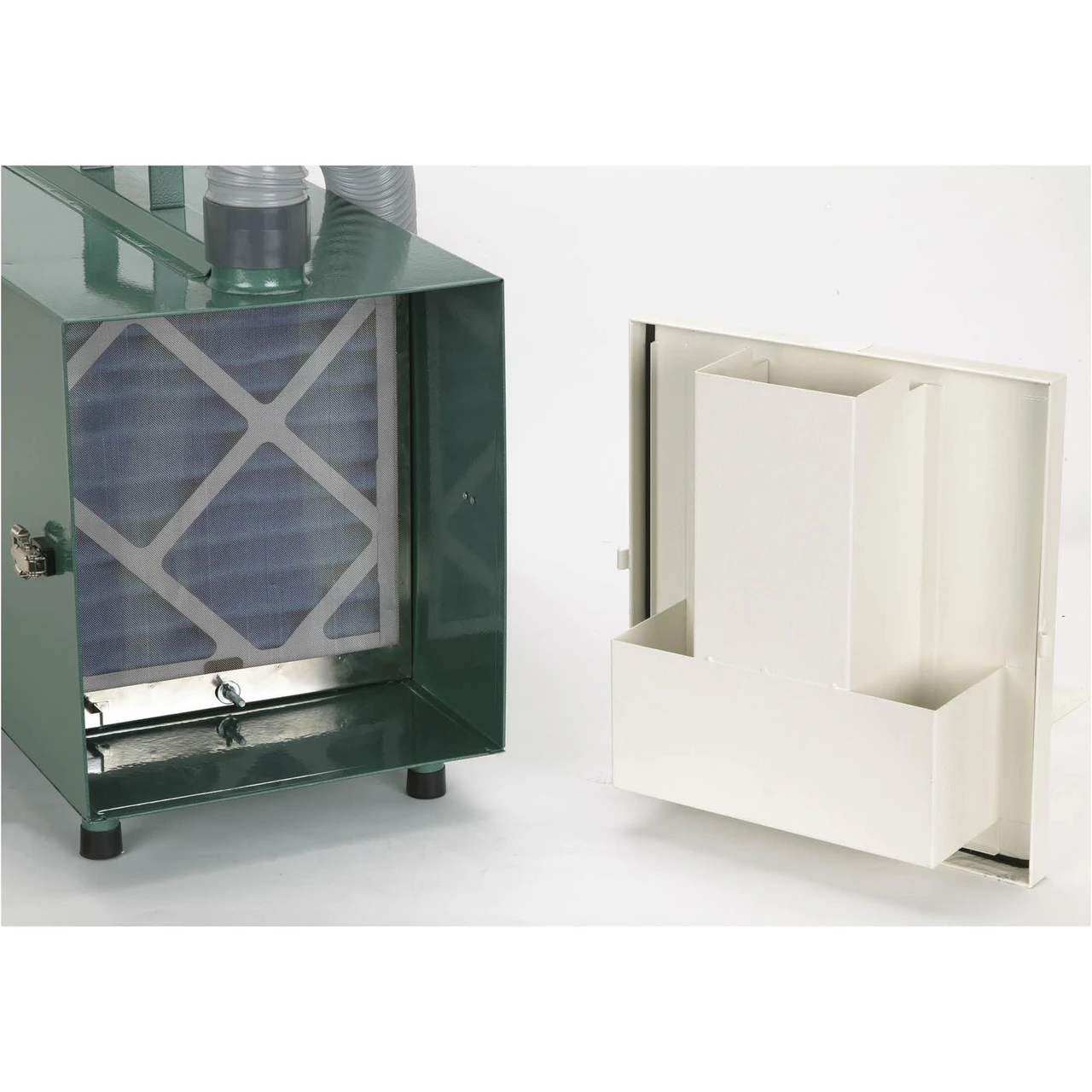

Baffle and fine screen capture large solids and sparks for added safety
Portable design allows for easy relocation or permanent setup

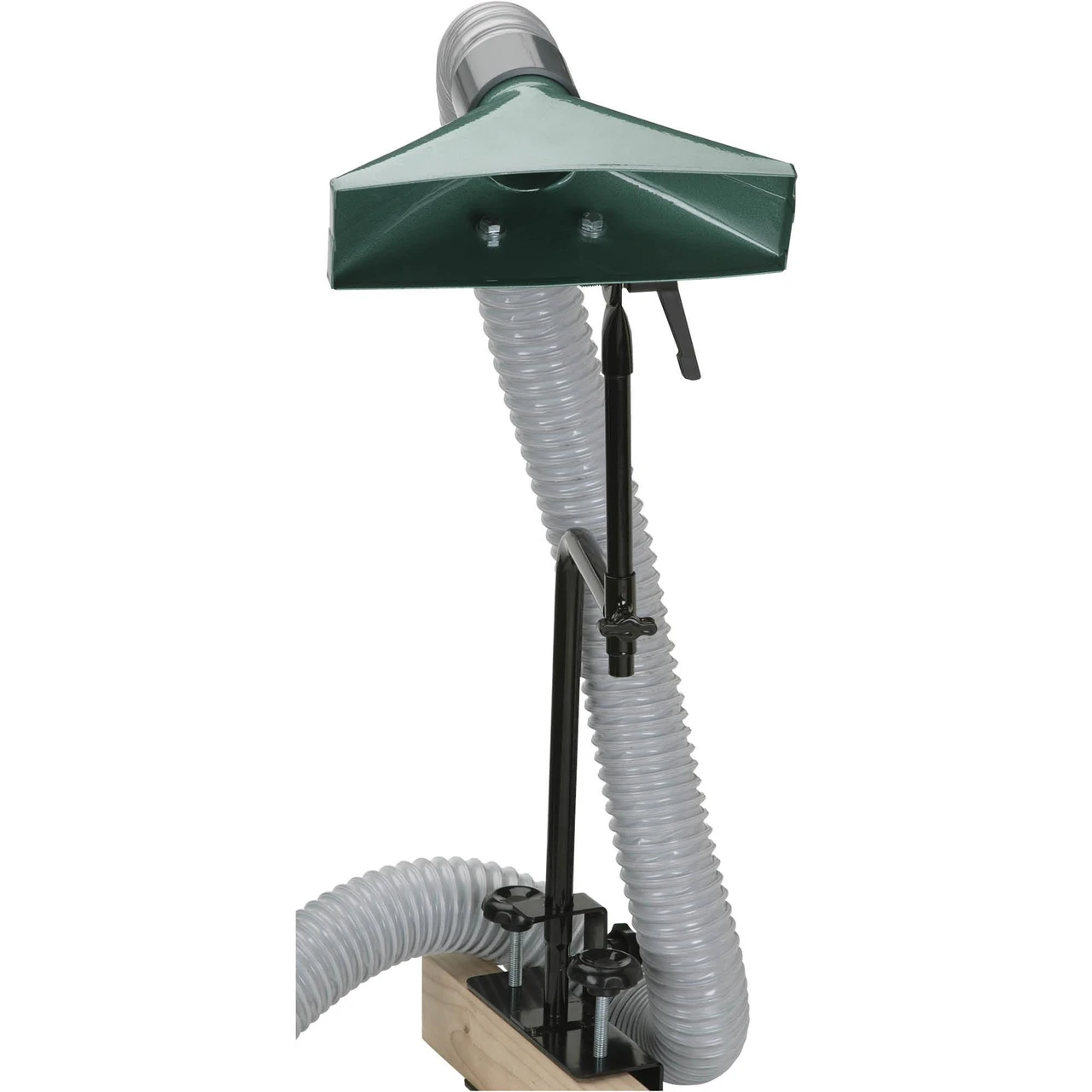

Includes an 8' flex hose, suction hood, and adjustable support
Durable construction with U.S.-based technical support
Product identification
- Brand: Grizzly Industrial
- Model / MPN: H8375
