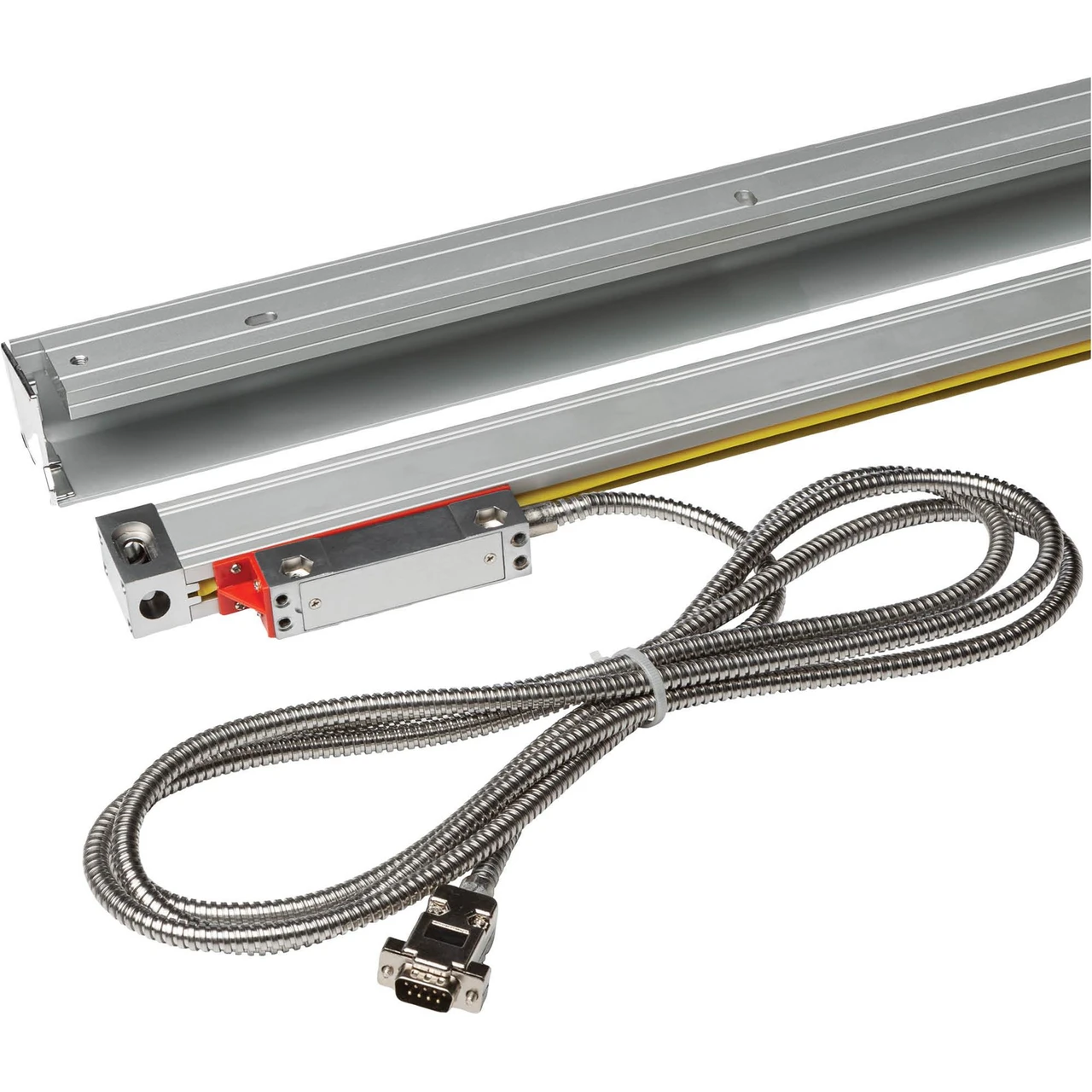

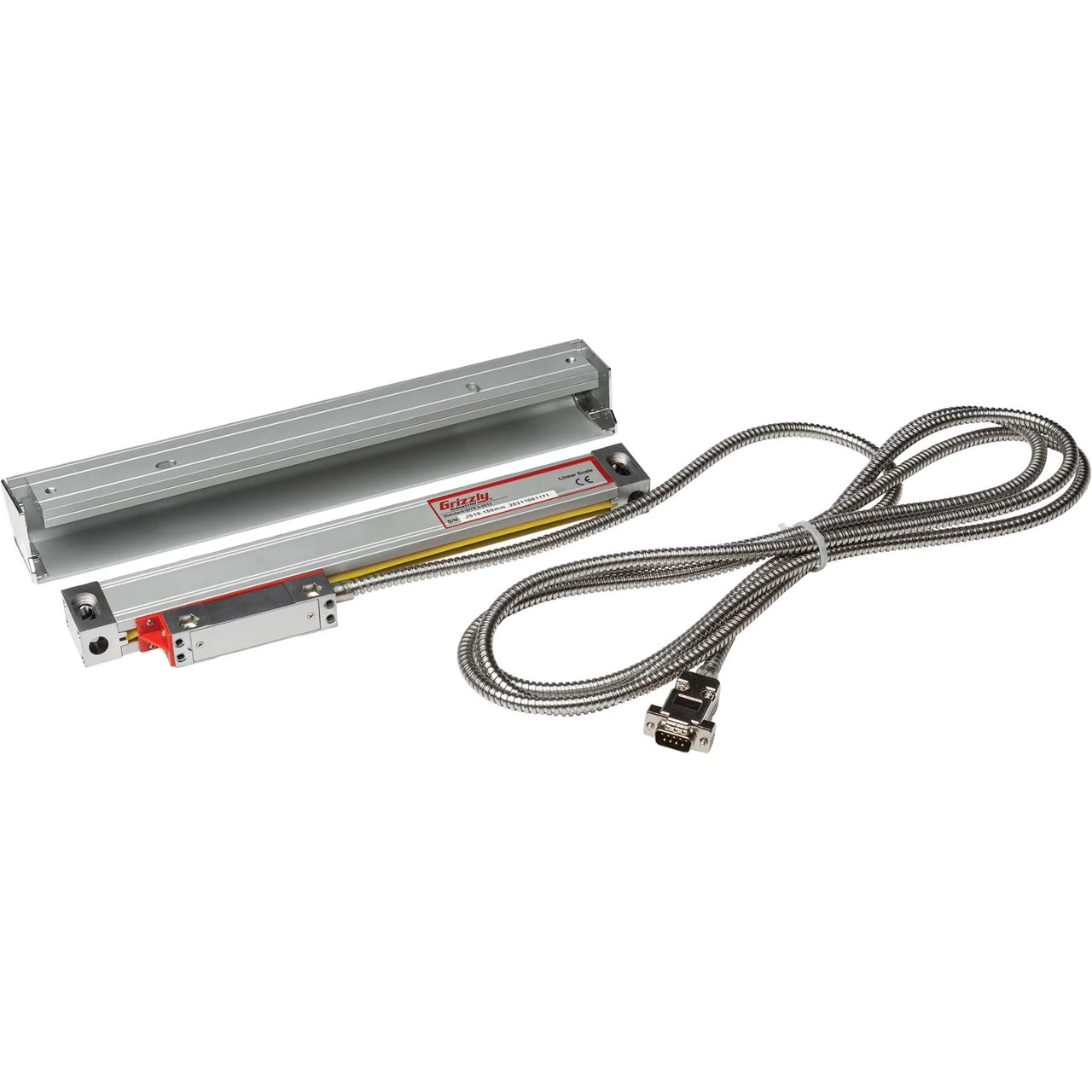

Grizzly Industrial Linear Optical Scale (T32981, T32982, T32983, T32984, T32985, T32986, T32987, T32988, T32989, T32990, T32991, T32992, T32993, T32994, T32995, T32996)
Grizzly Industrial Linear Optical Scale is engineered with individually calibrated glass transducers for precise measurements and compliance with strict specifications. The five-bearing sliding system ensures smooth and accurate motion for your custom DRO setup. The scale’s durable plastic seals provide exceptional oil resistance and high elastic recovery, making it ideal for demanding environments.
With superior performance in optical measurement using transmissive infrared technology, this scale is the perfect foundation for building a reliable digital readout system.
Specifications and Dimensions
T32981: Travel length: 5-7/8", Accuracy: ±6μm
T32982: Travel length: 7-7/8", Accuracy: ±6μm
T32983: Travel length: 9-7/8", Accuracy: ±6μm
T32984: Travel length: 11-13/16", Accuracy: ±6μm
T32985: Travel length: 13-13/16", Accuracy: ±6μm
T32986: Travel length: 15-3/4", Accuracy: ±6μm
T32987: Travel length: 17-3/4", Accuracy: ±6μm
T32988: Travel length: 19-11/16", Accuracy: ±10μm
T32989: Travel length: 21-11/16", Accuracy: ±10μm
T32990: Travel length: 23-5/8", Accuracy: ±10μm
T32991: Travel length: 29-9/16", Accuracy: ±10μm
T32992: Travel length: 31-1/2", Accuracy: ±10μm
T32993: Travel length: 39-3/8", Accuracy: ±10μm
T32994: Travel length: 43-5/16", Accuracy: ±15μm
T32995: Travel length: 51-3/16", Accuracy: ±25μm
T32996: Travel length: 63", Accuracy: ±25μm
Supply voltage: DC 5V
Optical period: 20μm
Optical measurement: Transmissive infrared
Repeatability: 2μm
Seal protection: IP53
Scanning head sliding system: Vertical five-bearing sliding system
Key Features and Benefits
Individually calibrated glass transducers for reliable accuracy
Five-bearing sliding system ensures smooth, precise motion
Durable seals provide superior oil resistance and durability
Compatible with custom DRO systems for enhanced machining control
Product identification
- Brand: Grizzly Industrial
