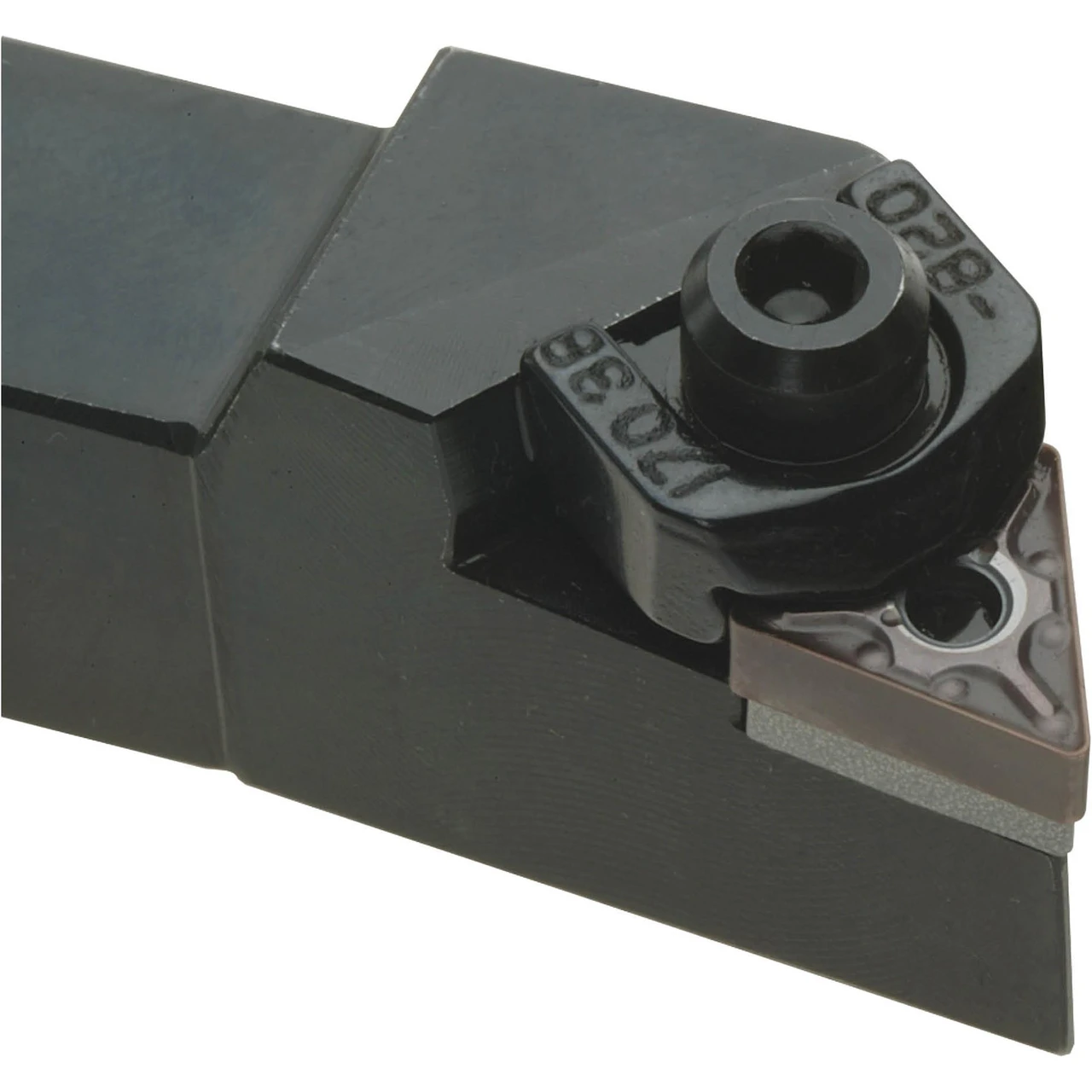

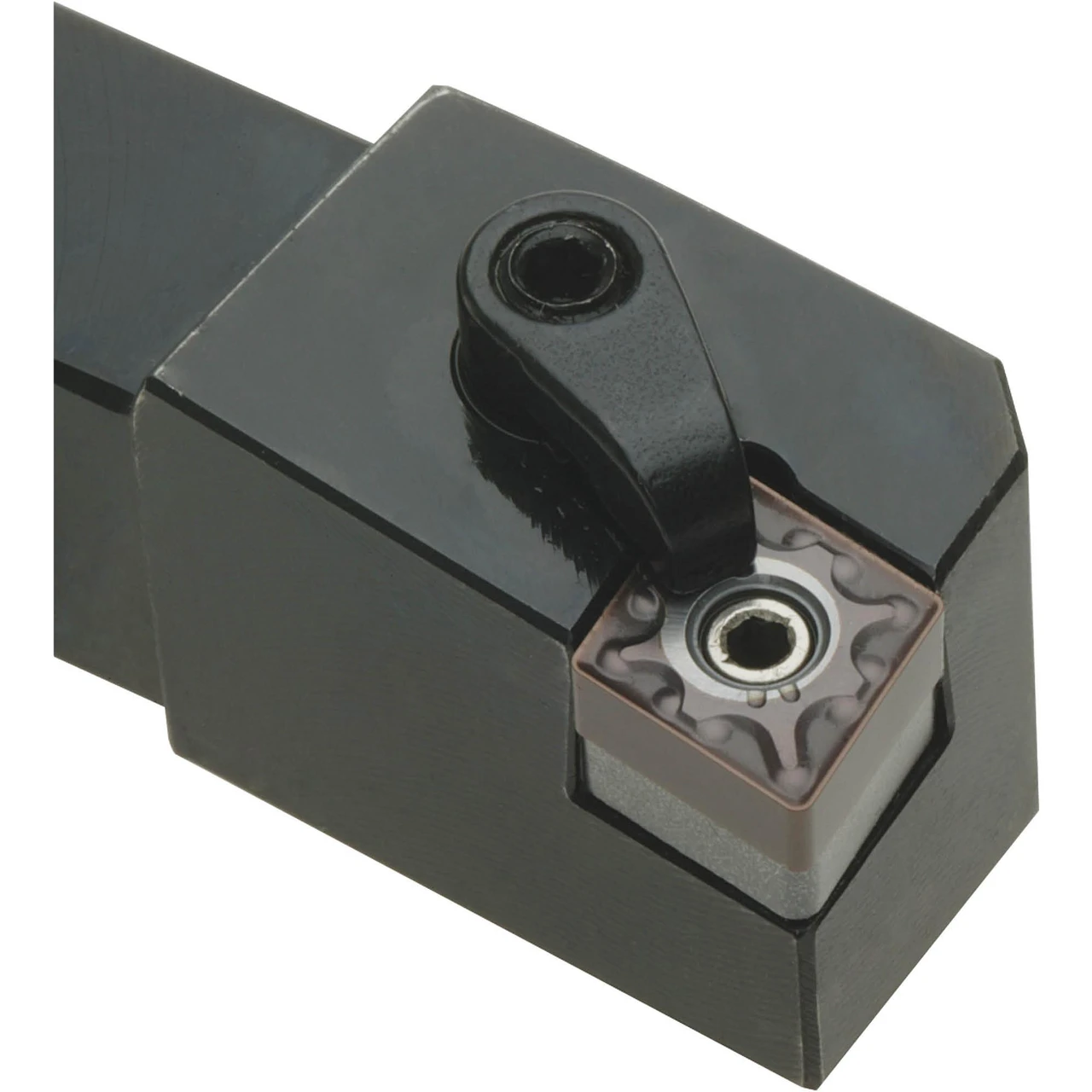

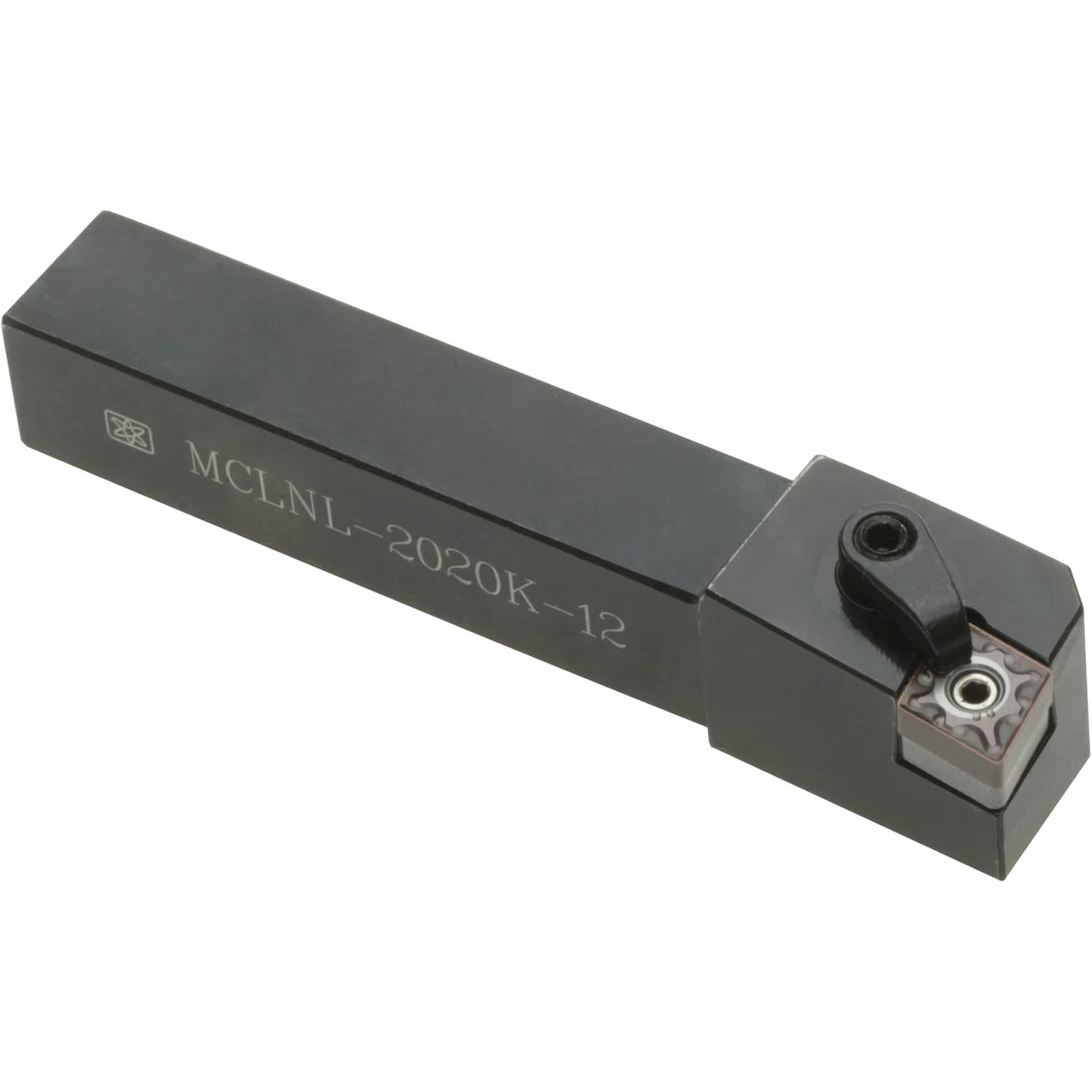

Grizzly Industrial Lathe Tool Holder Left-hand (H8284, H8285, H8286, H8287)
Grizzly Industrial Lathe Tool Holder Left-hand is precision-engineered to meet the demands of turning, facing, and contouring applications. Designed for compatibility with various shank sizes and cutting-edge angles, these tool holders are essential for achieving clean, precise results.
Each tool holder includes a forged clamp, double-acting clamp screw, carbide shim, and shim screw for secure insert placement. Built for reliability, they are compatible with ISO and ANSI inserts, ensuring versatility for multiple materials and machining needs.
Specifications and Dimensions
Shank Sizes: Available in 12mm x 12mm, 16mm x 16mm, and 20mm x 20mm
Overall Length: 4-15/16"
Hand Orientation: Left-Hand
Cutting Edge Angles: 60 degrees or 80 degrees
Compatible Inserts: ISO TNMG160408, CNMG120408, and ANSI TNMG332, CNMG432
Recommended Inserts: H8326, H8328, H8329, and H8331
Key Features and Benefits
Forged clamp and double-acting clamp screw ensure secure insert placement
Includes a carbide shim and shim screw for enhanced reliability
Available in multiple configurations to suit different lathes and operations
Product identification
- Brand: Grizzly Industrial
