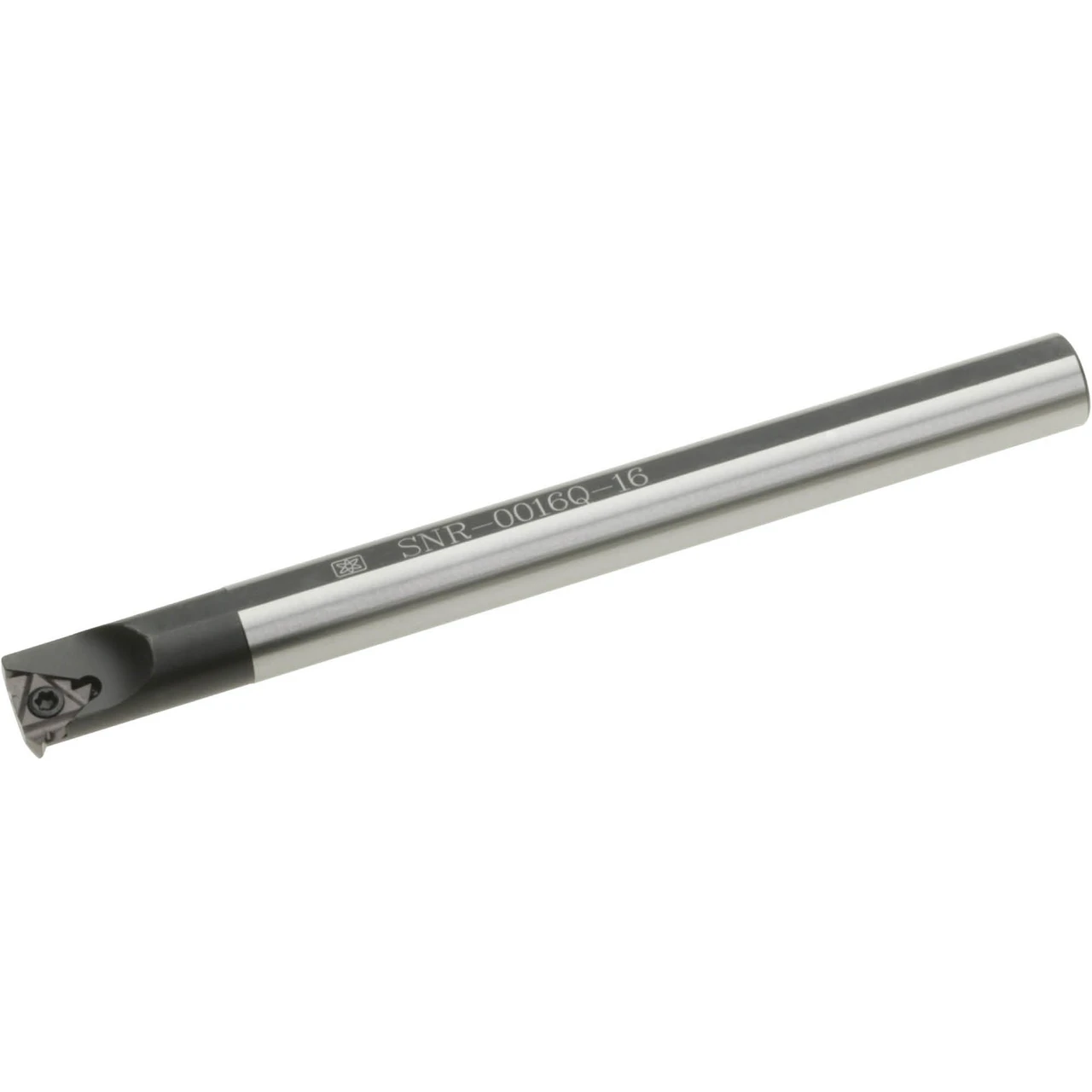

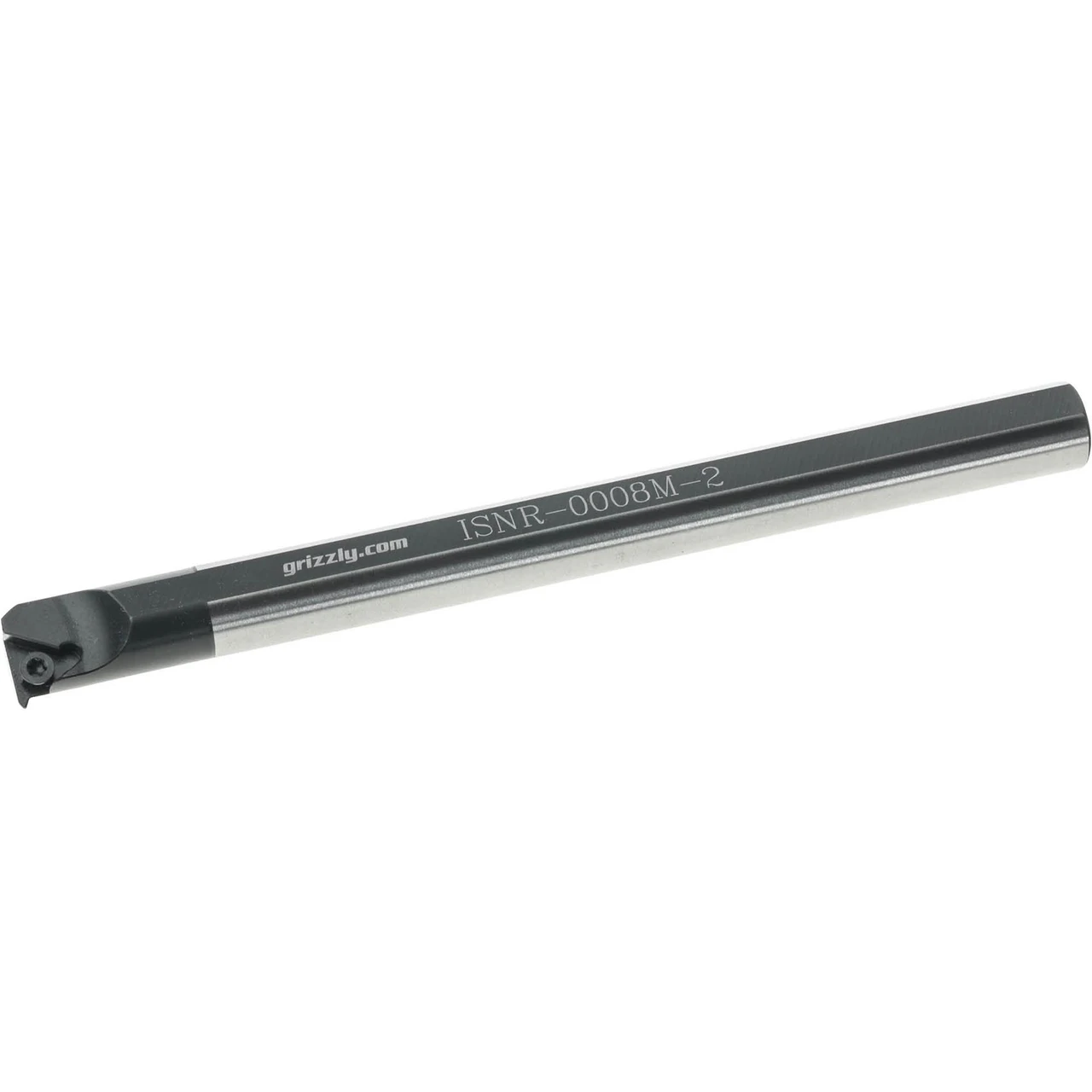

Grizzly Industrial Internal Threading Boring Bar Right-hand
Grizzly Industrial Internal Threading Boring Bar Right-hand is a precision-engineered tool designed for high performance and reliability in threading operations. Featuring a right-hand design and a 60° cutting edge angle, these boring bars excel at efficiently cutting threads with precision, even in tight spaces.
Available in various shank sizes, these tools are built to exact specifications with flats to hold the tool securely in a negative position. The insert pockets are cut for a tight fit, ensuring optimal support for inserts during machining. Inserts are not included.
Specifications and Dimensions
Shank Sizes: 5/16", 3/8", 1/2", 5/8", 3/4", and 1" diameters
Overall Lengths: 4-15/16" to 7-7/8"
Bore Depths: 2" to 5"
Minimum Bores: 0.433" to 1.142"
Hand Orientation: Right-Hand
Cutting Edge Angle: 60°
Bit Type: Insert
Key Features and Benefits
Designed for precise internal threading with a 60° cutting profile
Insert pockets cut for a tight fit and full support during machining
Includes a hardened Torx® screw for secure insert placement
Product identification
- Brand: Grizzly Industrial
