Grizzly Industrial Horizontal/Vertical Rotary Indexing Table with Chuck (H7506)
Grizzly Industrial Horizontal/Vertical Rotary Indexing Table with Chuck (H7506) is engineered for complex milling operations, allowing for precise drilling and cutting at exact intervals. This versatile tool can be used in both horizontal and vertical positions to accommodate various machining needs.

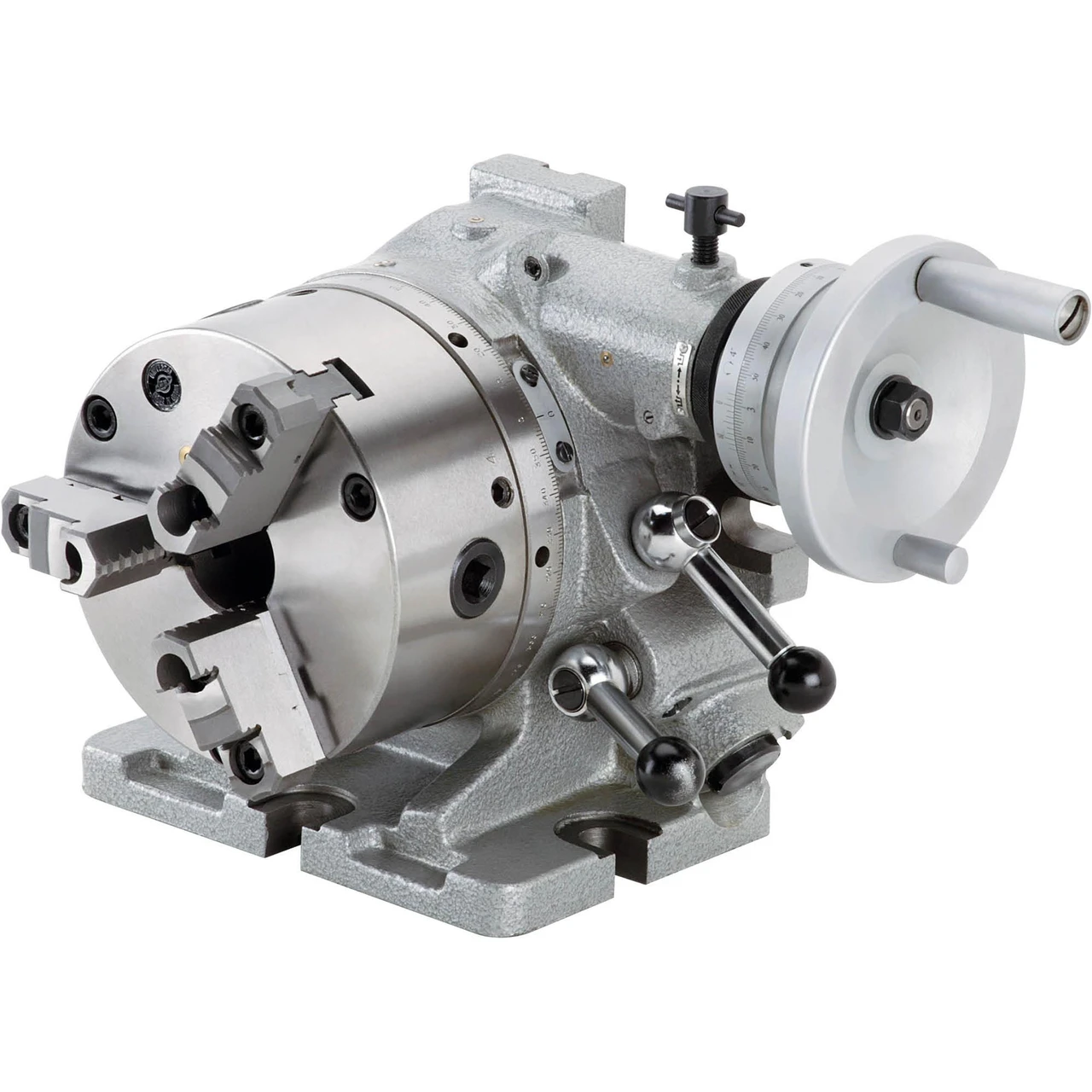

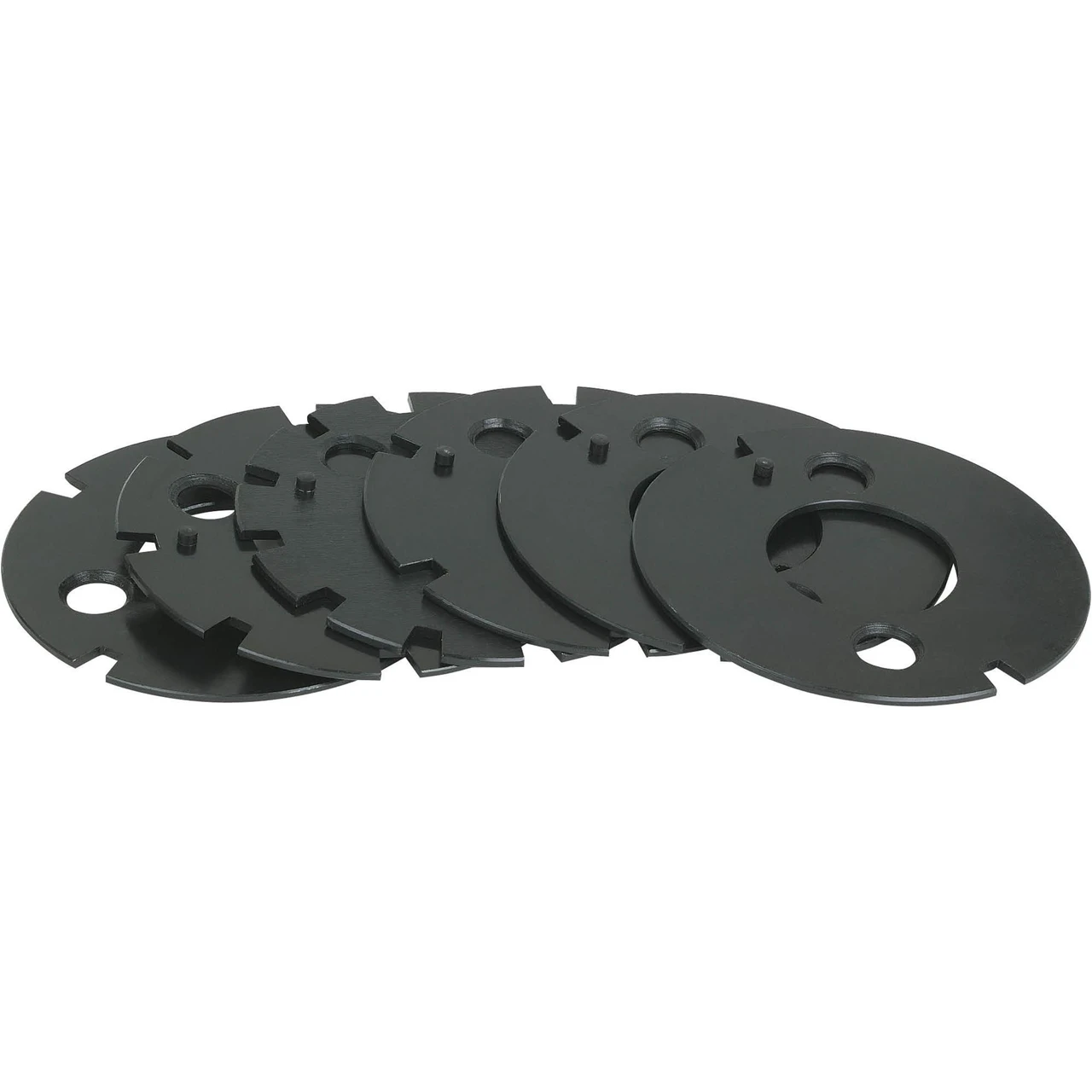

Featuring a precision adjustable 3-jaw chuck and six spacer masks, this rotary table supports multiple divisions for intricate milling processes including arcs, circles, and complex profiles. Its robust construction ensures accuracy and longevity in all applications.
Specifications and Dimensions

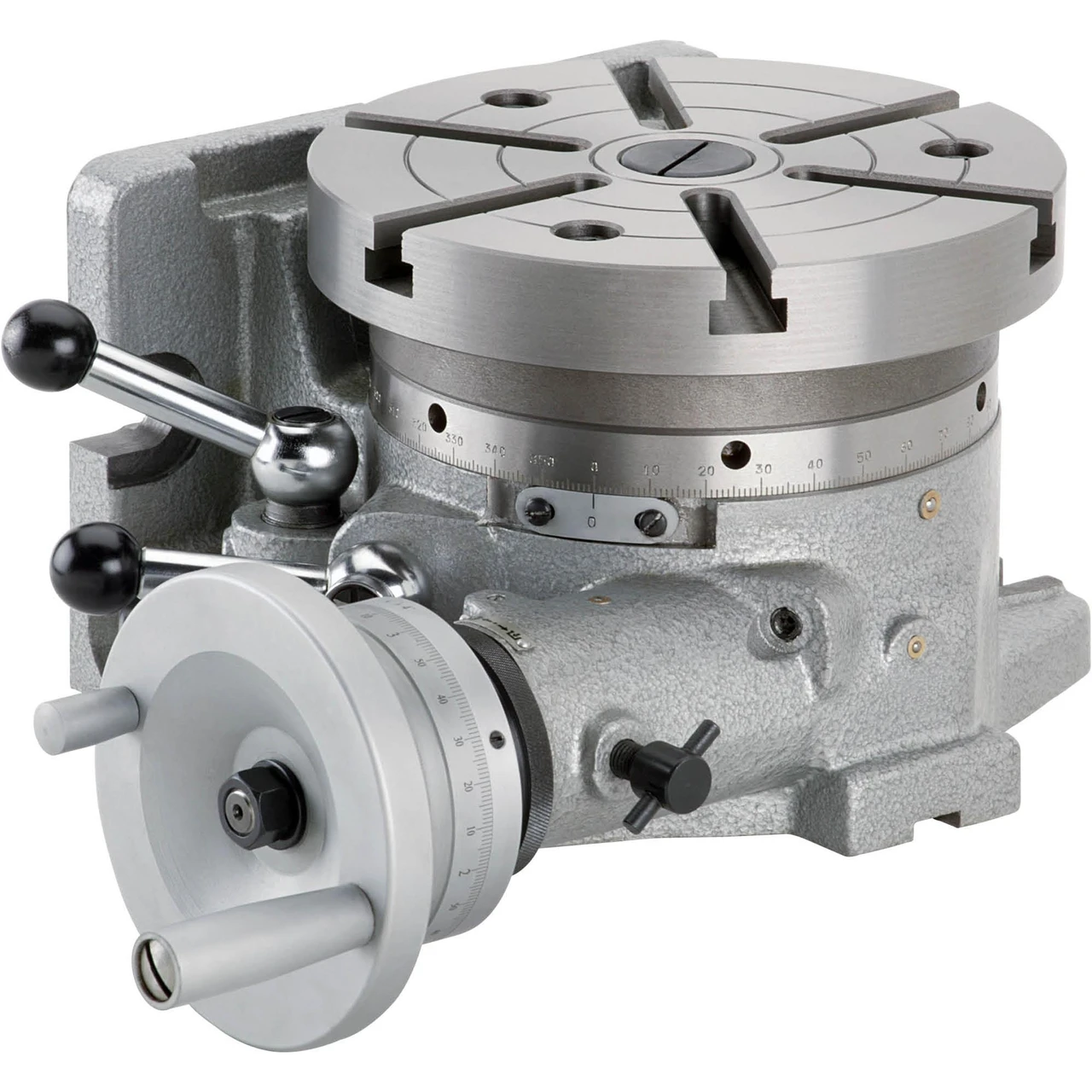

Table Diameter: 8 inches
T-Slots: 6 slots
Weight: Approximate 129 lbs
Vernier scale for 10-second readings
Key Features and Benefits
Adjustable settings for 2, 3, 4, 6, 8, 12, and 24 divisions enhancing versatility
Dual-position usage (horizontal/vertical) increases operational flexibility
Precision control with 4° per revolution adjustment and backlash adjustment wheel
Product identification
- Brand: Grizzly Industrial
- Model / MPN: H7506
