Grizzly Industrial Horizontal Slot Mortiser (G0846)
Grizzly Industrial Horizontal Slot Mortiser (G0846) is an essential addition to any woodworker's shop, designed to tackle mortise and tenon joinery with ease. Featuring a 2 HP, 220V motor, and a precision-ground cast-iron table, this mortiser offers robust performance and precise cuts for even the most demanding projects.
This mortiser excels in versatility, allowing angled mortises, multiple spacing patterns, and repeatable operations using its adjustable stops and indexing guide. The table's X-axis and Y-axis stops, combined with a 5/8" chuck capacity and forward/reverse spindle control, make it the go-to tool for furniture and cabinet makers seeking efficiency and accuracy.
Specifications and Dimensions
Motor: 2 HP, 220V, single-phase, 10A
Maximum stock thickness: 10-3/4"
Table cross travel: 6"
Table longitudinal travel: 12-1/2"
Table vertical travel: 5-1/2"
Table size: 8-1/4" x 20"
Indexing guide increments: 5/8", 3/4", 7/8", and 1"
Chuck capacity: 5/8"
Dust port size: 4"
Overall dimensions: 32" W x 36" D x 48-1/2" H

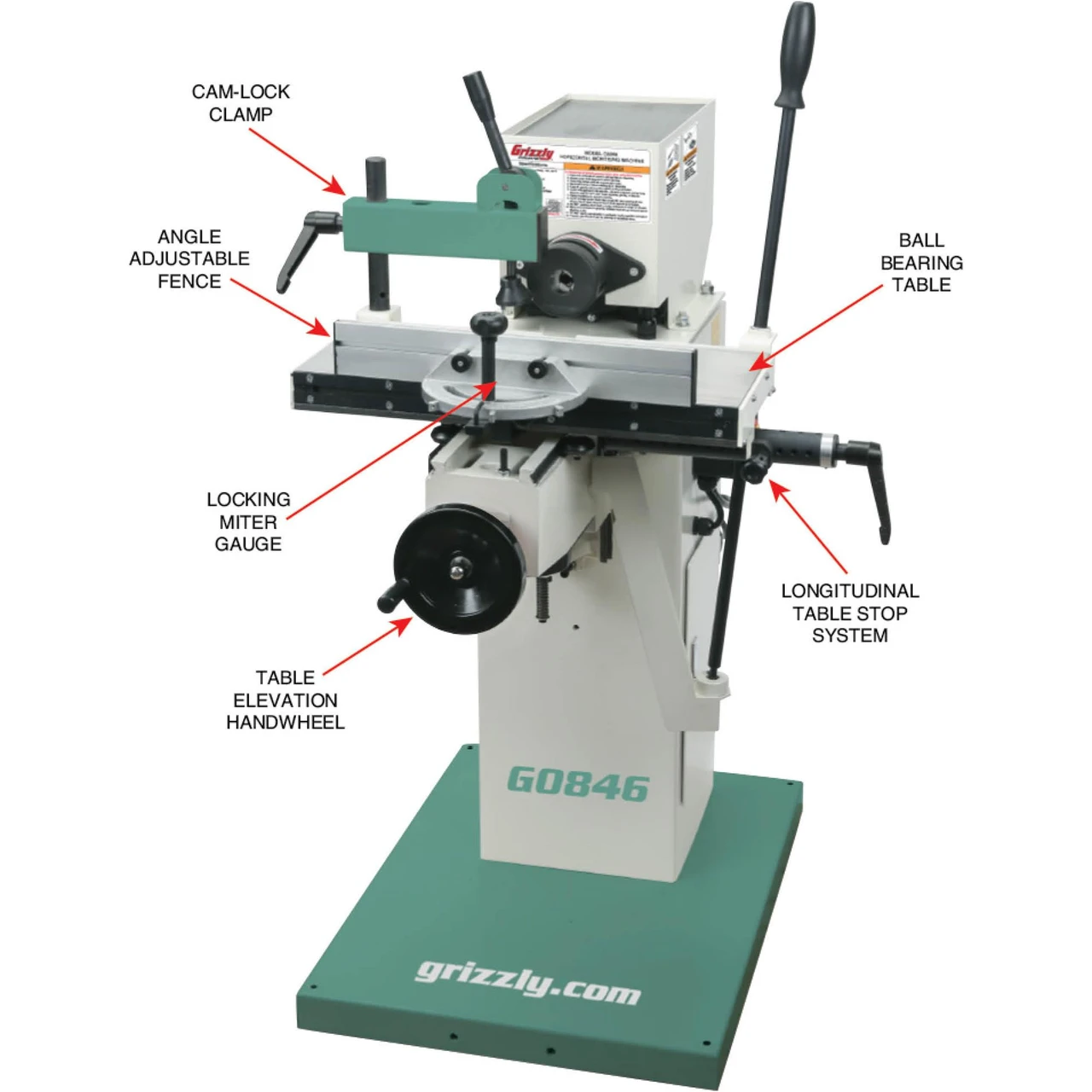

Key Features and Benefits
Powerful 2 HP motor for efficient mortising
Precision-ground, cast-iron table for stability
Adjustable cam-action hold-down clamp for secure workpieces
Indexing guide with 4 spacing patterns for repeatability
4" dust port for convenient dust collection
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G0846
