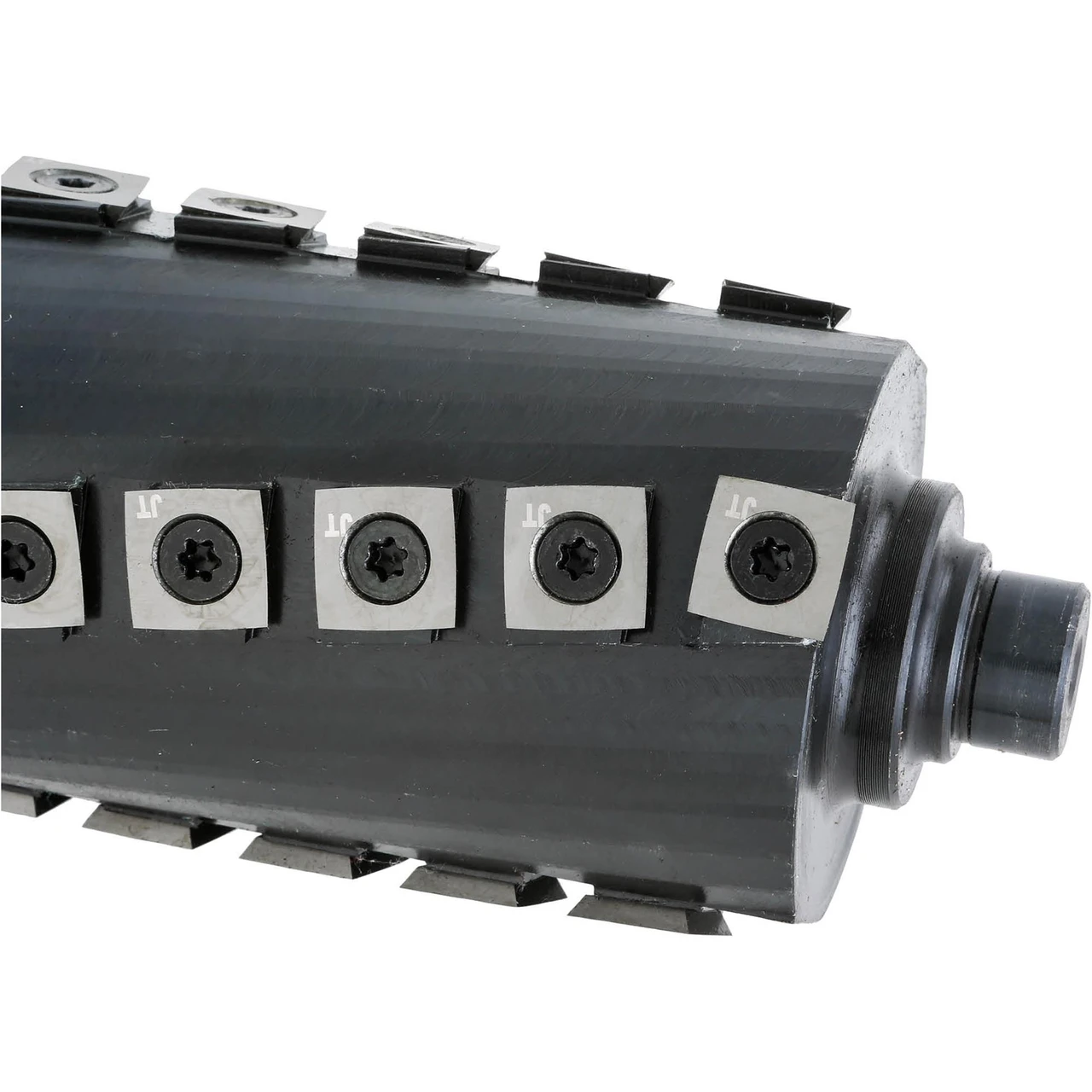

Grizzly Industrial Helical Cutterhead for Jointers (T27696, T27697, T27698, T27699, T27713)
Grizzly Industrial Helical Cutterhead for Jointers offers a superior upgrade for jointers, providing quiet operation, improved dust collection, and a glass-smooth finish. This helical cutterhead reduces noise and delivers exceptional results, making it a top choice for professionals and hobbyists.
With 96 indexable carbide inserts, this cutterhead ensures extended use and easy maintenance. Each insert can be rotated up to three times for a fresh edge, eliminating the need to replace dull blades frequently.
Specifications and Dimensions
Maximum width of cut: 12"
Cutterhead diameter: 98 mm
Number of indexable carbide inserts: 96
Insert size: 15 x 15 x 2.5 mm
Key Features and Benefits
Helical design minimizes noise and vibration
Indexable carbide inserts for long-lasting sharpness
Improved dust collection and reduced maintenance
Precision shearing action for smooth cuts on tough woods
Compatible with multiple 12-inch jointer models
Compatibility and Additional Specifications:
Grizzly G0609 12" Jointers
Grizzly G0609Z 12" Jointers
T27696 SPECIFICATIONS:
Grizzly G0490 8" Jointers
Grizzly G0490X 8" Jointers
T27697 SPECIFICATIONS:
Maximum width of cut: 8"
Cutterhead diameter: 85 mm
Number of indexable carbide inserts: 40
T27698 SPECIFICATIONS:
Maximum width of cut: 6"
Cutterhead diameter: 65 mm
Number of indexable carbide inserts: 30
Grizzly G0452 6" Jointers
Grizzly G0452P 6" Jointers
Grizzly G0654 6" Jointers
Grizzly G1182 Series 6" Jointers (manufactured since 2003)
Grizzly G0604 6" Jointers
Grizzly G0604X 6" Jointers
T27699 SPECIFICATIONS:
Cutterhead diameter: 75 mm
Grizzly G0656 8" Jointers
Grizzly G0656P 8" Jointers
T27713 SPECIFICATIONS:
Cutterhead diameter: 74 mm
Product identification
- Brand: Grizzly Industrial
