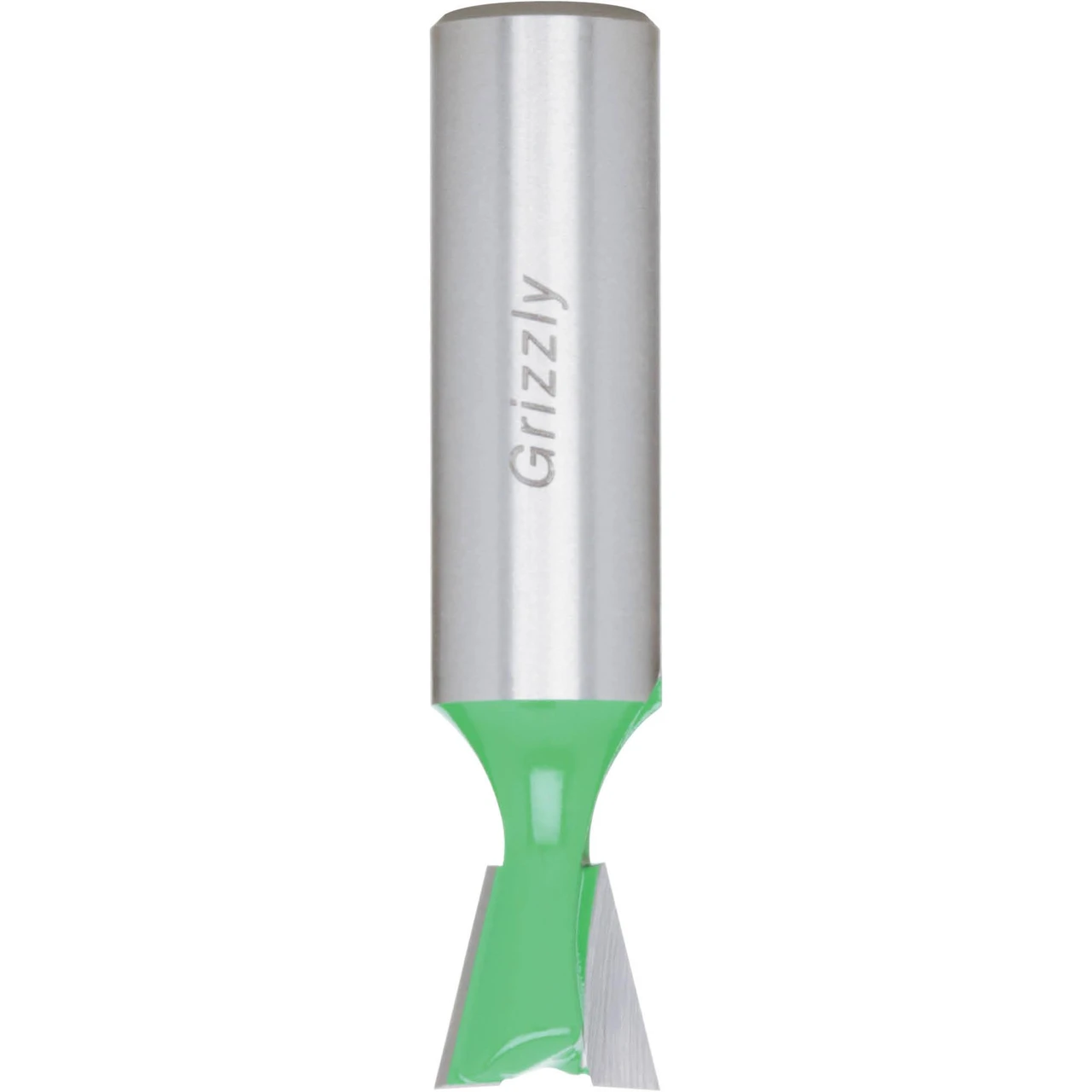

Grizzly Industrial Dovetail Bit, 1/2" Shank (C1074, C1076, C1077, C1078)
Grizzly Industrial Dovetail Bit is expertly crafted for clean, precise dovetail joinery. Designed with a 1/2" shank, this bit is ideal for routing in wood, laminates, and plywood, ensuring smooth, clean cuts thanks to its forward shear angle. With a cutter diameter of 1/2" and maximum RPM of 24,000, this bit is built for stability and precision in fine furniture and cabinet projects.
This dovetail bit is constructed with top-quality carbide sharpened to a 600-grit finish. The anti-friction coating allows for efficient cutting by reducing wear, while its ISO 9001 manufacturing ensures consistent quality.
Specifications and Dimensions
C1074 Dimensions: Cutter Diameter: 1/2", Cutting Length: 1/2", Overall Length: 2-1/4", Angle: 14 degrees
C1076 Dimensions: Cutter Diameter: 3/4", Cutting Length: 3/4", Overall Length: 2-1/2", Angle: 14 degrees
C1077 Dimensions: Cutter Diameter: 1", Cutting Length: 1-1/8", Overall Length: 2-3/4", Angle: 14 degrees
C1078 Dimensions: Cutter Diameter: 17/32", Cutting Length: 1/2", Overall Length: 2-1/4", Angle: 14 Degrees
Key Features and Benefits
Forward shear angle for precise, clean dovetail joints
Durable carbide construction with high-tensile brazing
Ideal for routing wood, plywood, and laminates
Product identification
- Brand: Grizzly Industrial
