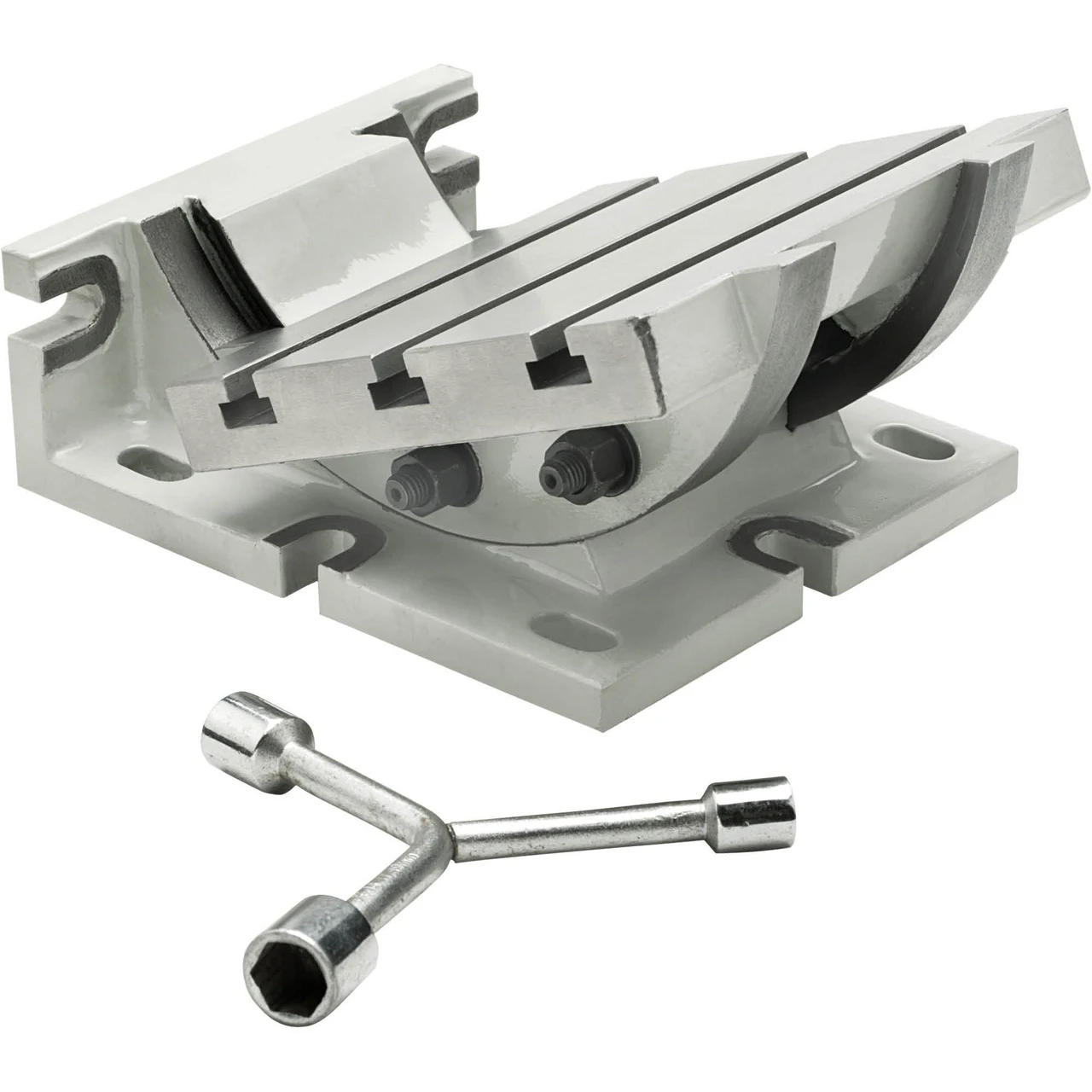

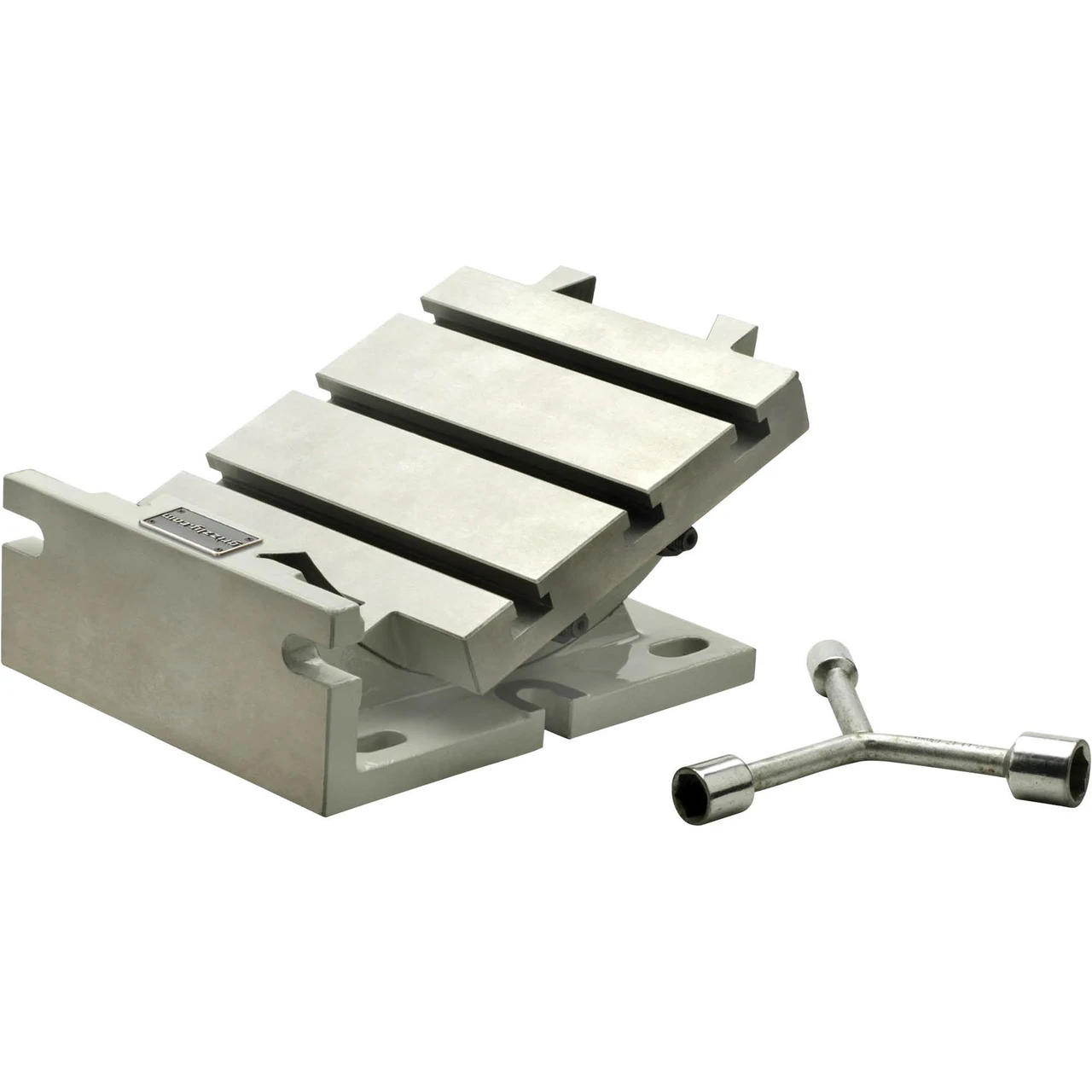

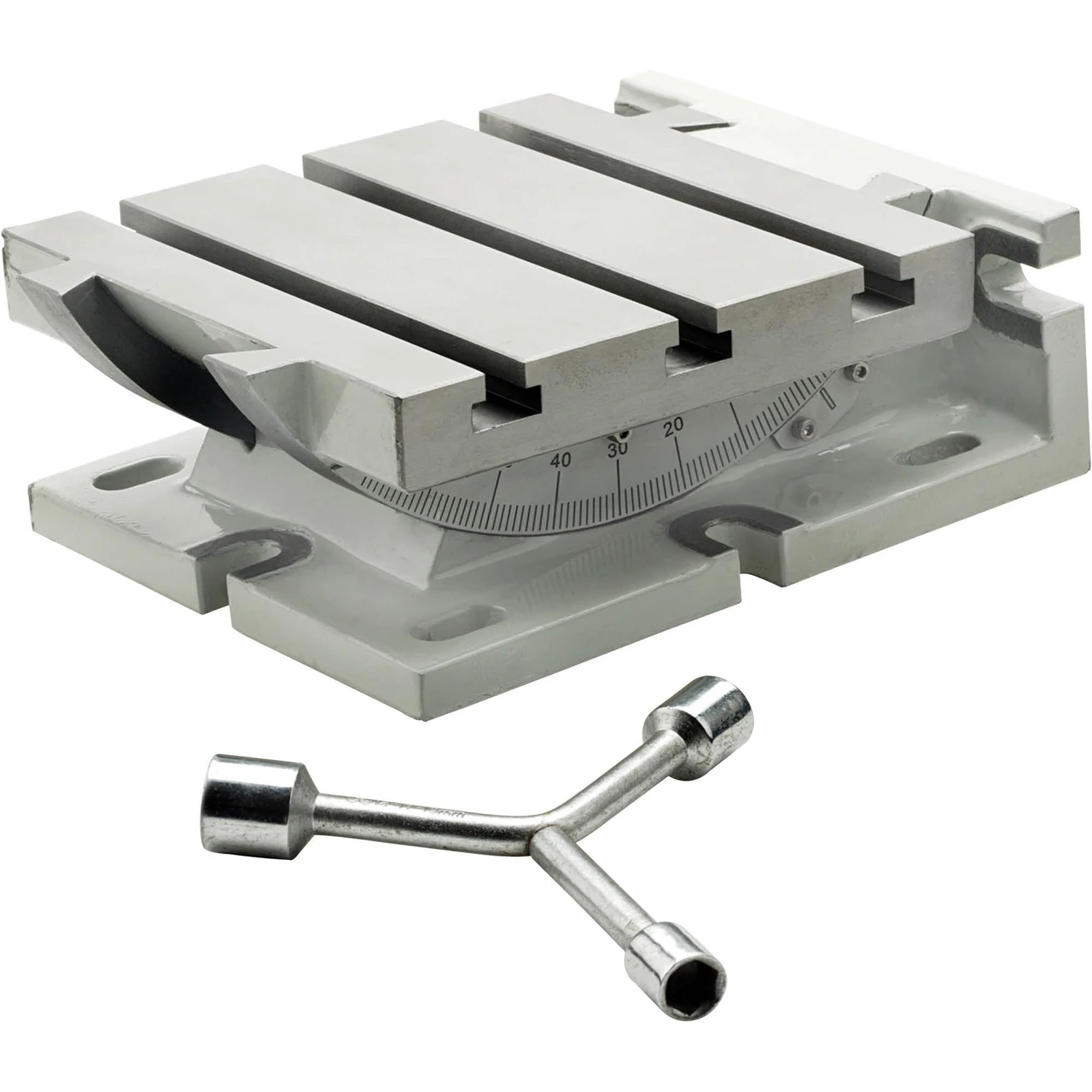

Grizzly Industrial 7" x 7" Horizontal / Vertical T Slot Tilting Table (T10221)
Grizzly Industrial 7" x 7" Horizontal / Vertical T Slot Tilting Table (T10221) is a versatile machining tool, designed to enhance your precision in milling and drilling projects. This tilting table operates horizontally or vertically, allowing you to adjust angles effortlessly for complex tasks.
Equipped with 3/8" T-slots spaced 2-9/16" apart, this table is ideal for securely mounting workpieces of various sizes. Its low-profile design maximizes vertical machining capacity, and the double lock nuts provide secure angle settings.
Specifications and Dimensions
Table size: 7-7/8" x 7-13/16"
T-slot size: 3/8"
T-slot spacing: 2-9/16" on center
Overall size: 9-1/2" L x 7-7/8" W x 3-1/2" H
Construction: Precision milled dovetail trunnions
Key Features and Benefits
Horizontal and vertical usability for versatile machining
Low-profile design conserves vertical machining capacity
Double lock nuts ensure secure angle positioning
Includes a 3-way socket wrench for convenient operation
Product identification
- Brand: Grizzly Industrial
- Model / MPN: T10221
