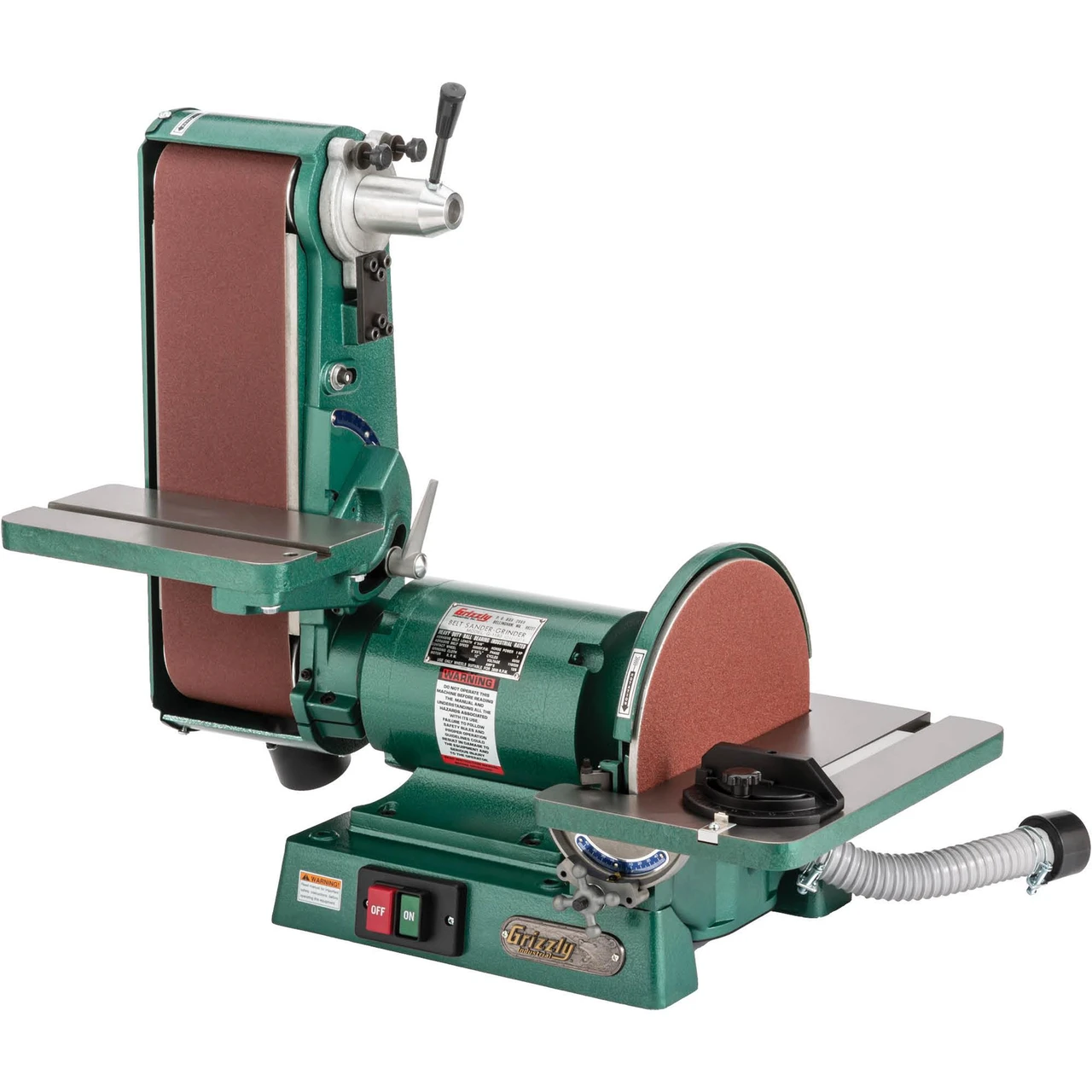

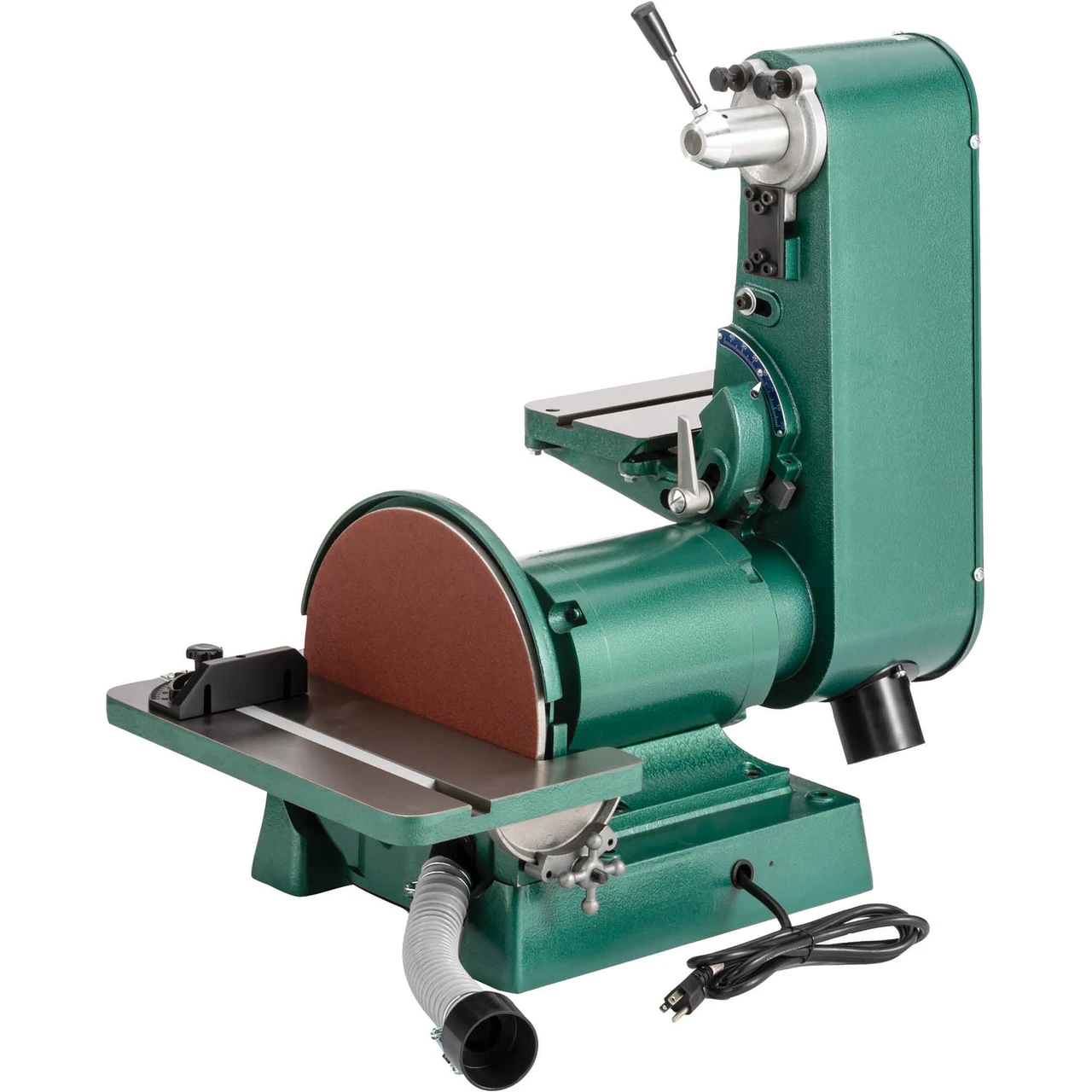

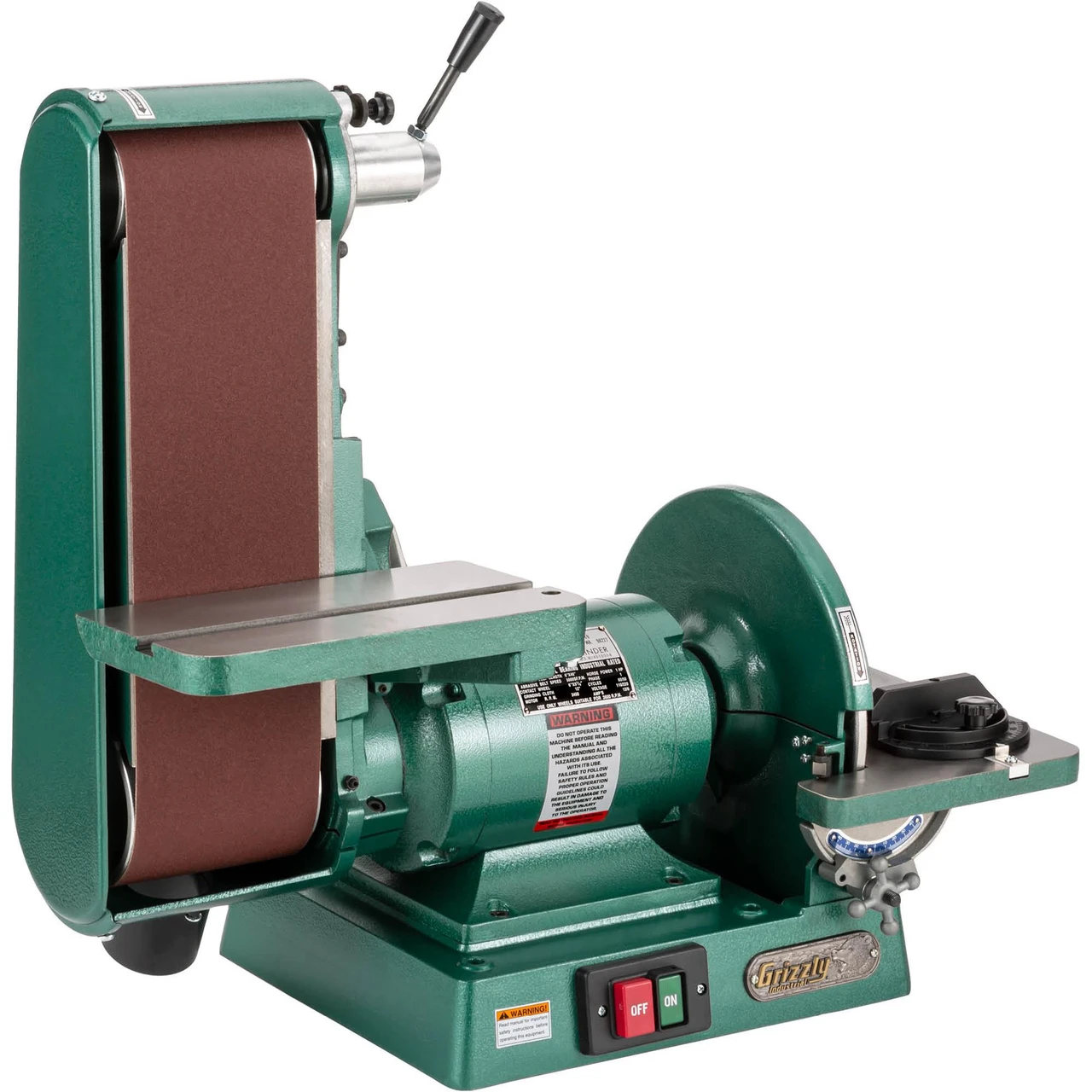

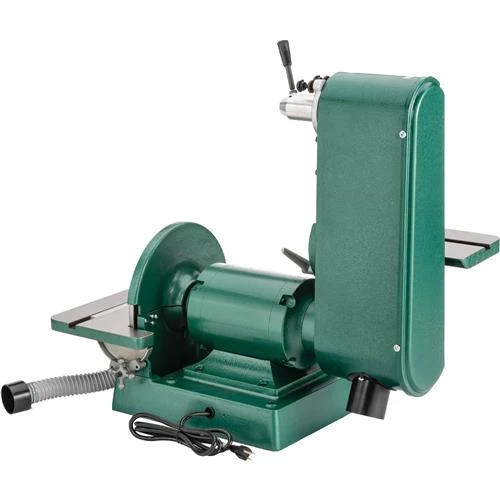

Grizzly Industrial 6" x 48" Belt/12" Disc Combo Sander, 3450 RPM (G1183)

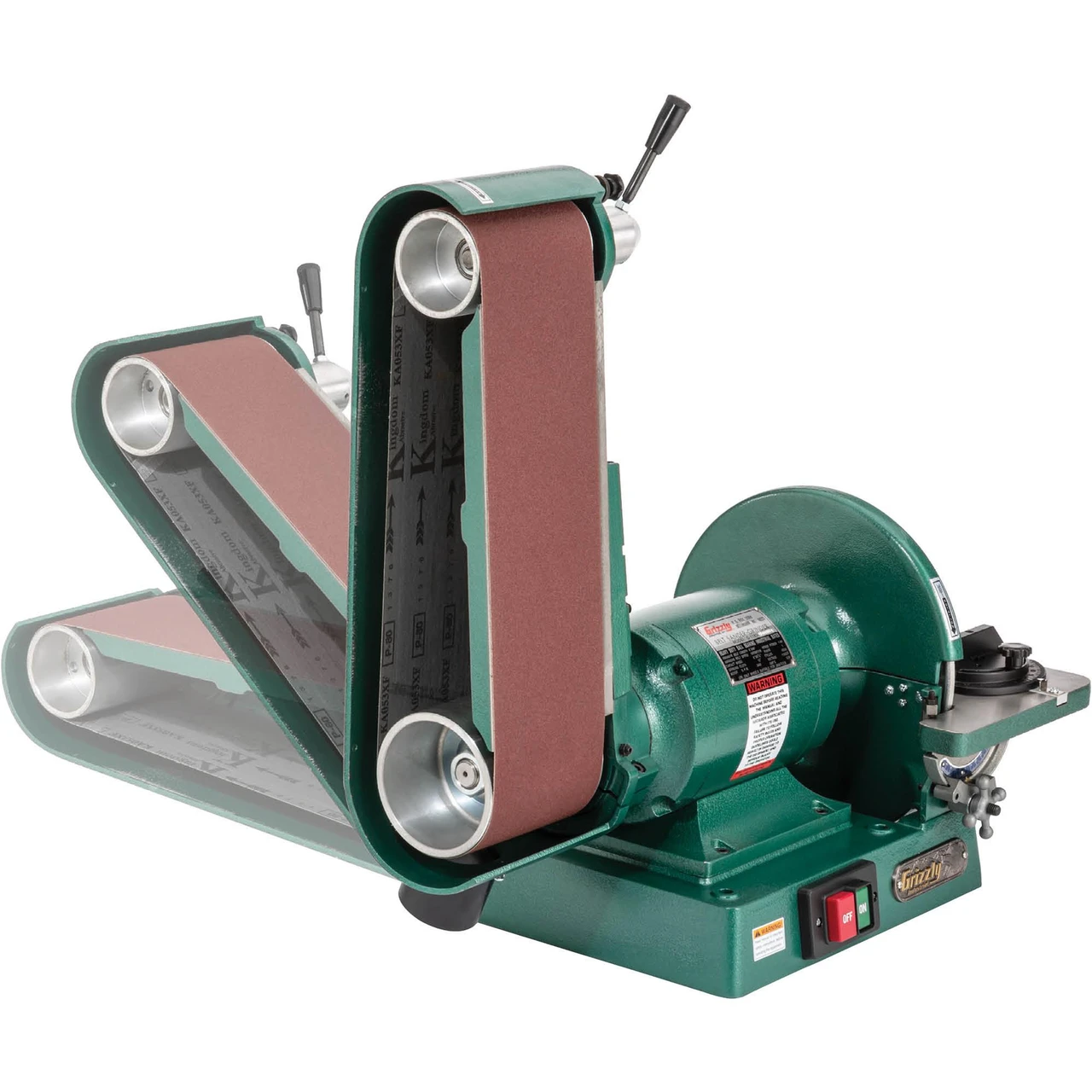

Grizzly Industrial 6" x 48" Belt/12" Disc Combo Sander, 3450 RPM (G1183) is built to handle both woodworking and metalworking projects with precision and ease. The belt operates horizontally, vertically, or at any angle in between, while the 12" disc provides additional versatility for a wide range of sanding tasks.
Equipped with a 1 HP motor, the belt sander operates at 5000 FPM, and the disc rotates at 3450 RPM, ensuring efficient material removal. Both the belt and disc feature tilting cast-iron tables, with positive stops at key angles for accuracy.
Specifications and Dimensions
Motor: 1 HP, 110V/220V (prewired for 110V), single-phase, 12A/6A
Sanding belt size: 6" x 48"
Sanding belt speed: 5000 FPM
Belt platen size: 6" x 14-1/2"
Belt table size: 7" x 12-1/2"
Disc diameter: 12"
Disc backing type: PSA
Disc speed: 3450 RPM
Disc table size: 7" x 16-1/2"
Table tilt: 30° L, 45° R
Number of dust ports: 2
Dust port sizes: 2-1/2", 3"
Footprint: 17" x 14"
Overall dimensions: 32-1/2" W x 16-1/2" D x 29-1/2" H
Key Features and Benefits
Tilting cast-iron tables with positive stops for precision
Quick-release lever for effortless belt changes
Disc table features positive stops at 90°
Belt table has positive stops at 45° and 90°
Includes a miter gauge for precision sanding
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G1183
