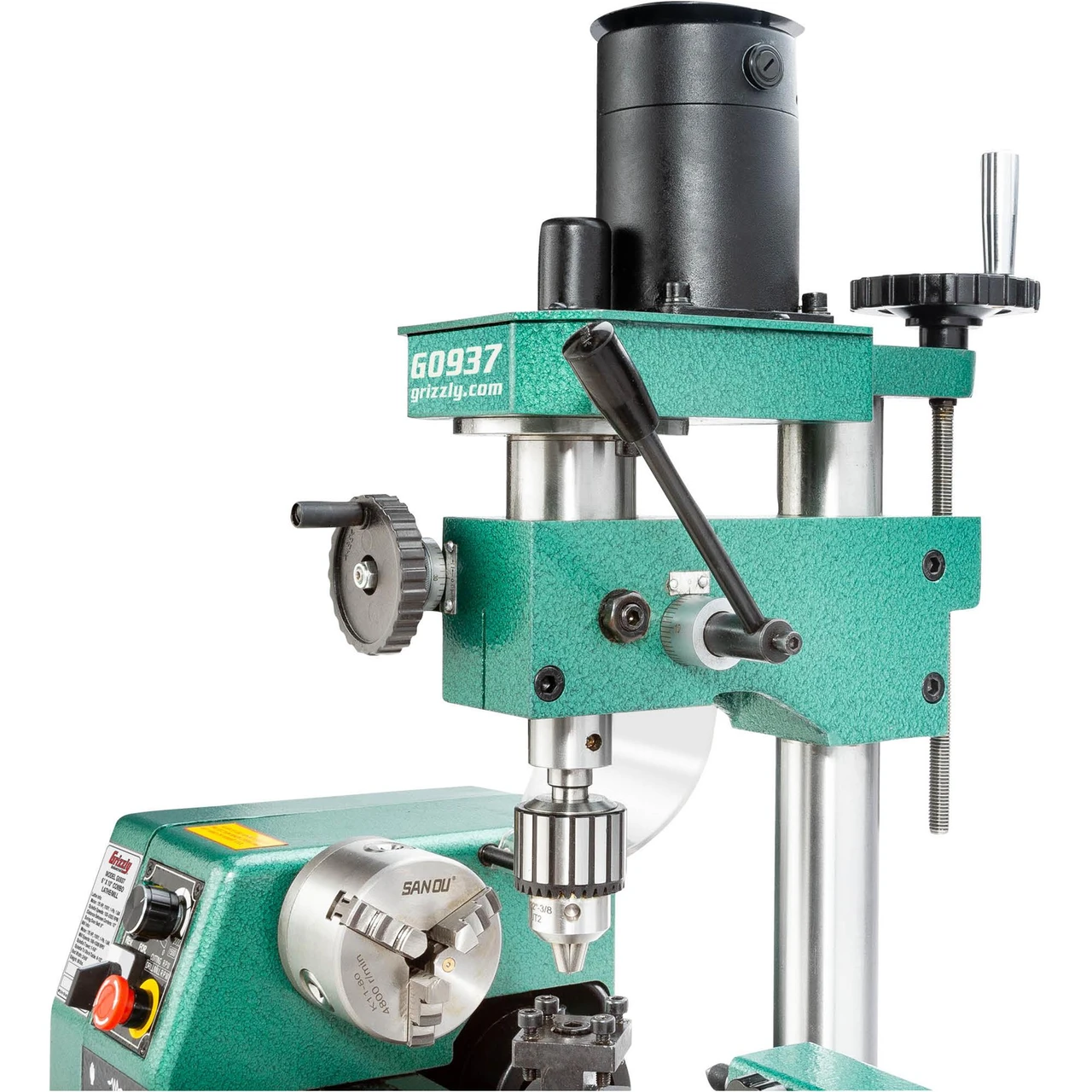

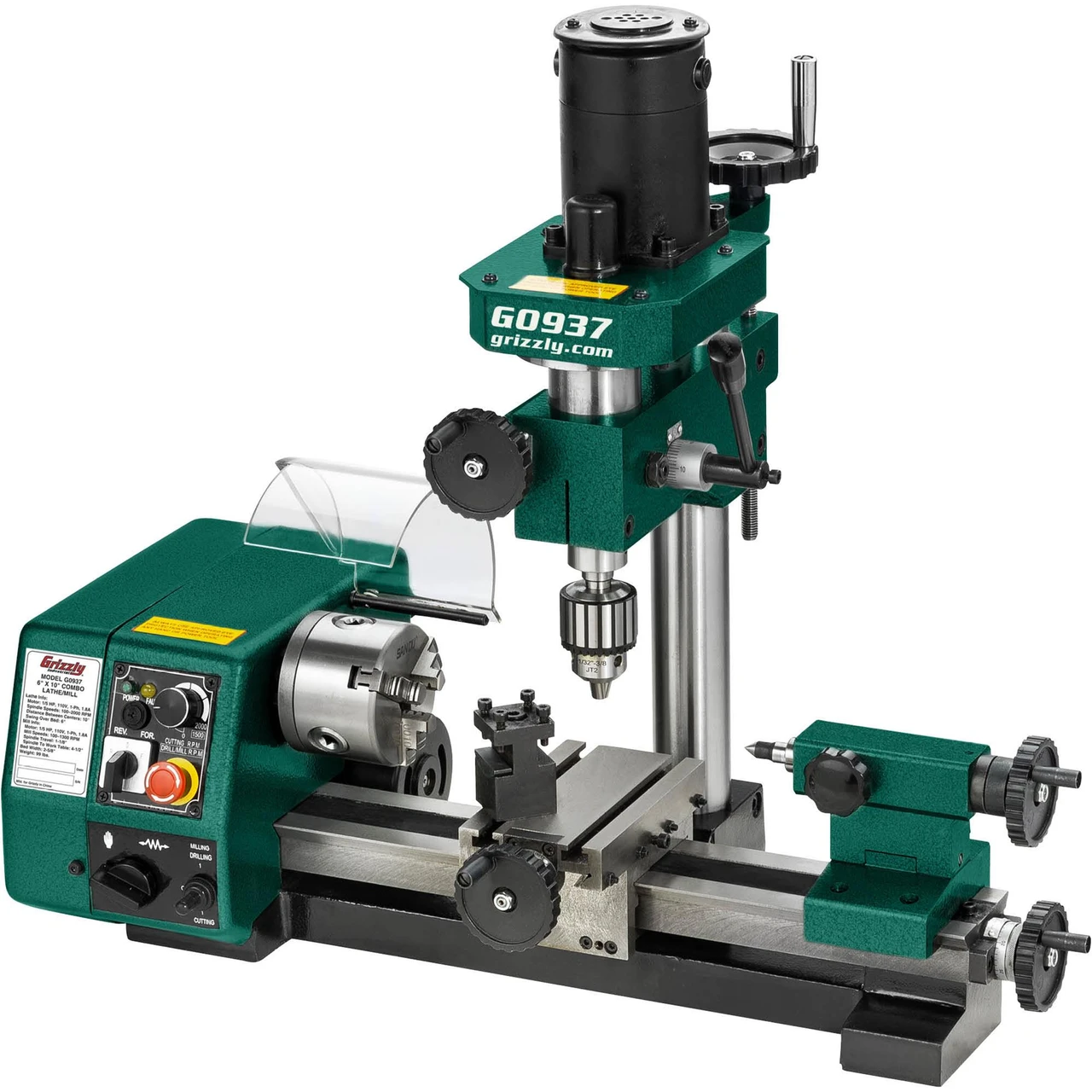

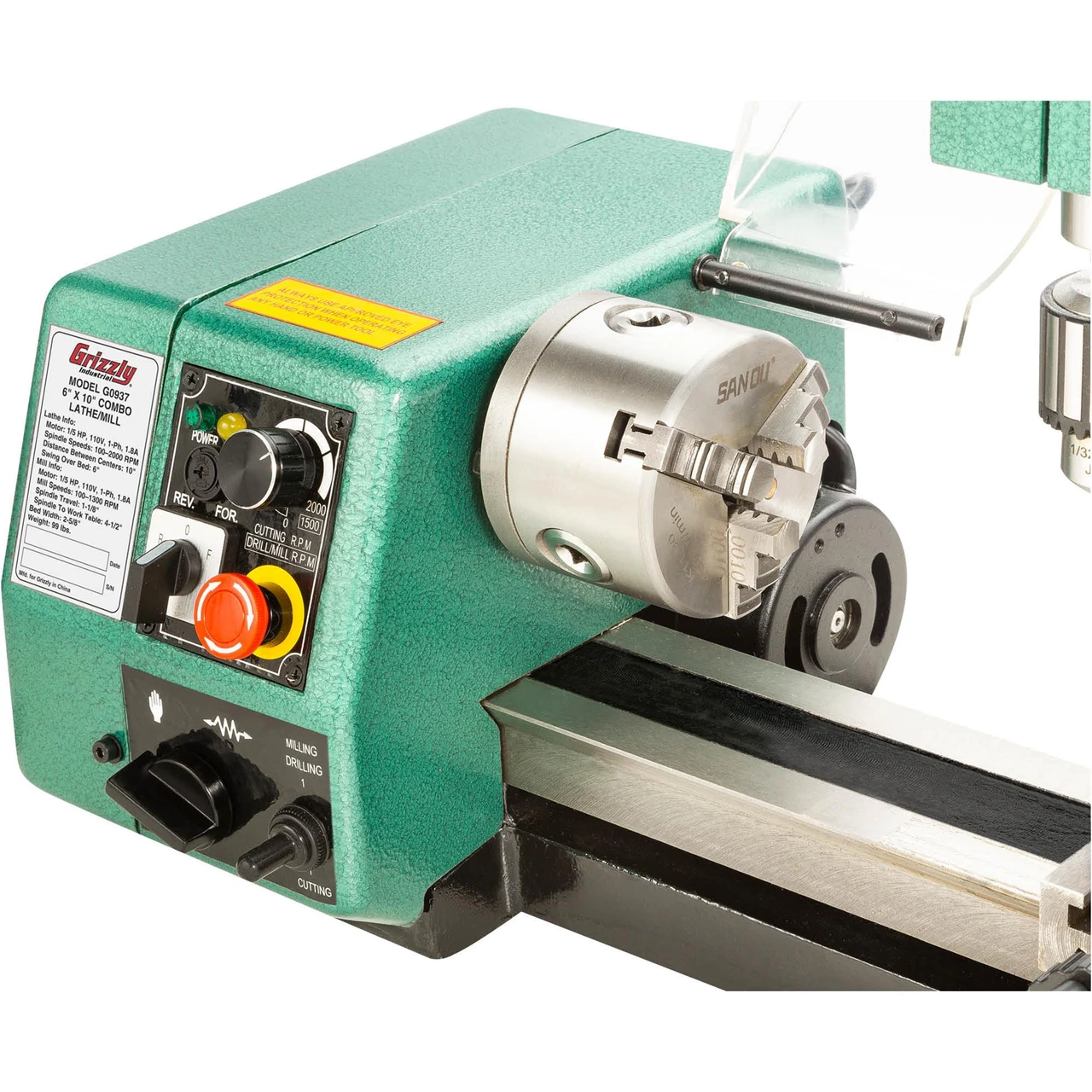

Grizzly Industrial 6" x 10" Combo Lathe/Mill (G0937)
Grizzly Industrial 6" x 10" Combo Lathe/Mill (G0937) is a versatile machine perfect for precision machining projects. With variable-speed spindles and a dual cross slide mill table, this tool is designed to handle a variety of metalworking tasks with ease.
This combination lathe/mill is equipped with precision-ground cast-iron components, offering durability and stability. Featuring fine-feed clutches, adjustable speeds, and a T-slotted table, it’s an ideal choice for drilling, threading, and milling. Compact yet powerful, it is perfect for hobbyists and professionals alike.
Specifications and Dimensions
Lathe swing over bed: 6"
Lathe swing over cross slide: 3"
Distance between centers: 10"
Lathe spindle speed: Variable, 100–2000 RPM
Lathe spindle taper: MT#2
Tailstock taper: MT#1
Tailstock quill travel: 1"
Mill spindle speed: Variable, 100–1300 RPM
Mill spindle taper: MT#2
Table dimensions: 3-1/2" x 5-1/2"
Drilling capacity: 3/8" (steel)
Main motor (lathe & mill): 1/5 HP, 110V, single-phase, 1.8A
Overall dimensions: 24-1/2" W x 21" D x 22-1/2" H
Key Features and Benefits
Variable-speed spindles for precise control
Precision-ground cast-iron bed for stability
Dual cross slide mill table for versatility
Push/pull fine-feed clutch with handwheel
Compact design perfect for small workspaces
Compatible with MT#2 tooling for flexibility
Includes 3-jaw chuck and turret tool post
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G0937
