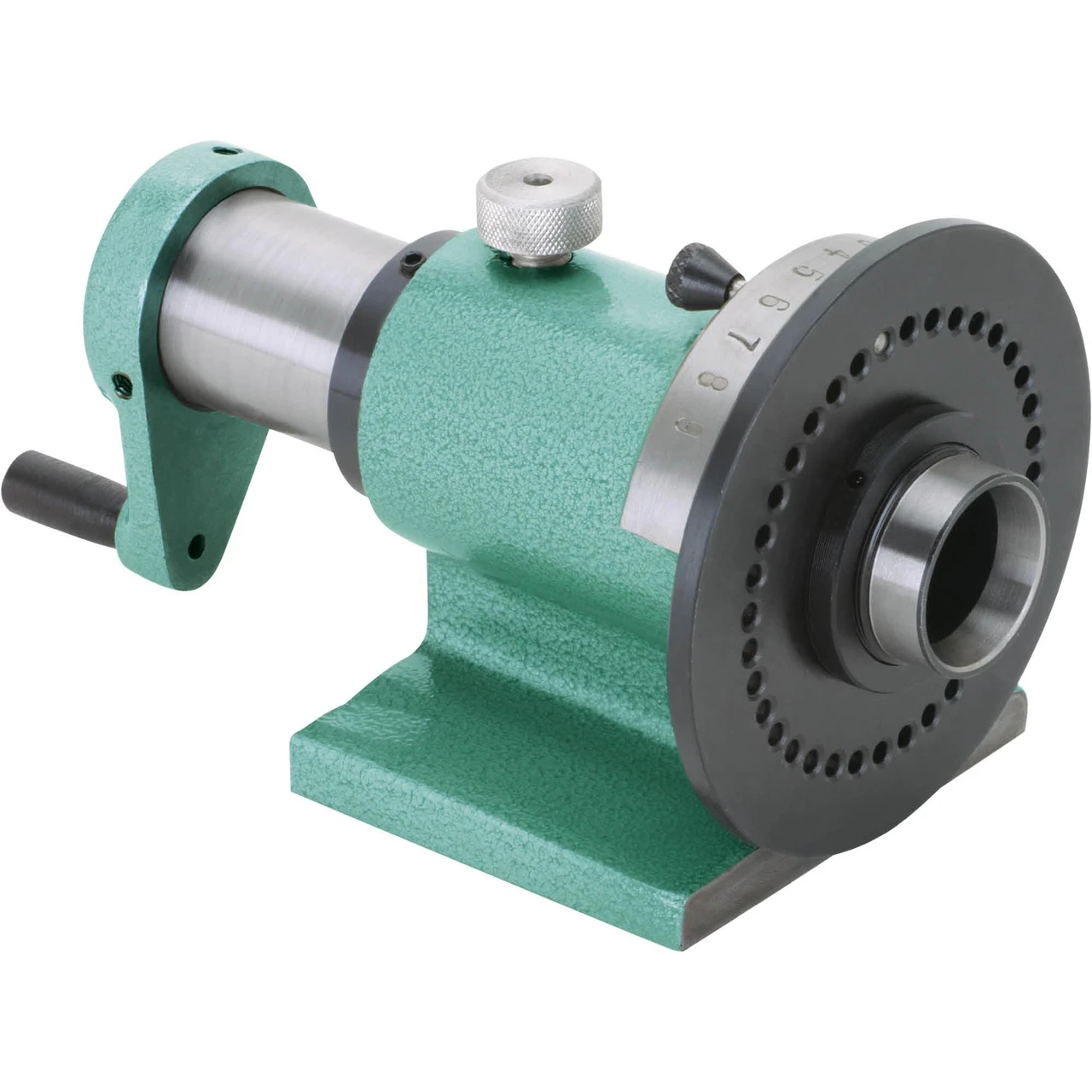

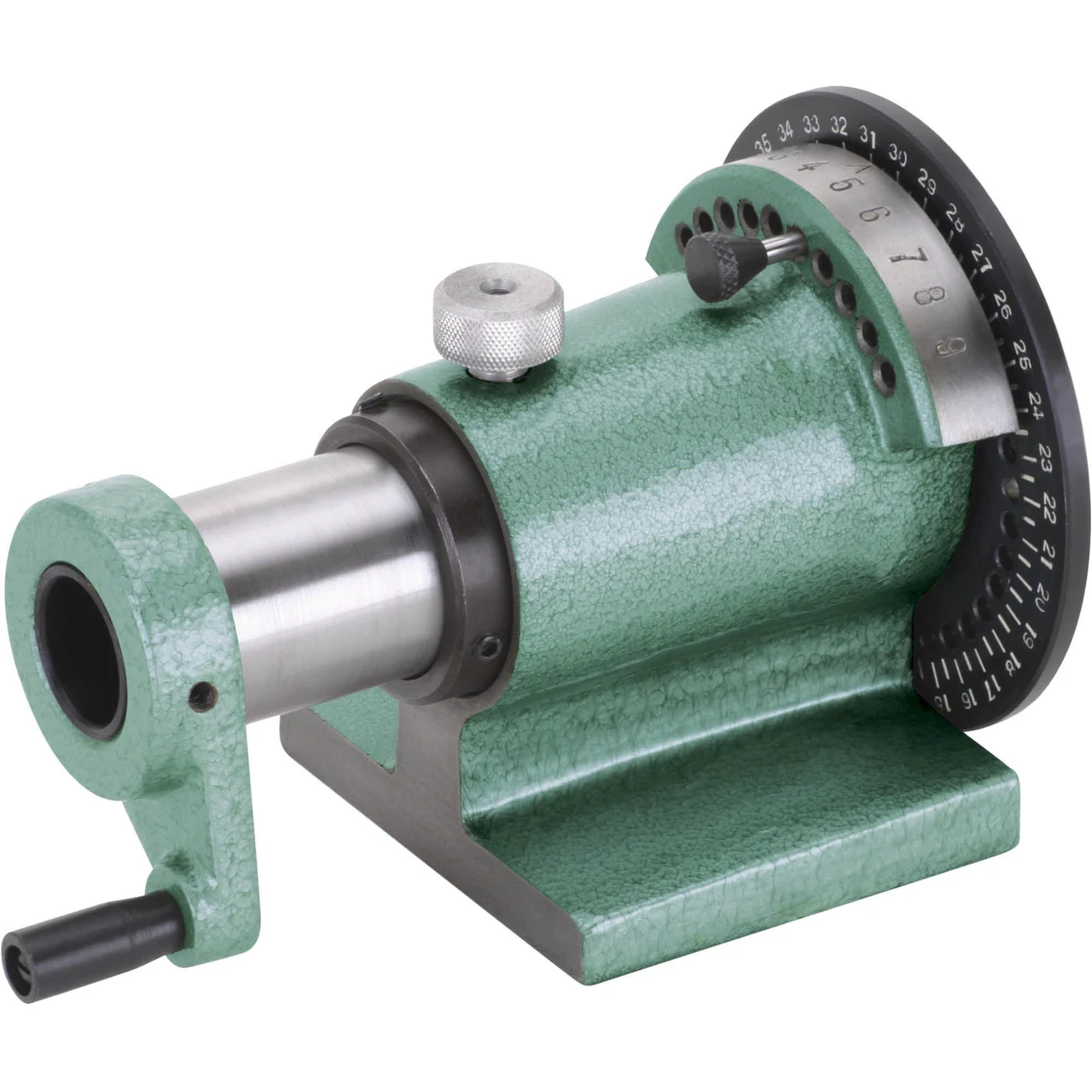

Grizzly Industrial 5-C Spin Index Tool (G5649)
Equipped with a 36-hole indexing plate and 10 vernier holes, the tool allows for indexing to 1-degree increments, ensuring precise positioning and repeatability. The hardened and ground-locking spindle offers 2-1/16 inches of travel for secure operation.
Specifications and Dimensions
Collet capacity: Accepts 5C collets up to 1-1/8 inch
Indexing plate: 36 holes with 10 vernier holes
Spindle travel: 2-1/16 inches
Spindle: Hardened and ground-locking spindle
Usage: Forming, grinding, and inspecting cutting tools
Key Features and Benefits
Accepts 5C collets for versatile applications
36-hole indexing plate enables 1-degree precision indexing
Traveling spindle and collar enhance control and accuracy
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G5649
