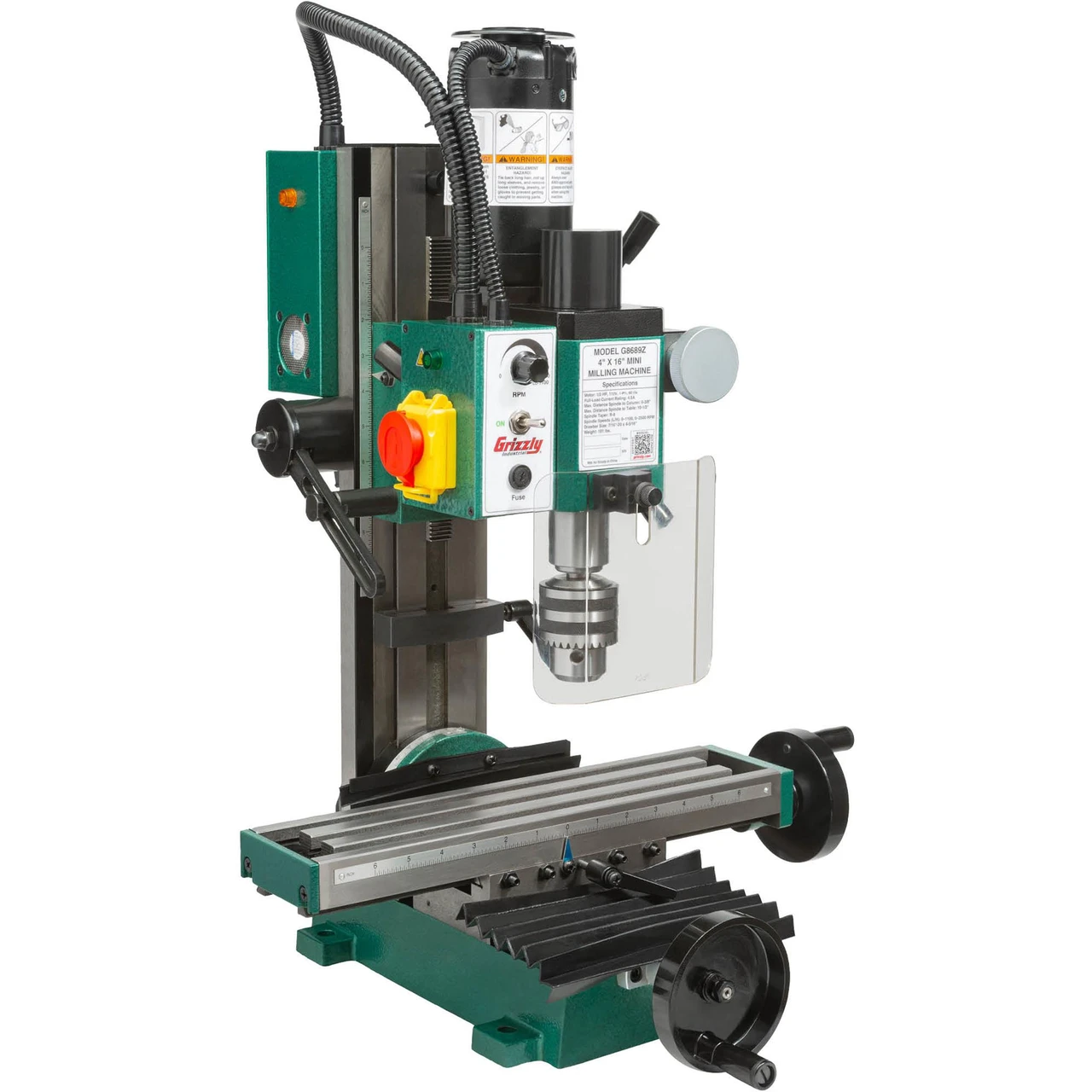

Grizzly Industrial 4" x 16" Mini Milling Machine (G8689Z)
Grizzly Industrial 4" x 16" Mini Milling Machine (G8689) combines compact design and exceptional functionality to handle a variety of small-scale milling tasks. This versatile machine is equipped with a powerful 350W motor, offering variable-speed control for precise operations ranging from drilling to face milling.

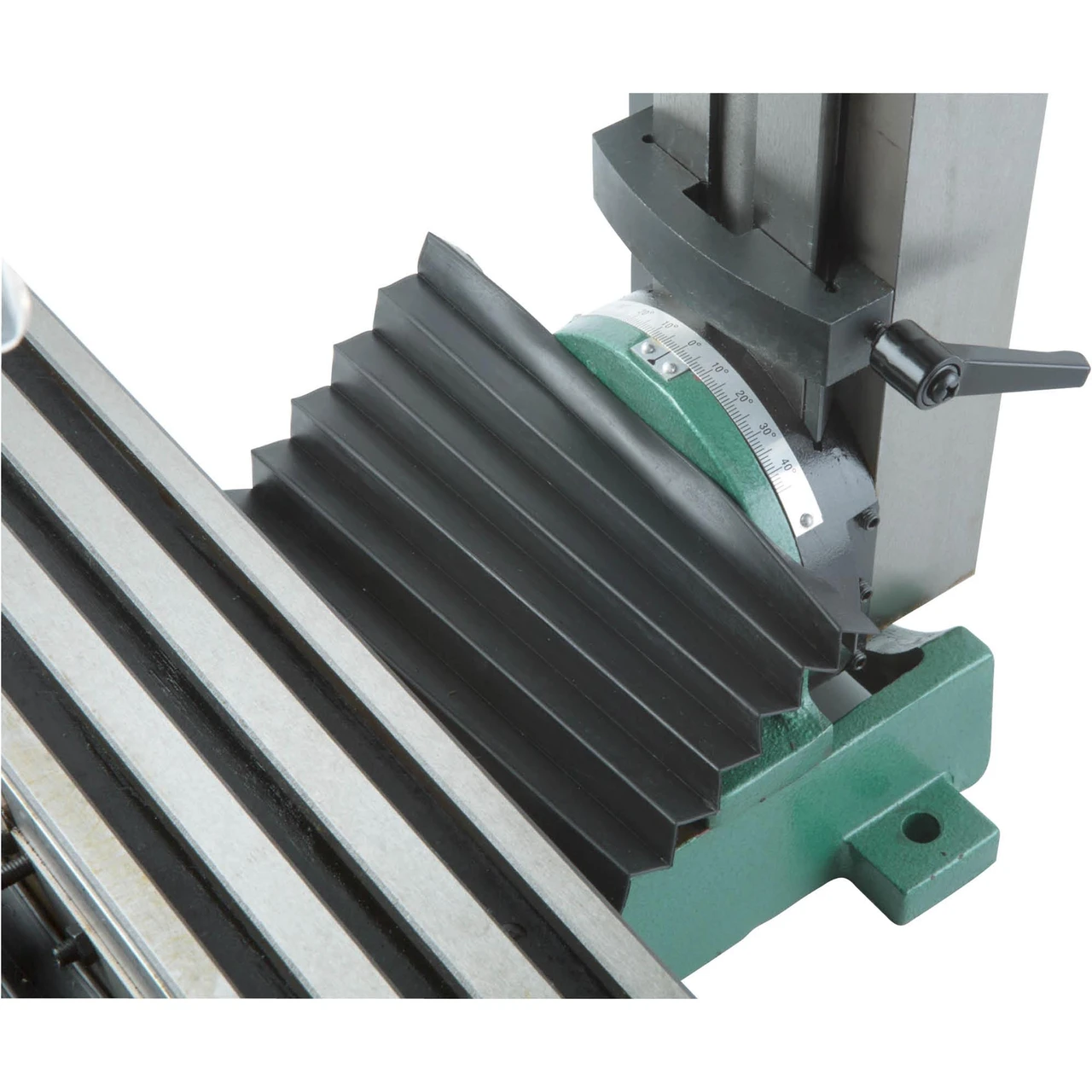

This milling machine features a two-speed gear drive with a high-speed range of up to 2500 RPM, allowing you to customize operations based on your project needs. The adjustable headstock tilts 45° left or right, while the fine feed head control ensures micrometer-level adjustments.
Specifications and Dimensions
Motor: 350W, 110V, single-phase, 4.5A
Spindle taper: MT #3
Spindle speeds: Variable, 0–2500 RPM
Table size: 3-5/8" x 15-3/4"
Table travel (longitudinal): 7-5/16"
Table travel (cross): 4"
Head tilt: 45° L/R
Drilling capacity: 1/2" mild steel
End milling capacity: 1/2"
Face milling capacity: 1"
Overall size: 20" W x 20" D x 30-1/4" H
Key Features and Benefits
Compact design for small workshops or home use
Variable-speed spindle control for enhanced precision
Tilting headstock for angled milling up to 45°
Fine feed control for micrometer adjustments
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G8689Z
