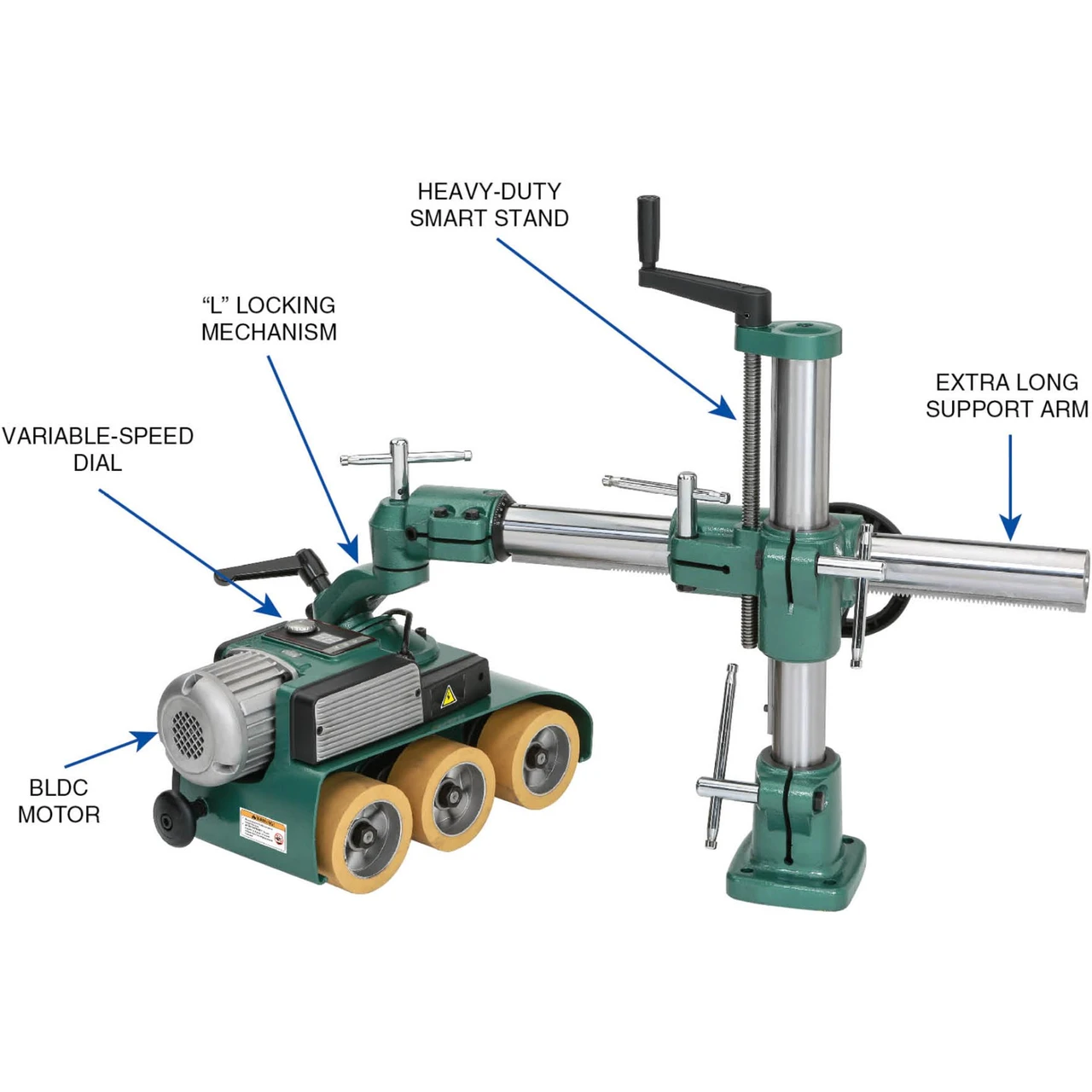

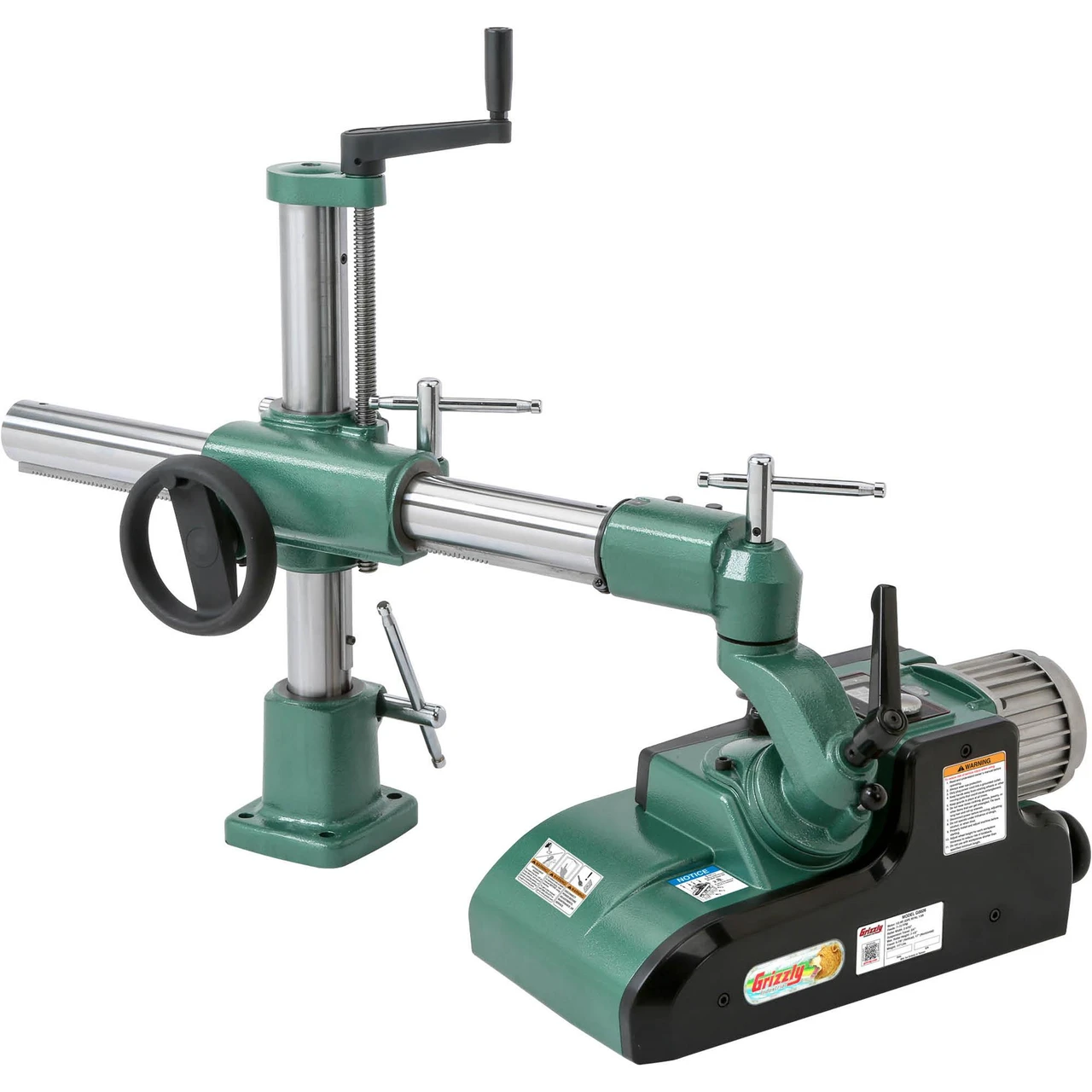

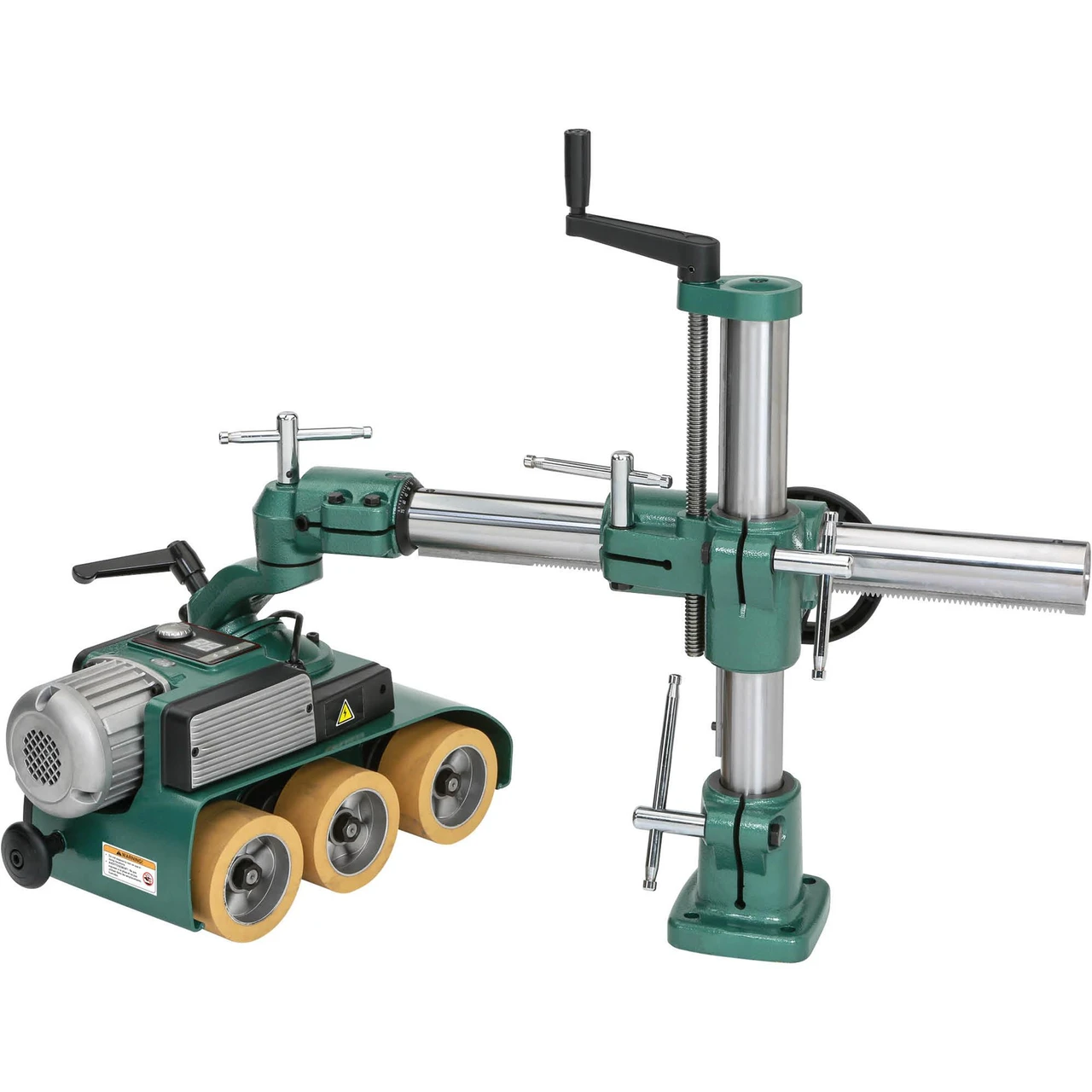

Grizzly Industrial 2/3 HP 3 Roller Variable-Speed Power Feeder (G0826)
Grizzly Industrial 2/3 HP 3 Roller Variable-Speed Power Feeder (G0826) is the ultimate solution for smooth and precise feeding in demanding woodworking tasks. Featuring a powerful BLDC motor, it delivers energy-efficient, high-torque performance with variable speed control ranging from 7–72 FPM.
Equipped with a "smart stand" and durable ductile-steel support columns, this feeder ensures stability and adaptability for vertical, horizontal, or angled feeding positions. Its advanced features, such as automatic thickness compensation and a clutch with a memory lock for quick repositioning, reduce downtime and maximize productivity.
Specifications and Dimensions
Motor: 2/3 HP, 220V, single-phase, 2.3A
Feed speed: Variable, 7–72 FPM
Vertical travel: 6-11/16"
Horizontal travel: 17"
Rotation: Forward and reverse
Minimum workpiece length: 6"
Rollers: (x3) 2-5/16" x 4-3/4"
Roller suspension: 3/4"
Maximum height of rollers: 7-1/2"
Overall size: 37-1/2" W x 20-1/2" D x 29-1/2" H
Key Features and Benefits

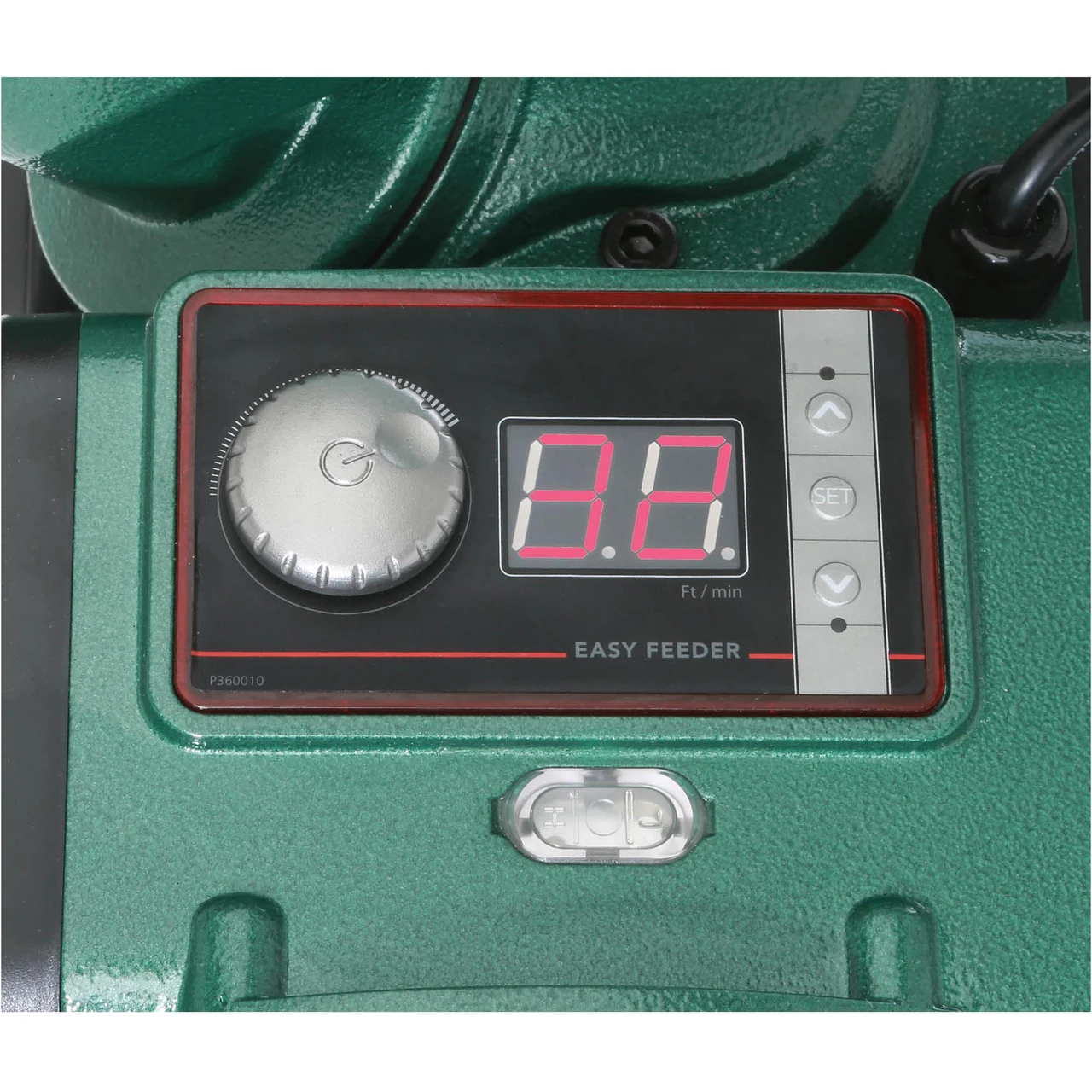

Variable-speed control from 7–72 FPM for precision feeding
360° swing and adjustable X-, Y-, and Z-axis positioning
Smart stand with ductile-steel columns for stability
Automatic roller-spring thickness compensation up to 3/4"
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G0826
