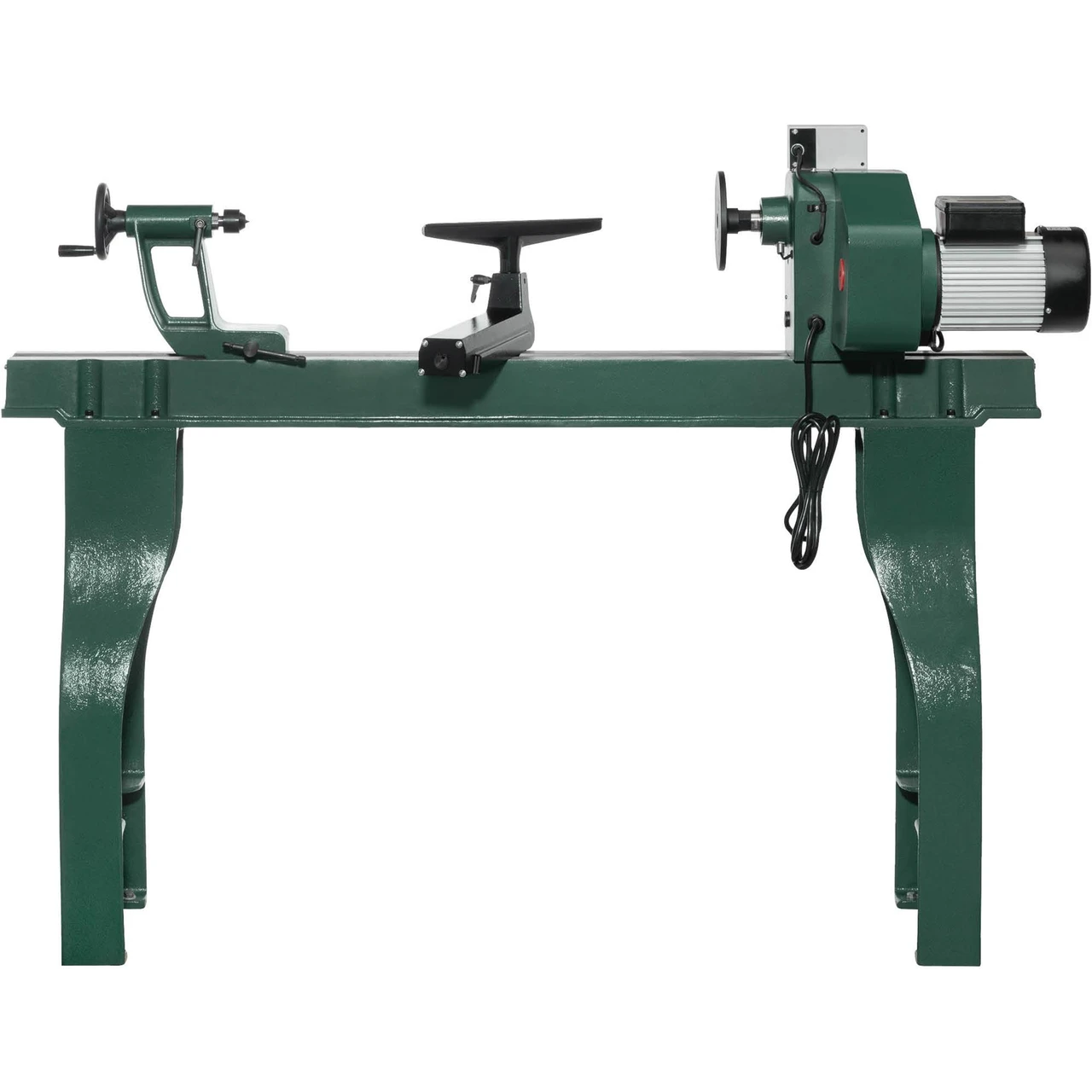

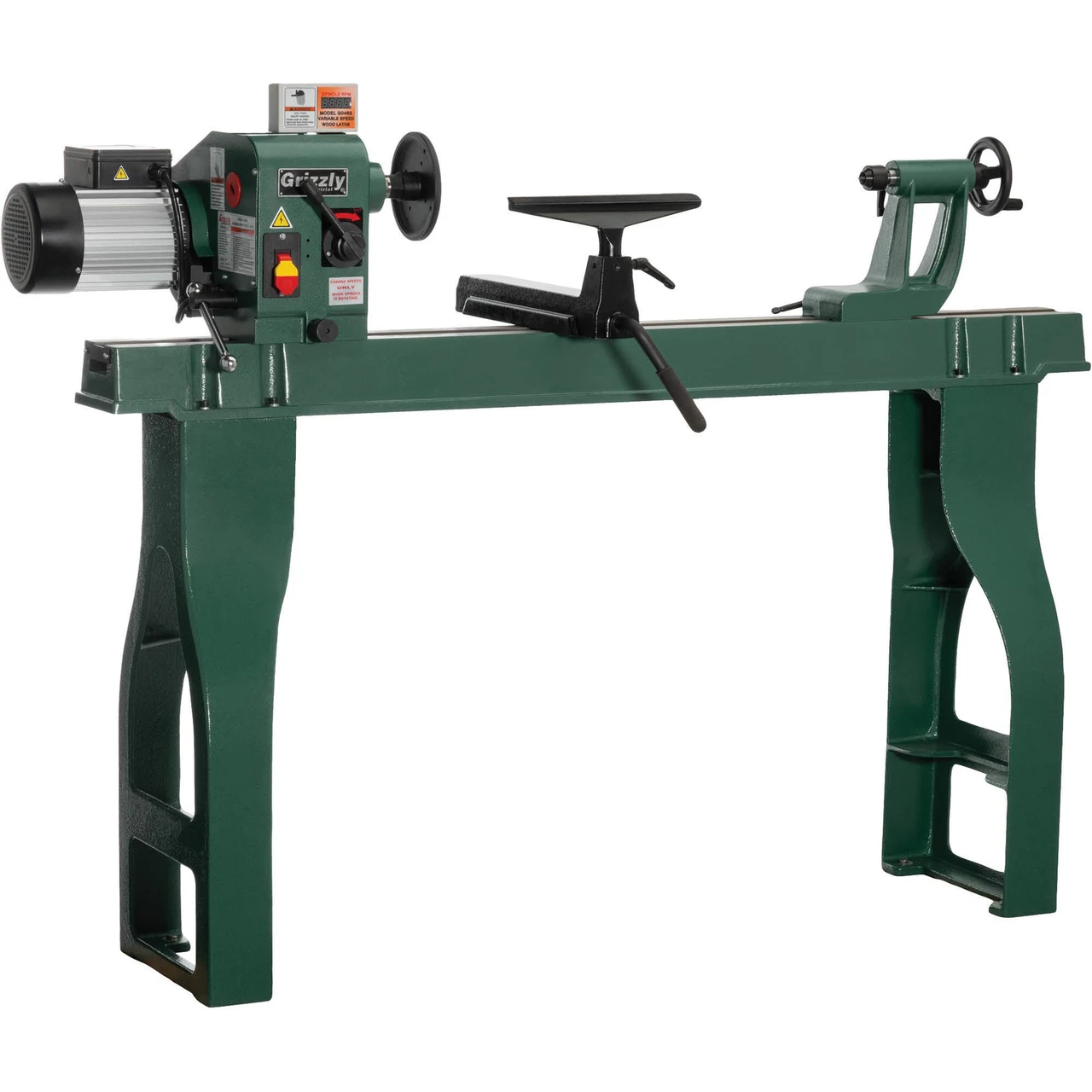

Grizzly Industrial 16" x 46" Wood Lathe with DRO (G0462)
The lathe features a heavy-duty cast-iron bed and legs to reduce vibration, along with a digital readout for precise RPM adjustments. Its 0° to 180° headstock rotation and quick lock/release levers enhance versatility, making it ideal for turning intricate designs and large workpieces up to 46 inches in length.
Specifications and Dimensions
Motor: 2 HP, 110V, single-phase, 14A
Swing over bed: 16"
Swing over tool rest: 12"
Distance between centers: 46"
Spindle taper: MT#2
Spindle thread size: 1" x 8 TPI RH
Tailstock taper: MT#2
Spindle speeds: Variable, 600-2400 RPM
Headstock rotation: 0°, 60°, 90°, 120°, and 180°

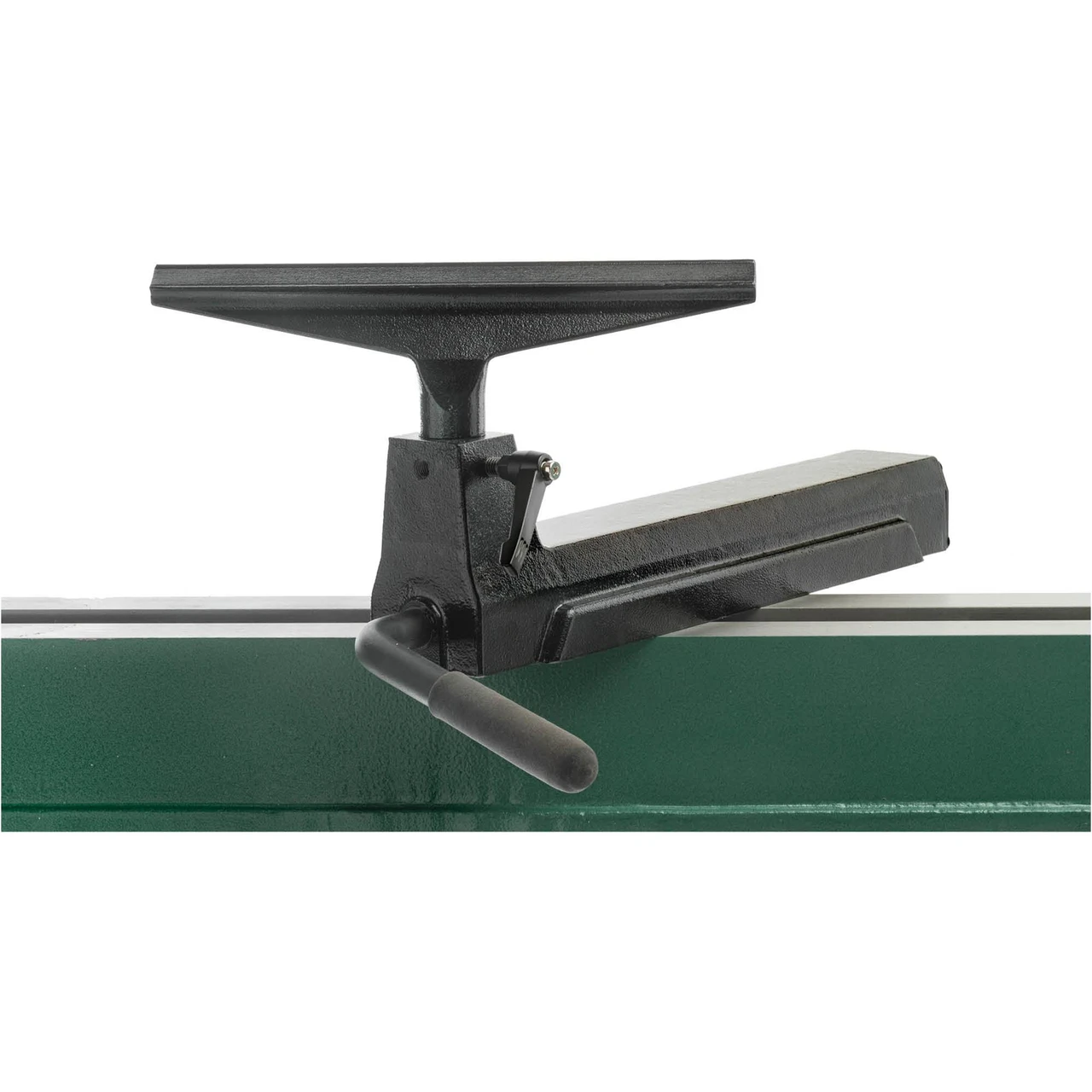

Tool rest width: 11-3/4"
Tool rest post length: 3"
Tool rest post height: 2-1/8"
Overall dimensions: 72-1/2" W x 19" D x 48" H
Key Features and Benefits

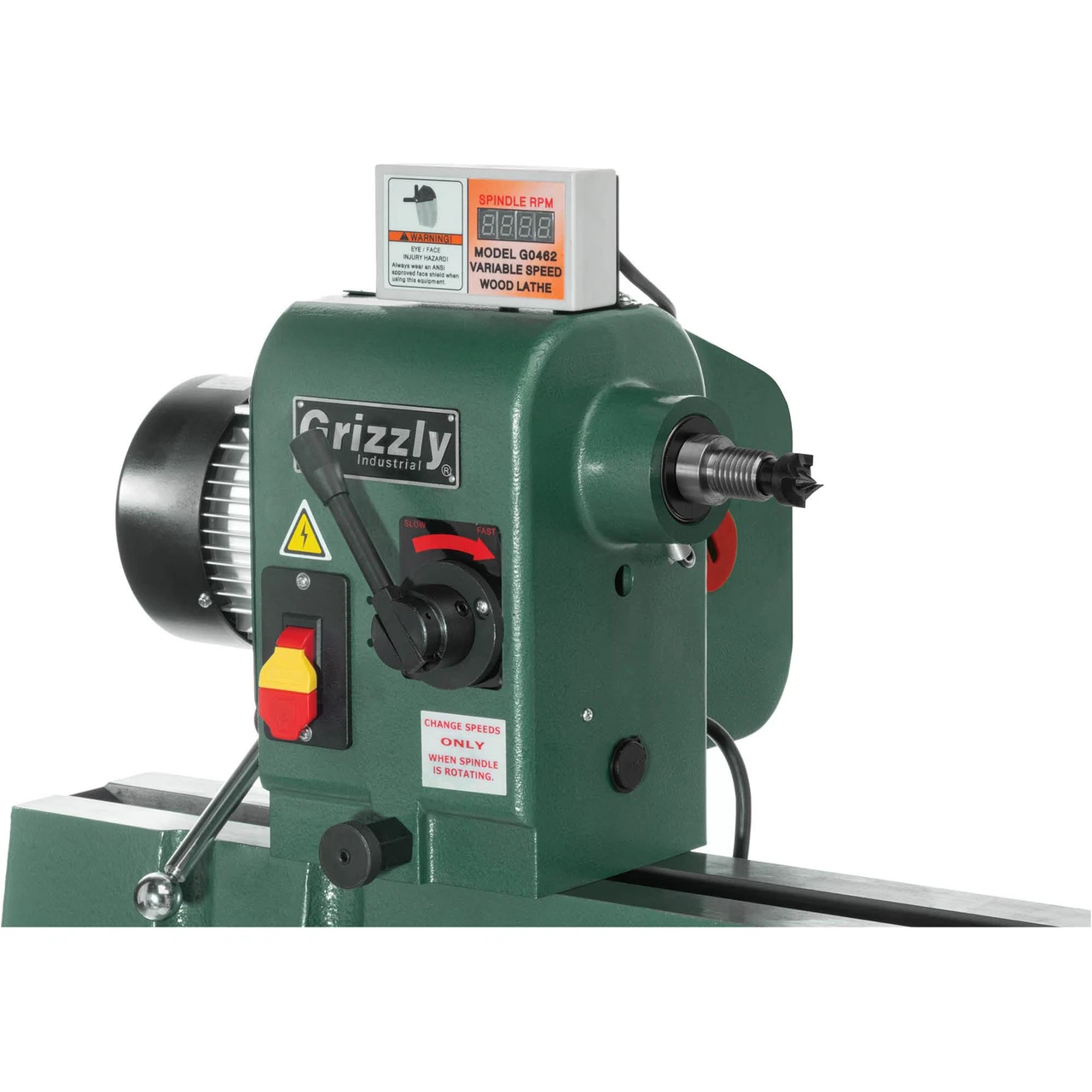

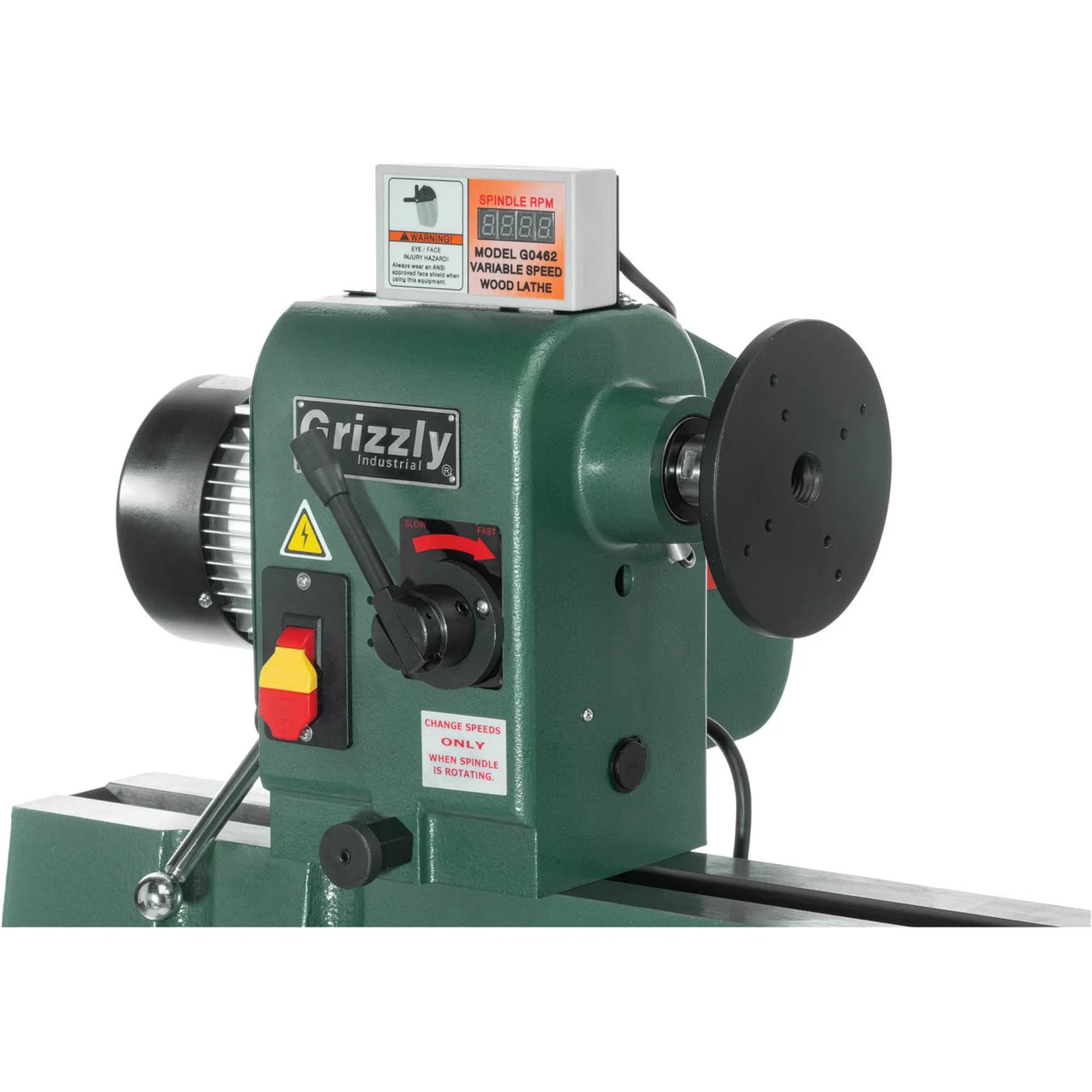

Digital readout for accurate spindle RPM adjustments
0° to 180° headstock rotation for enhanced versatility
Quick lock and release levers for easy adjustments
Heavy-duty cast-iron bed and legs for stability
Precision-ground design minimizes vibration
Ideal for large workpieces up to 46 inches in length
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G0462
