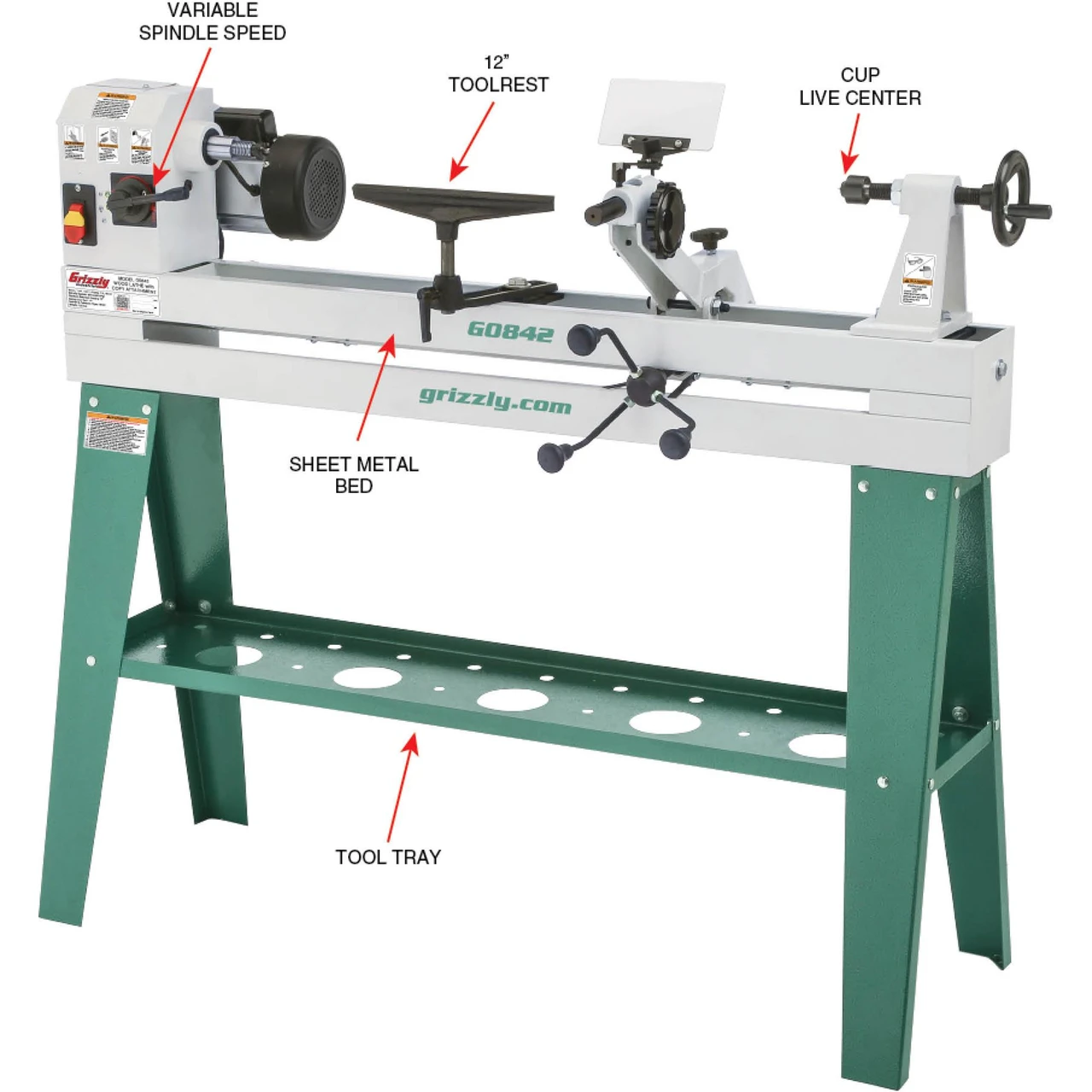

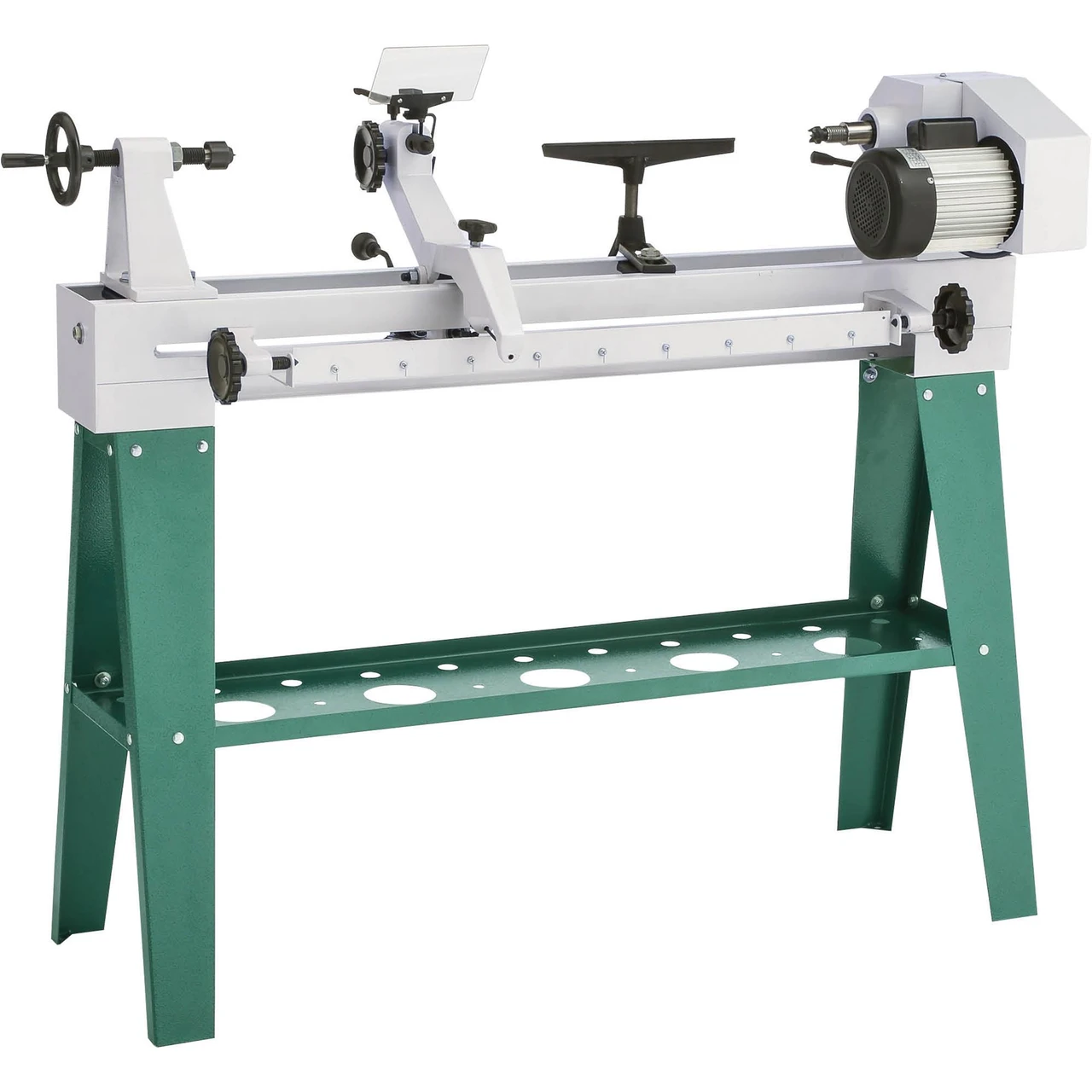

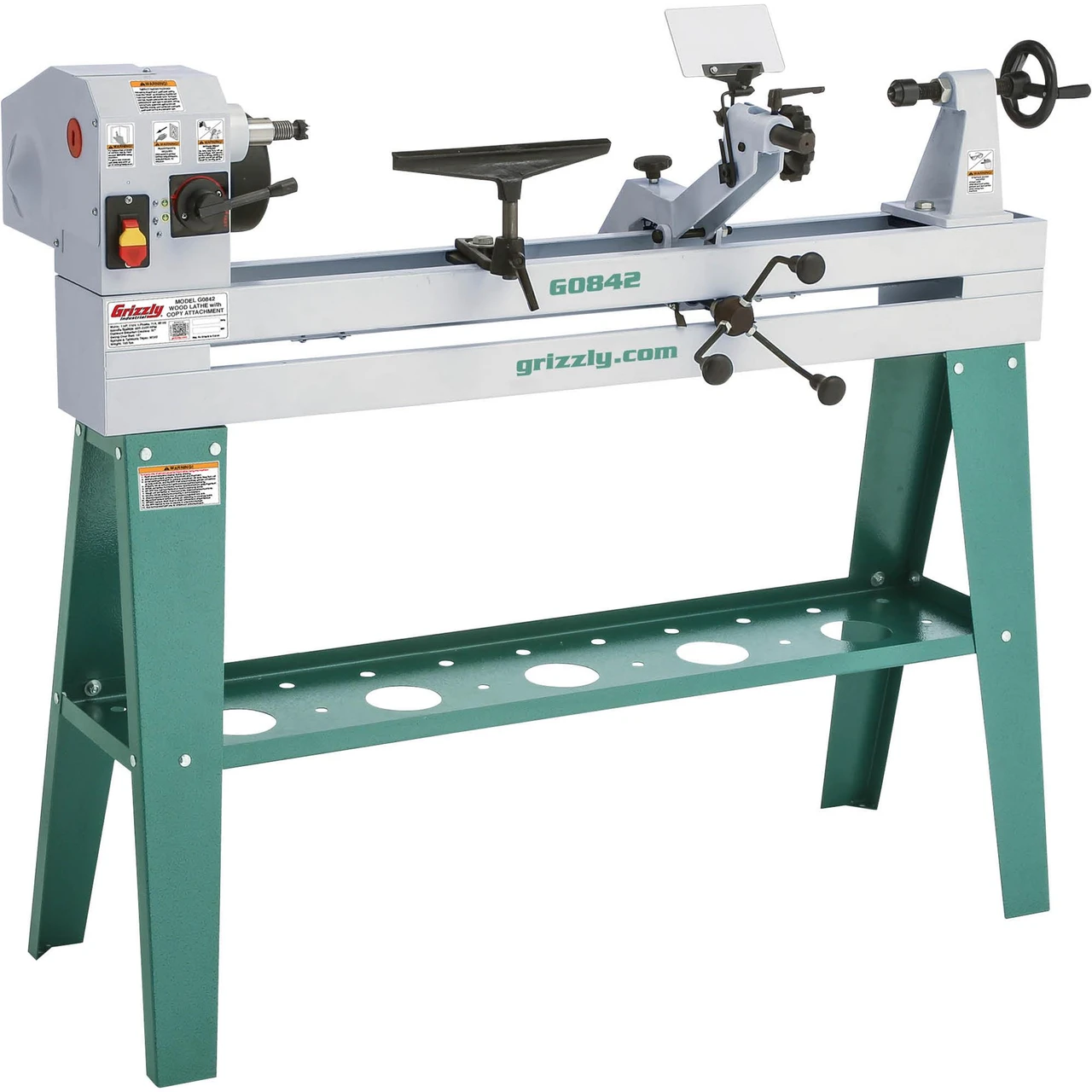

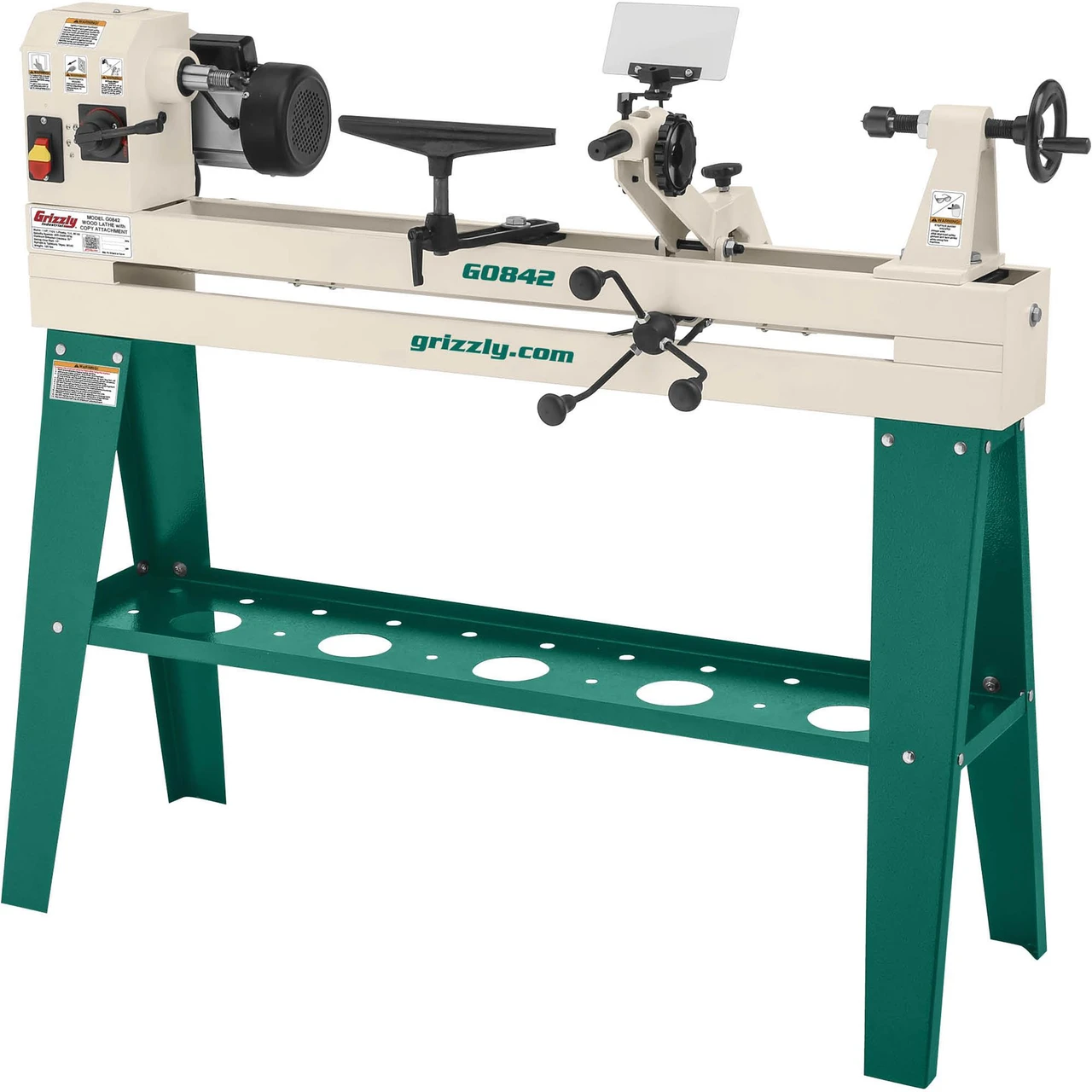

Grizzly Industrial 14" x 37" Wood Lathe w/ Copy Attachment (G0842)
Grizzly Industrial 14" x 37" Wood Lathe w/ Copy Attachment (G0842) is the perfect solution for hobbyists and small furniture makers. Designed for precision and versatility, this lathe features a 3/4 HP motor with ten spindle speeds ranging from 600–2400 RPM, allowing you to handle various woodworking projects effortlessly.

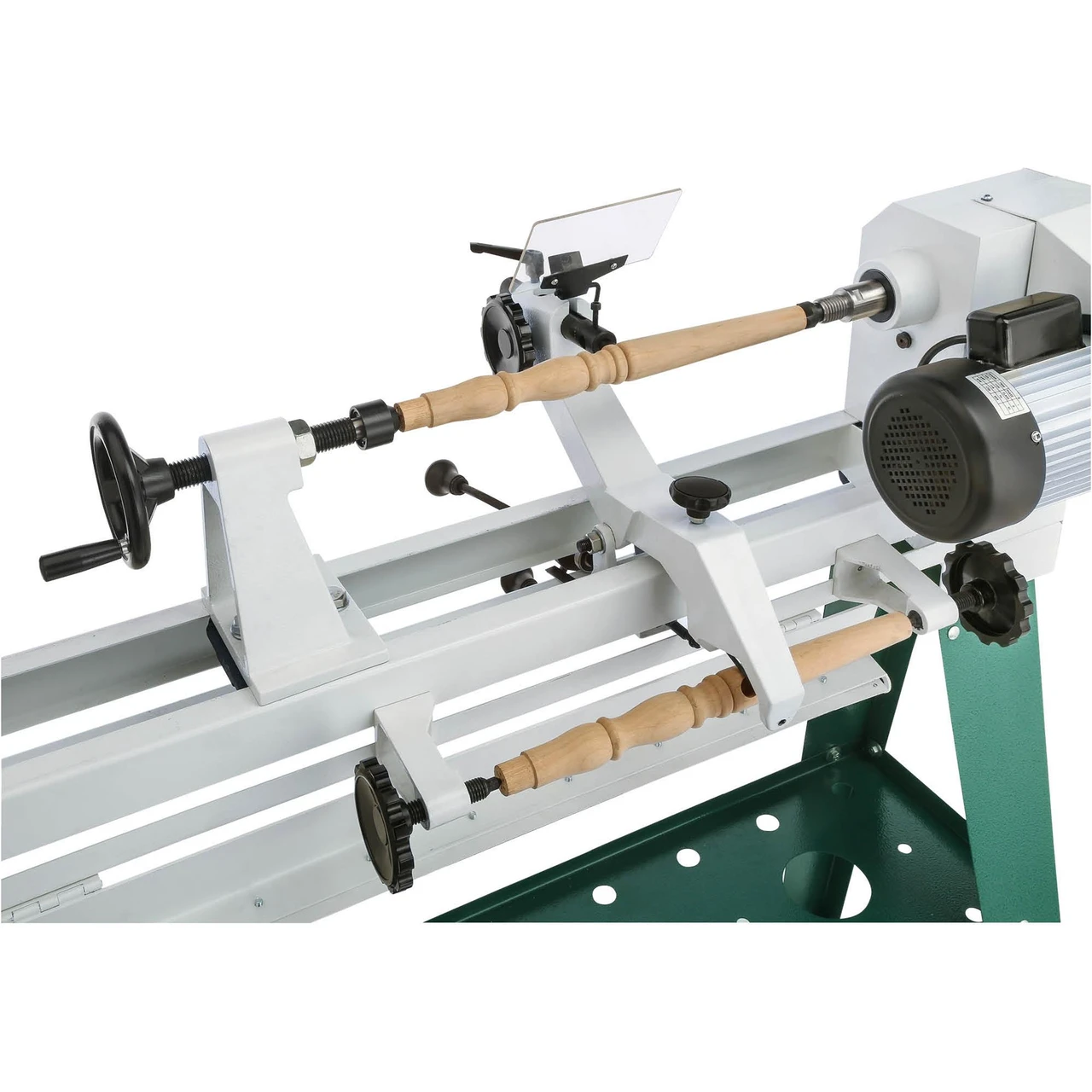

The built-in copy attachment lets you reproduce spindles, legs, or other workpieces up to 8" in diameter and 32" long with ease. This feature makes it an excellent choice for creating consistent stair spindles or table legs. The copy device can also be dropped out of the way for traditional turning operations, giving you full flexibility for bowls, plates, or free-form designs.
Specifications and Dimensions
Motor: 3/4 HP, 110V, single-phase, 11A
Swing over bed: 14"
Swing over tool rest base: 12"
Distance between centers: 37"
Distance between centers with copy device: 32"
Spindle speeds: 10, 600–2400 RPM
Spindle taper: MT#2
Spindle thread size: 1" x 8 TPI RH
Tailstock taper: MT#2
Tool rest width: 12"
Tool rest post diameter: 1"
Overall dimensions: 62" W x 24" D x 48" H
Key Features and Benefits
37" distance between centers for longer workpieces
14" swing over the bed for versatile turning applications
Adjustable 12" tool rest with easy sliding mechanism
Includes 6" faceplate, MT#2 live center, MT#2 spur center, knock-out tool, and tool rest
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G0842
