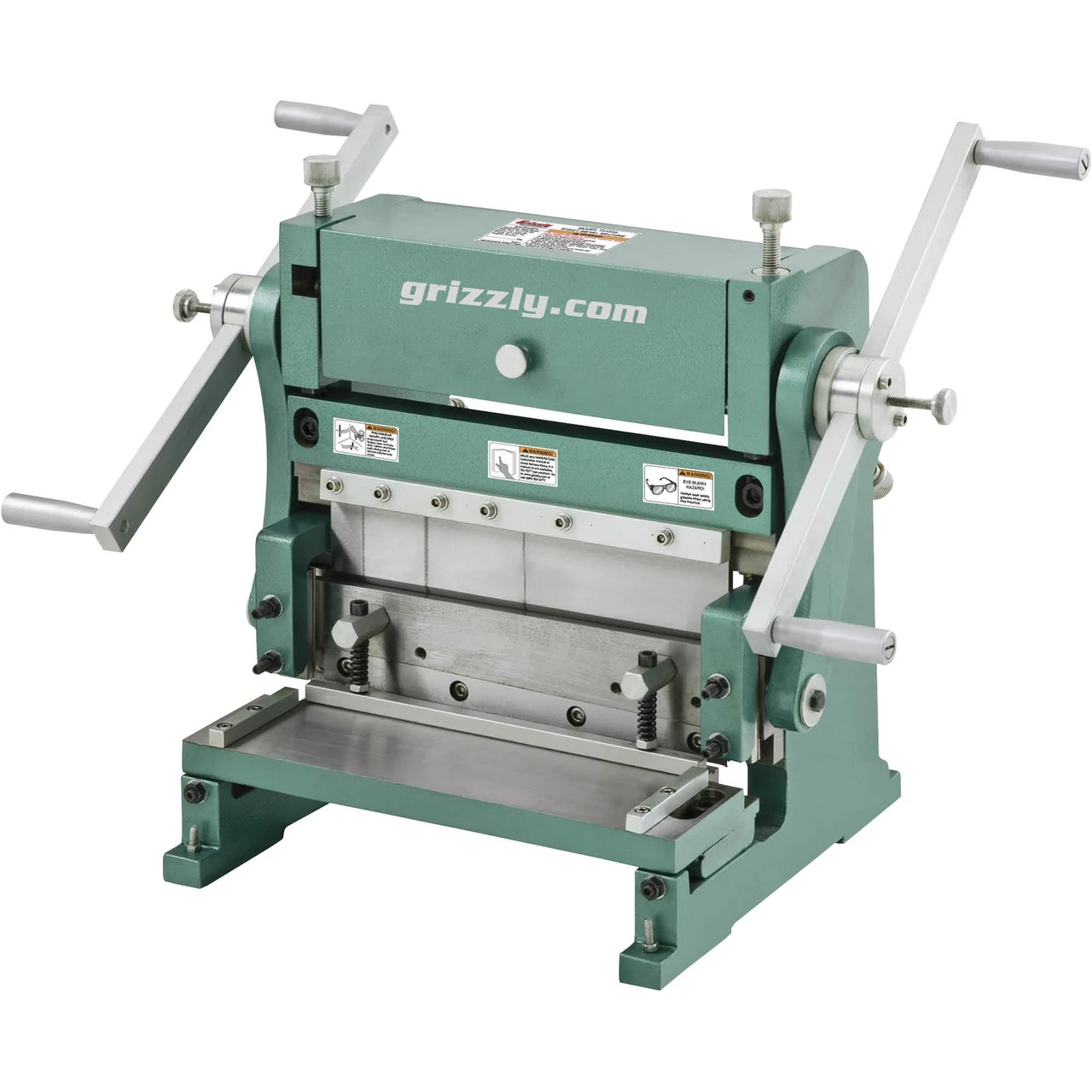

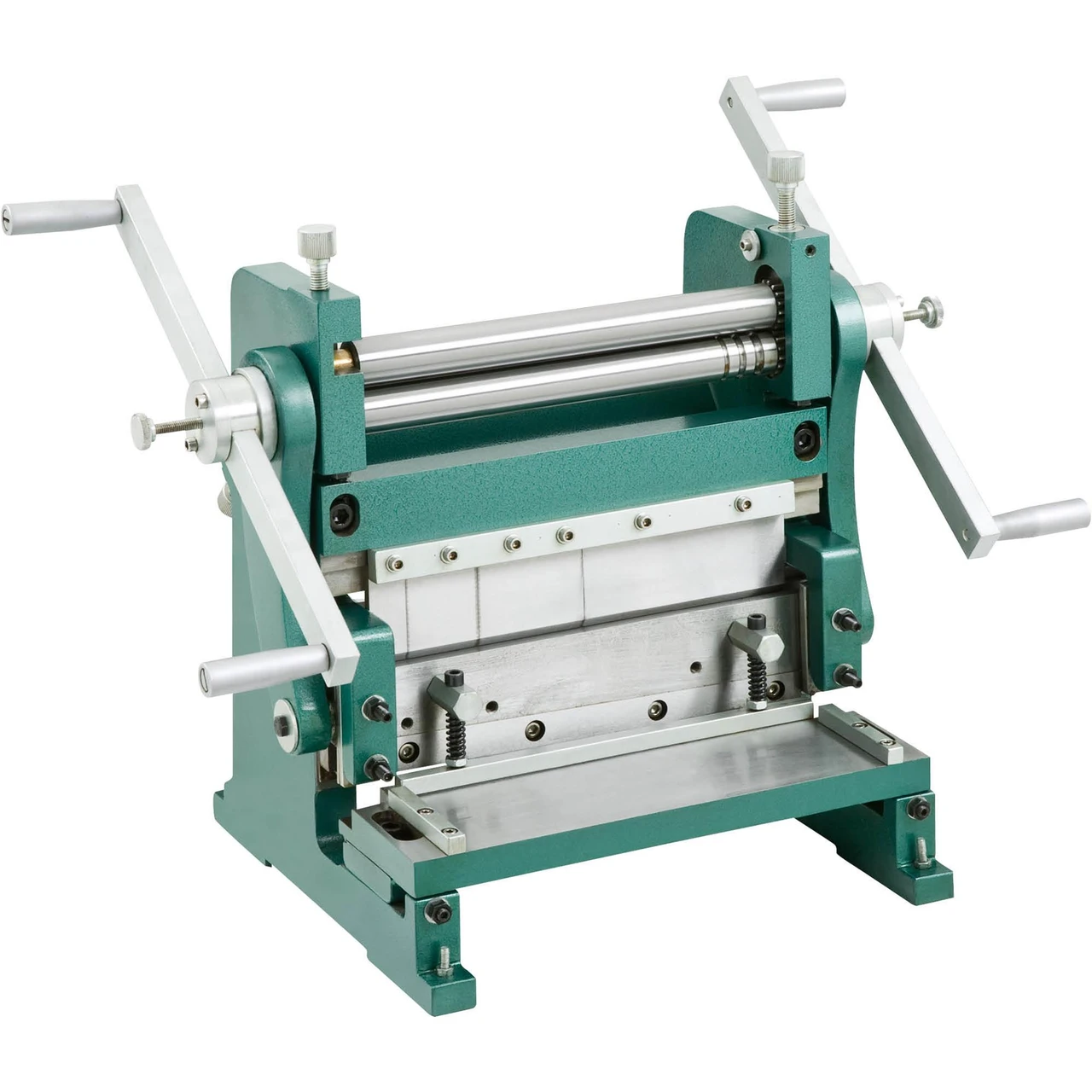

Grizzly Industrial 12" 3-in-1 Sheet Metal Machine (T26472Z)
Grizzly Industrial 12" 3-in-1 Sheet Metal Machine (T26472Z) is the ultimate tool for efficient and precise sheet metal fabrication. Its Z-Series construction includes heavier components and closer machining tolerances, making it ideal for demanding applications requiring precision and durability.
Whether you’re forming cylinders, creating bends, or cutting sheet metal, this all-in-one machine simplifies the process. The adjustable rear stop and easy-release top roller ensure seamless operation, while the hardened steel components promise long-lasting performance.
Specifications and Dimensions
Maximum width: 12 inches
Maximum thickness (mild steel): 20-gauge
Minimum reverse bend: 3/8 inch
Maximum height pan/box brake sides: 1-3/4 inches
Number of fingers: 4
Width of fingers: 1", 2", 3", and 6"
Slip roll minimum diameter: 1-3/8 inches
Slip roller diameter: 1-1/4 inches
Slip roll wire sizes: 1/8", 3/16", and 1/4"
Front stop scale range: 1/2"–7 inches
Rear stop scale range: 1/2"–16 inches
Footprint: 14-1/2" L x 14-1/2" W
Overall size: 25" W x 16-1/2" D x 19" H
Key Features and Benefits
Combines shearing, braking, and rolling into one machine for maximum efficiency
Easy-release top roller for hassle-free adjustments
Compact footprint to fit in any workshop setup
Product identification
- Brand: Grizzly Industrial
- Model / MPN: T26472Z
