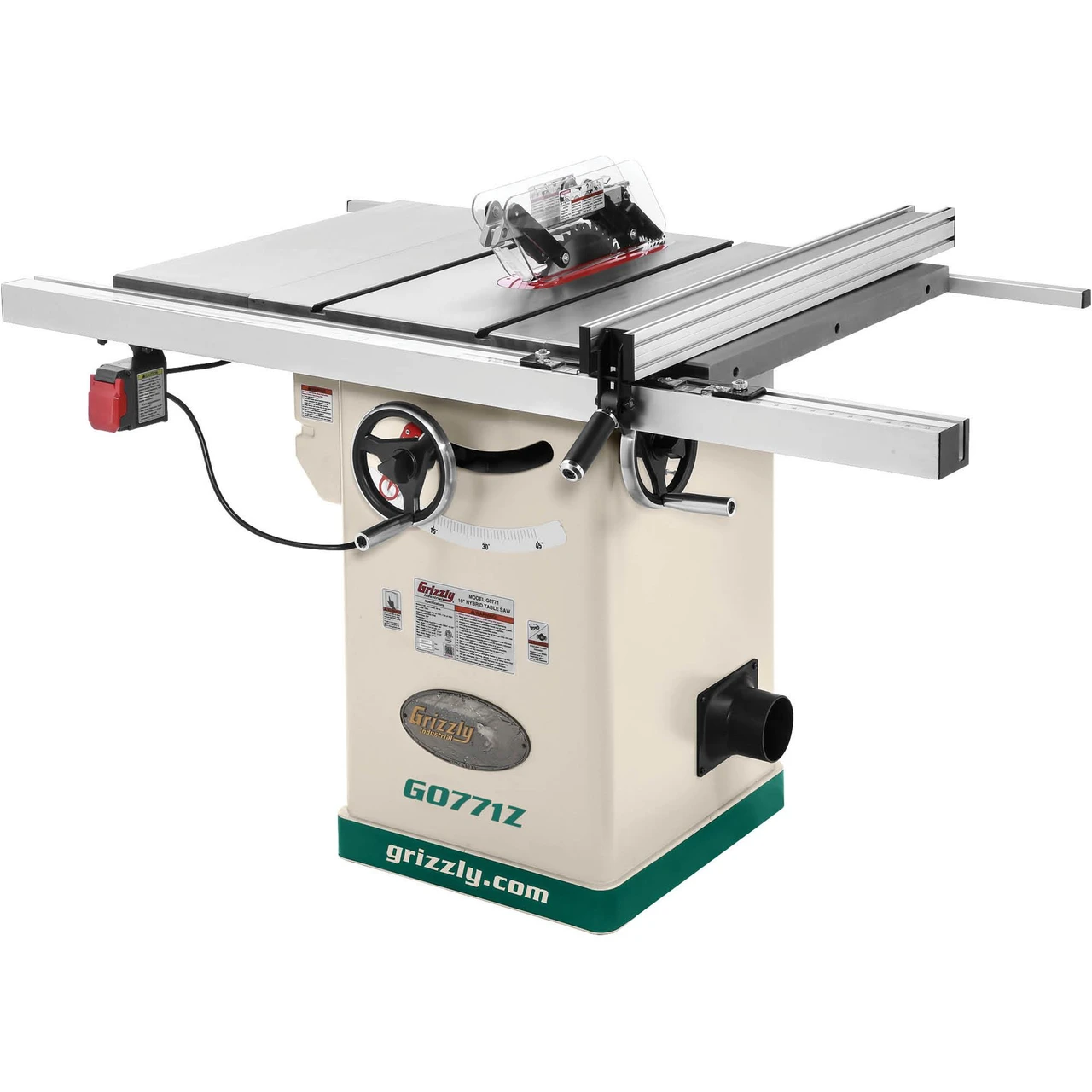

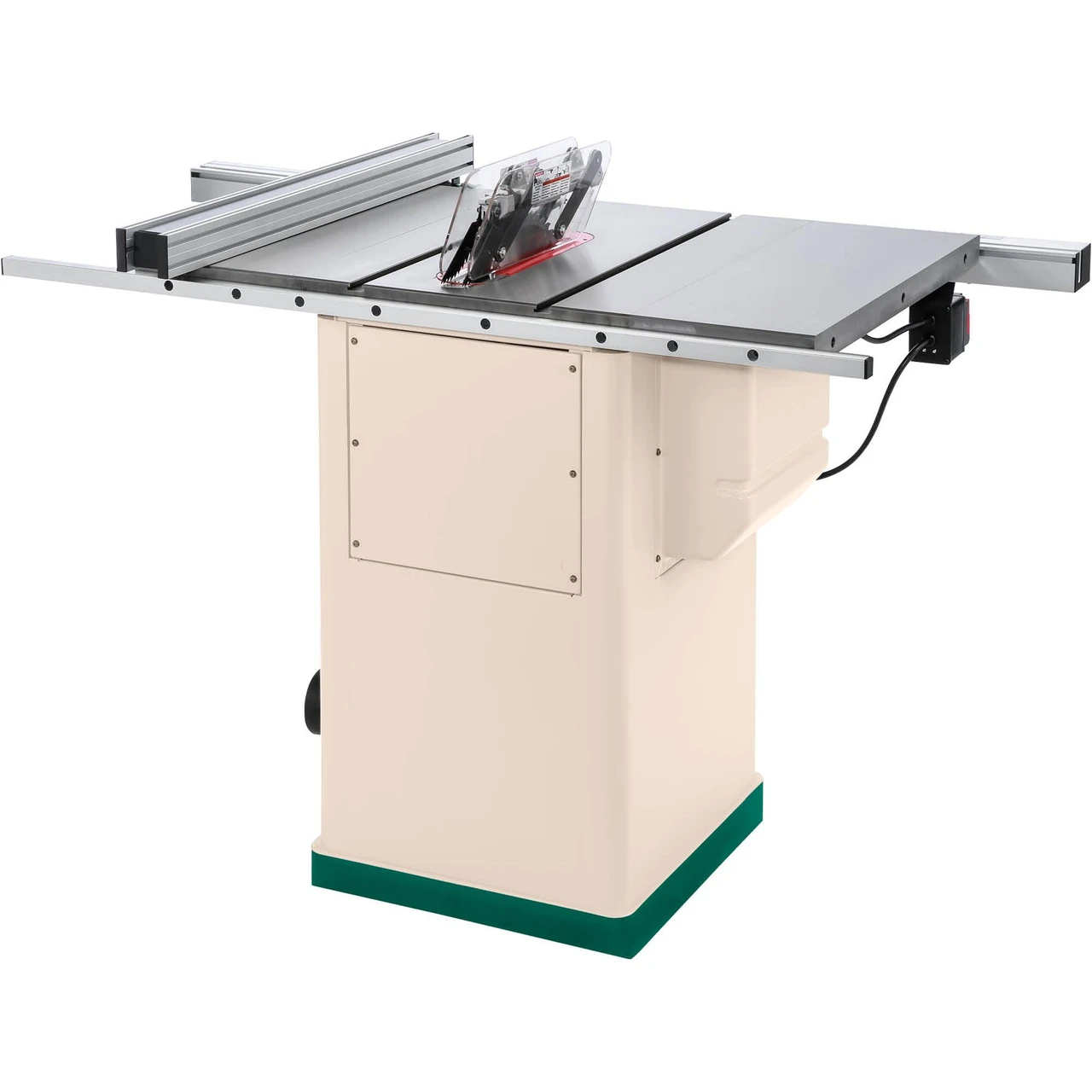

Grizzly Industrial 10" 2 HP 120V Hybrid Table Saw w/ T-Shaped Fence (G0771Z)
Grizzly Industrial 10" 2 HP 120V Hybrid Table Saw w/ T-Shaped Fence (G0771Z) combines the power and precision of a cabinet-style table saw with the compact versatility of a contractor saw. Its 2 HP motor and enclosed cabinet ensure efficient operation while maintaining a smaller footprint suitable for small workshops.
This hybrid table saw features a micro-adjustable, easy-glide fence system, a quick-release blade guard, and cast-iron trunnions for stability and durability. The precision-ground cast-iron table extends over 40" with extension wings, providing ample workspace for various cutting needs, from rip cuts to dadoes.
Specifications and Dimensions
Motor: 2 HP, 120V/240V (prewired for 120V), single-phase, 15A/7.5A
Rip capacity: 30" right, 15" left of blade
Max. depth of cut @ 90°: 3-1/4"
Max. depth of cut @ 45°: 2-1/4"
Overall table size: 40-1/2" W x 27" D
Distance from front of table to center of blade: 15-1/2"
Floor-to-table height: 35-3/8"
Arbor diameter: 5/8"
Arbor speed: 3450 RPM
Max. width of dado: 13/16"

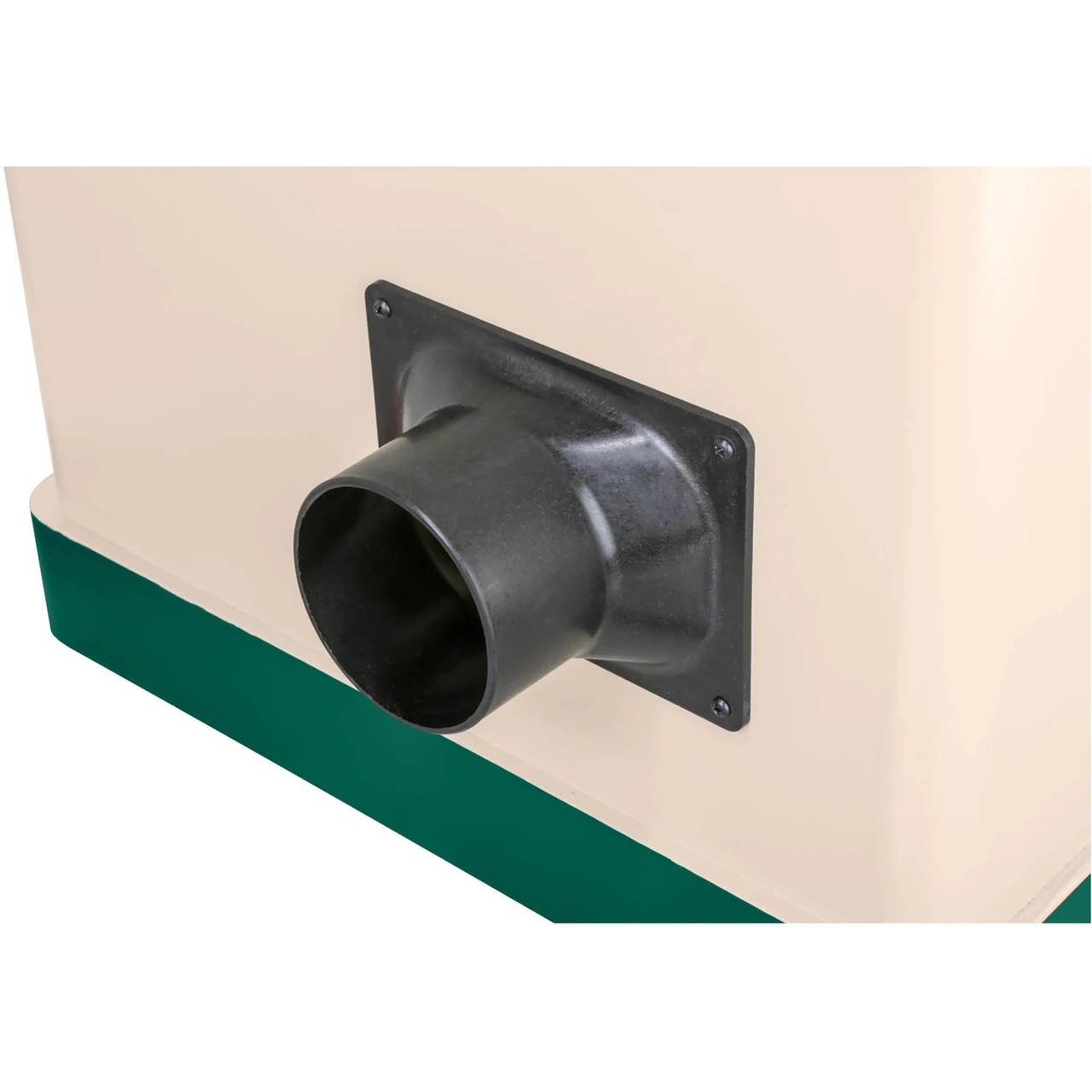

Dust port size: 4"
Footprint: 19-1/2" x 21"
Overall dimensions: 64" W x 40-1/4" D x 36" H
Key Features and Benefits

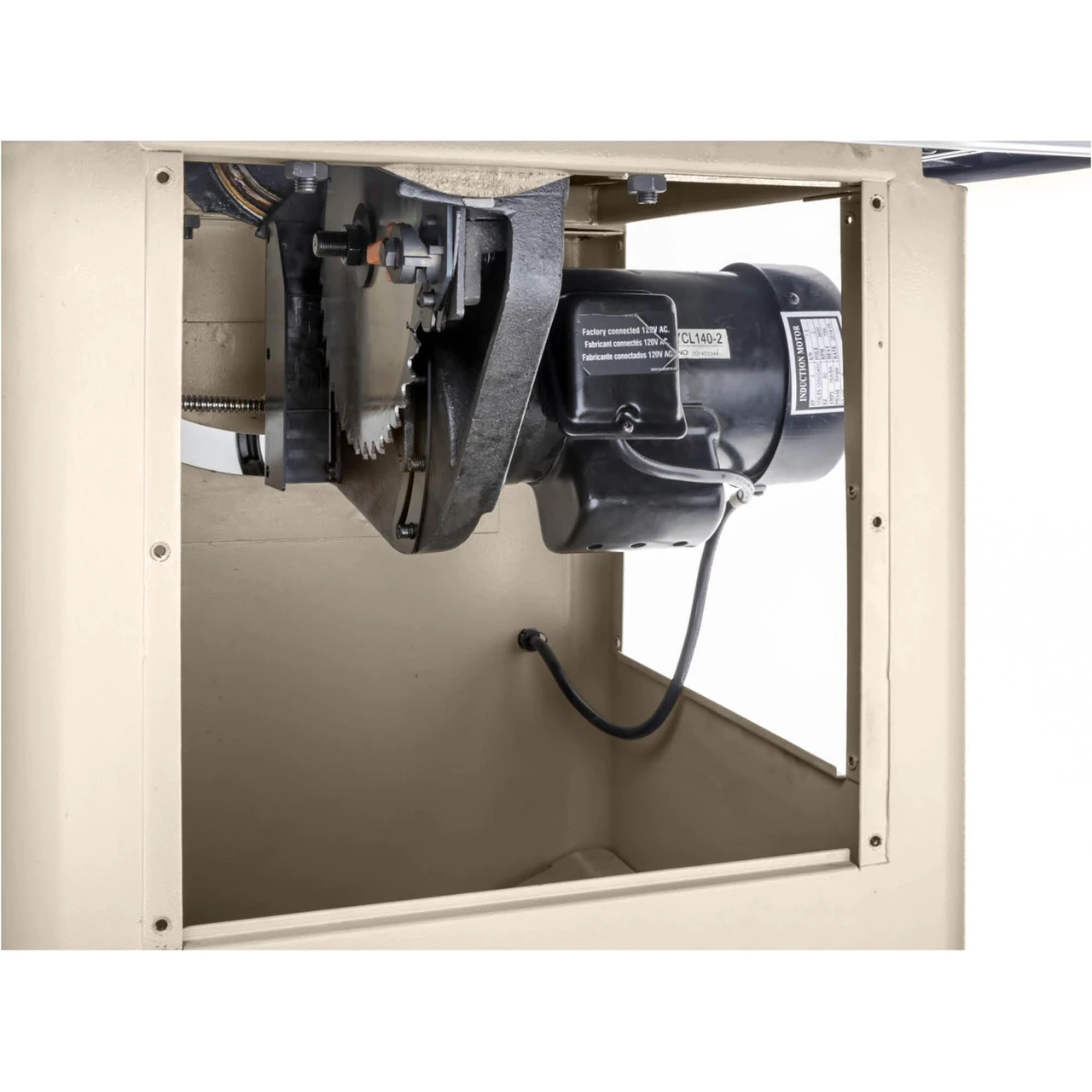

Durable cast-iron tables and trunnions for long-lasting performance
Compact hybrid design with the power of a cabinet saw
Micro-adjustable easy-glide fence system with narrow rip attachment
Quick-release blade guard and riving knife system for safe operation
Precision-ground cast-iron table with extension wings for added workspace
Enclosed cabinet design for improved dust collection
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G0771Z
Table saw fence: see the listed specifications for this model.
