Grizzly Industrial 1 hp wall hanging dust collector details

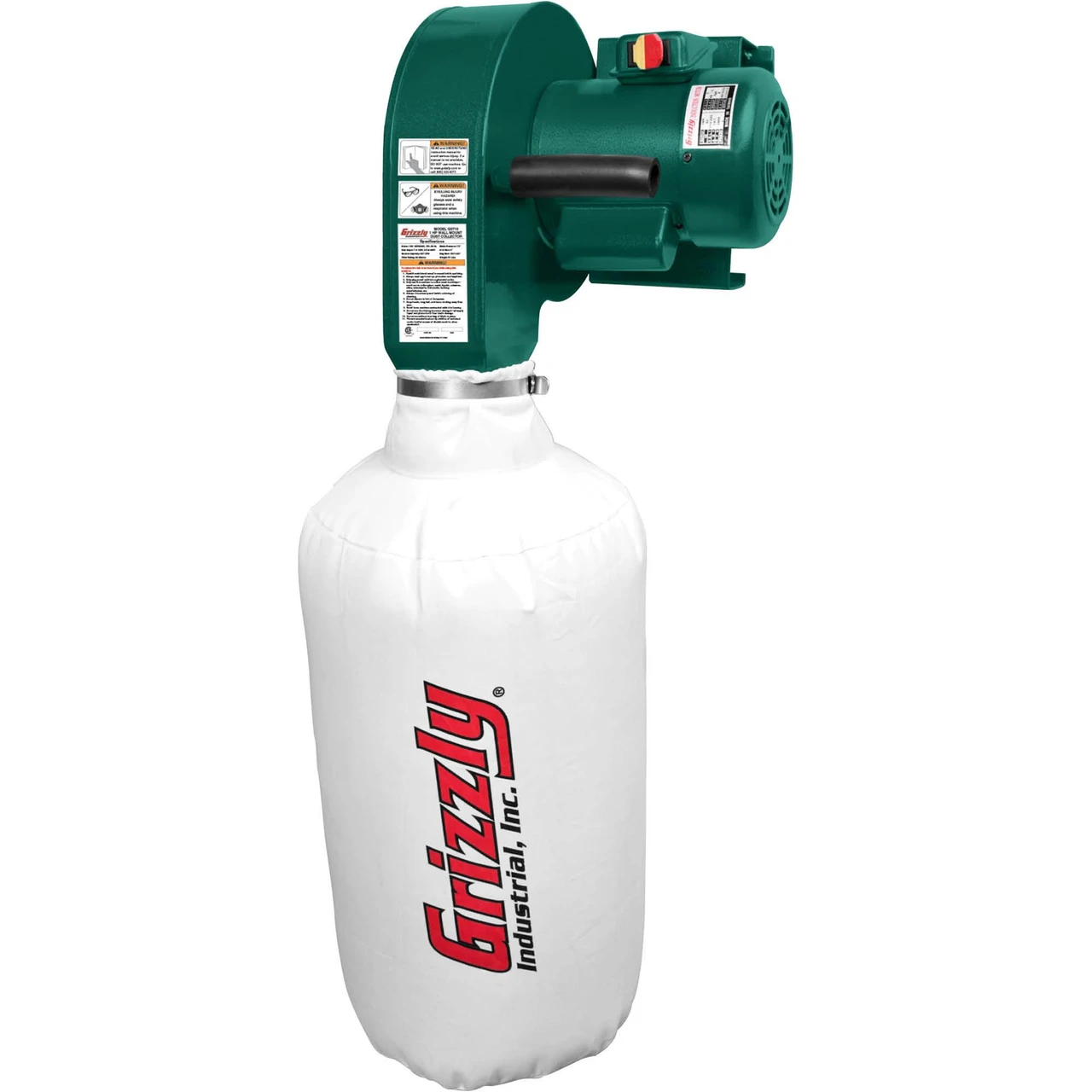

Grizzly Industrial 1 HP Wall Hanging Dust Collector (G0710)
Grizzly Industrial 1 HP Wall Hanging Dust Collector (G0710) is the ideal solution for small to medium-sized workshops. With a powerful 1 HP motor and 537 CFM air suction capacity, it efficiently captures dust and wood chips from a single woodworking machine, keeping your work area clean and safe.

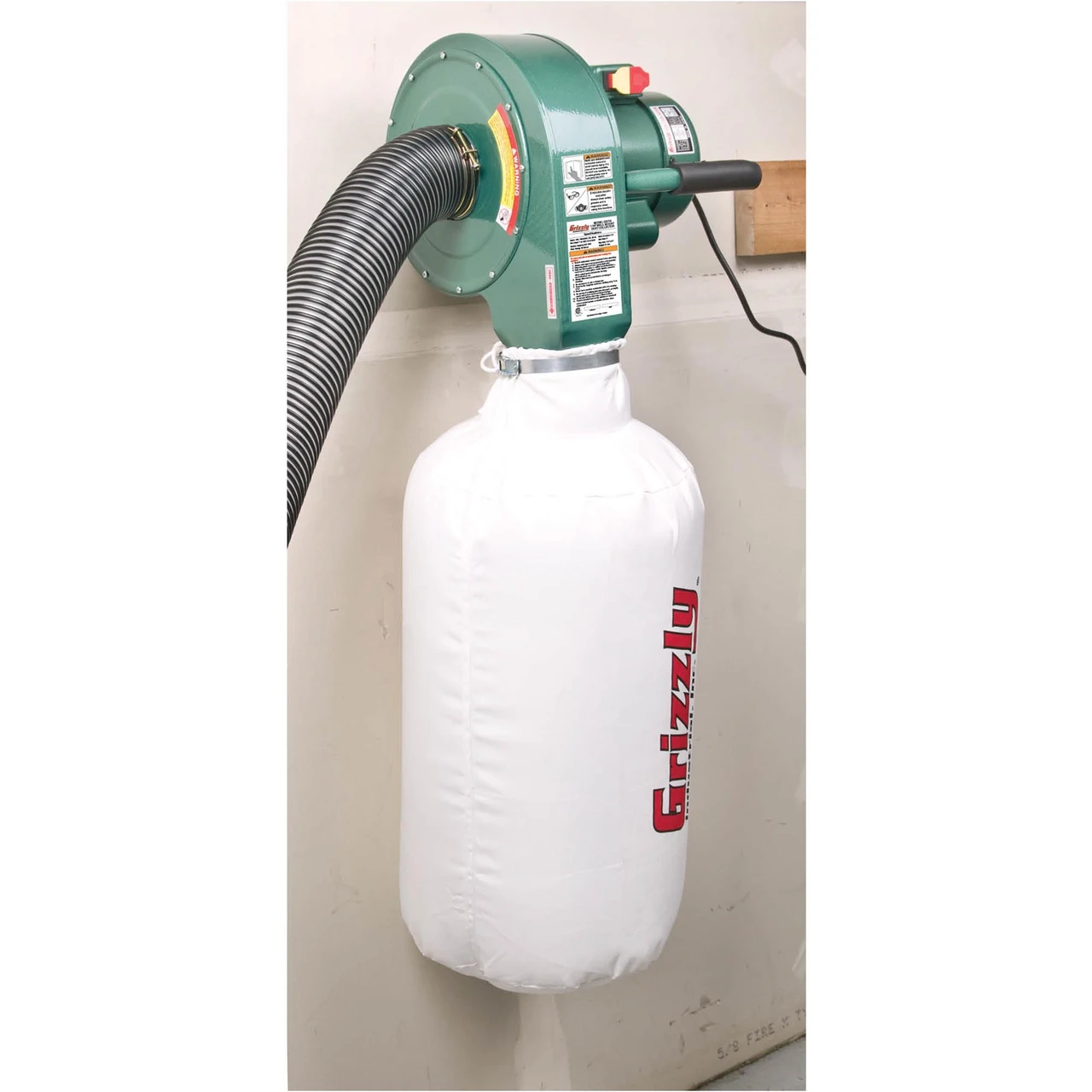

Its compact design allows it to be wall-mounted, bench-mounted, or placed on the floor, saving valuable floor space in your shop. This dust collector features a 30-micron cloth filtration bag, which is easy to remove and empty when full.
Specifications and Dimensions

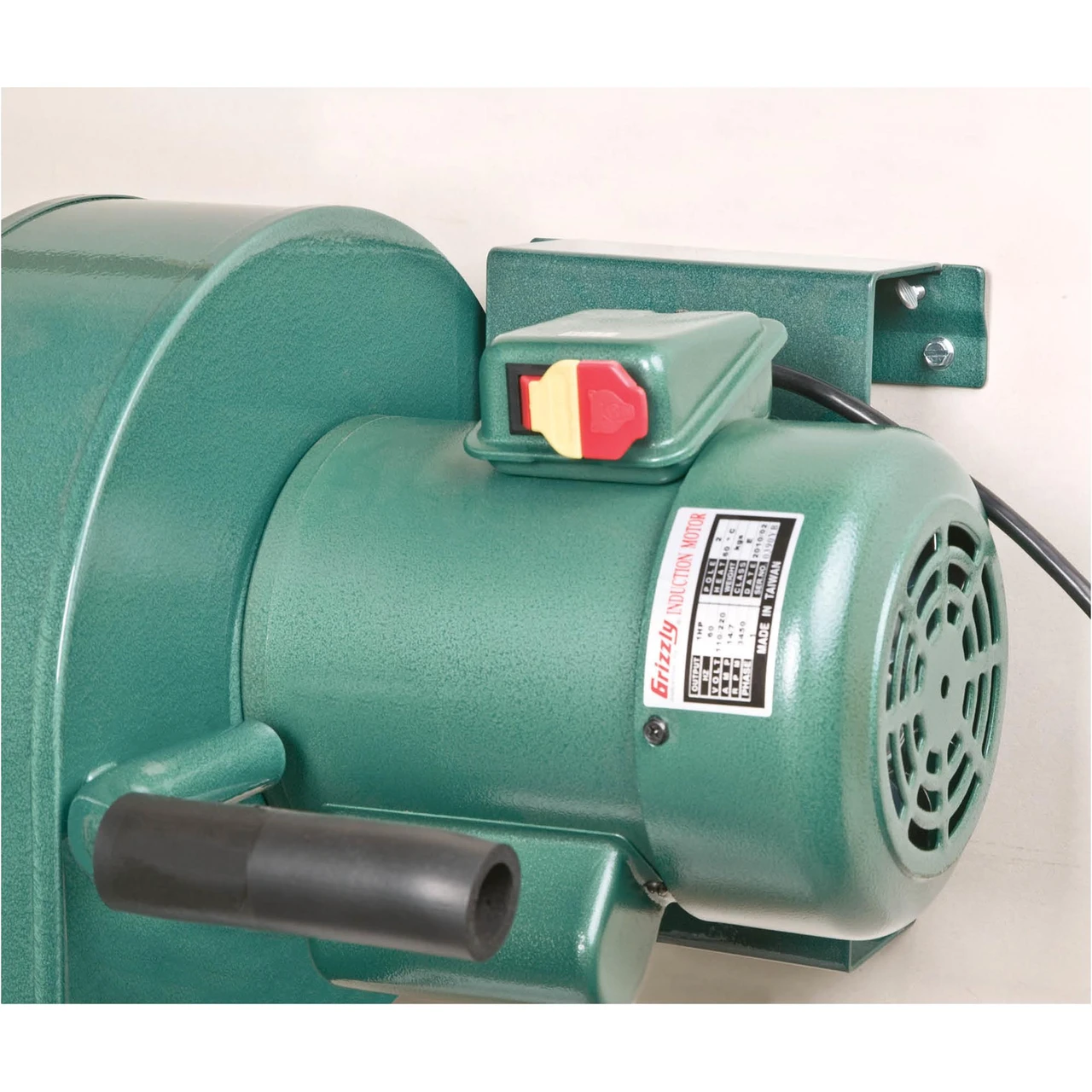

Motor size: 1 HP, 120V/240V (prewired for 120V), single-phase, 7A/3.5A
Dust collector type: Single-stage
Filter type: Bag
Bag size (diameter x depth): 13-1/2" x 24"
Filtration rating: 30-Micron
Air suction capacity: 537 CFM
Max static pressure (at 0 CFM): 7.2"
Intake hole size: 4"
Machine collection capacity: 1
Impeller: 10" balanced cast aluminum
Overall dimensions: 19-1/2" W x 18" D x 44" H

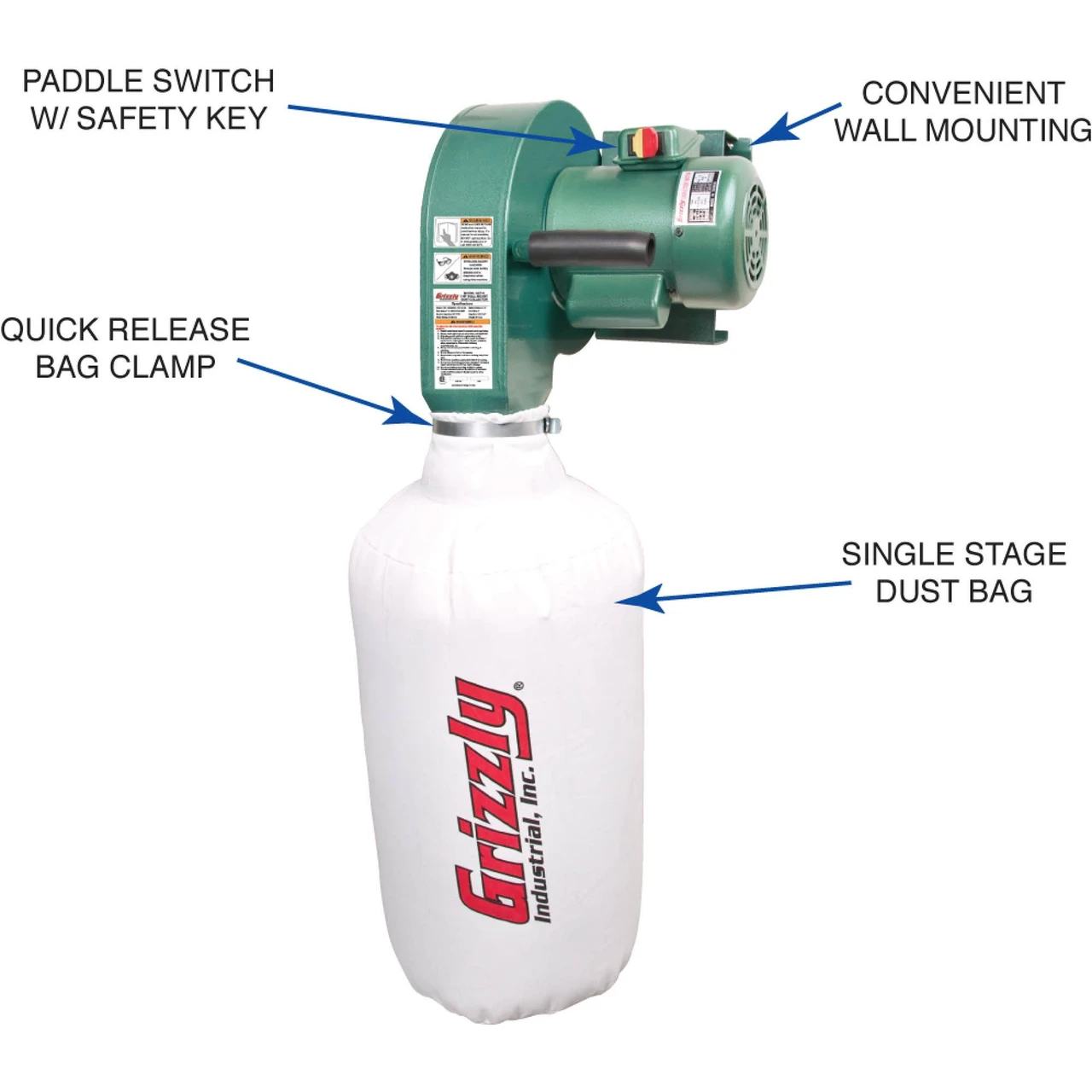

Key Features and Benefits

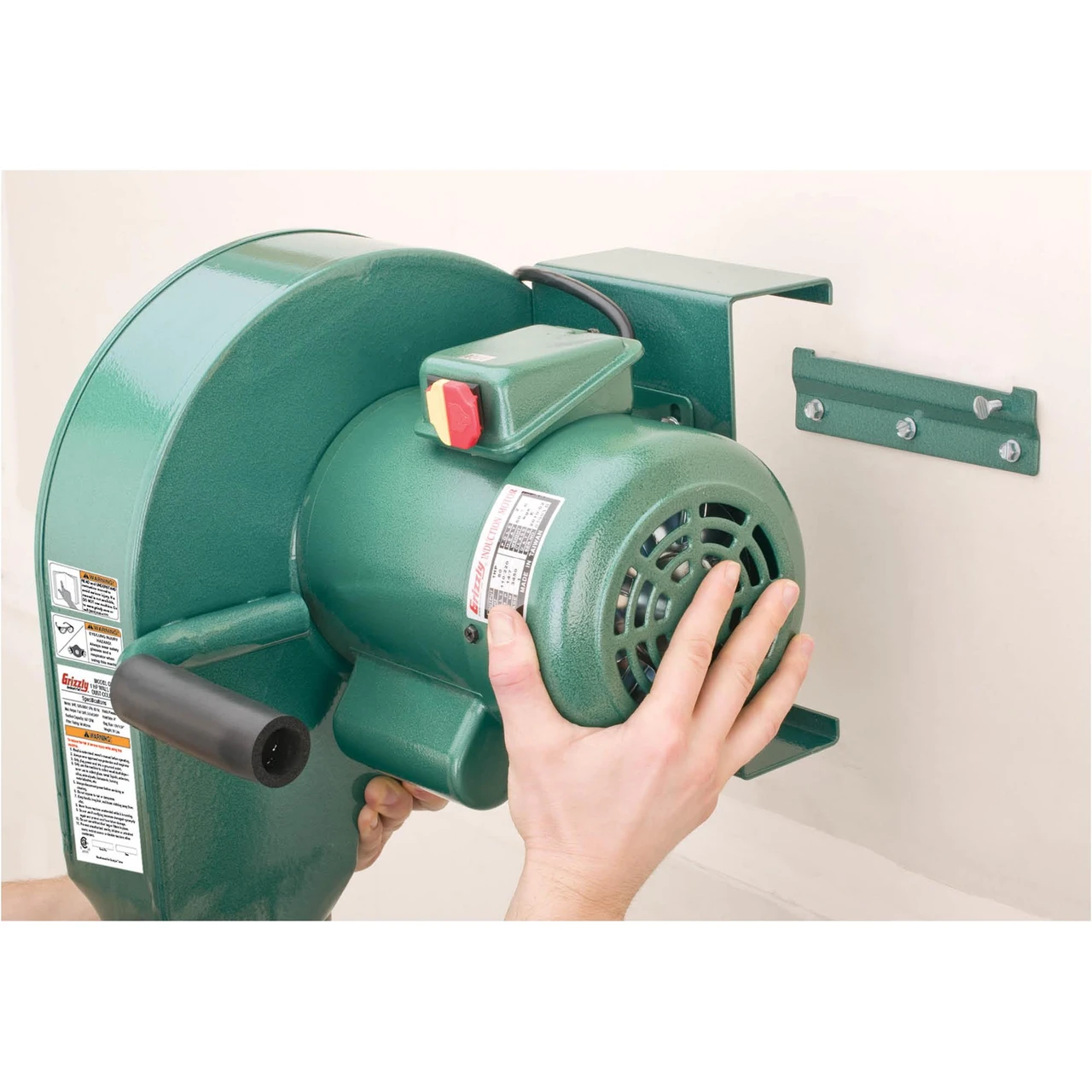

Compact design saves floor space with wall or bench mounting options
10" cast aluminum impeller for durable and smooth operation
Optional upgrades available for 3-micron or 1-micron filtration
Green powder-coated steel base plate for enhanced durability
Easy-to-remove bag for quick emptying and maintenance
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G0710
