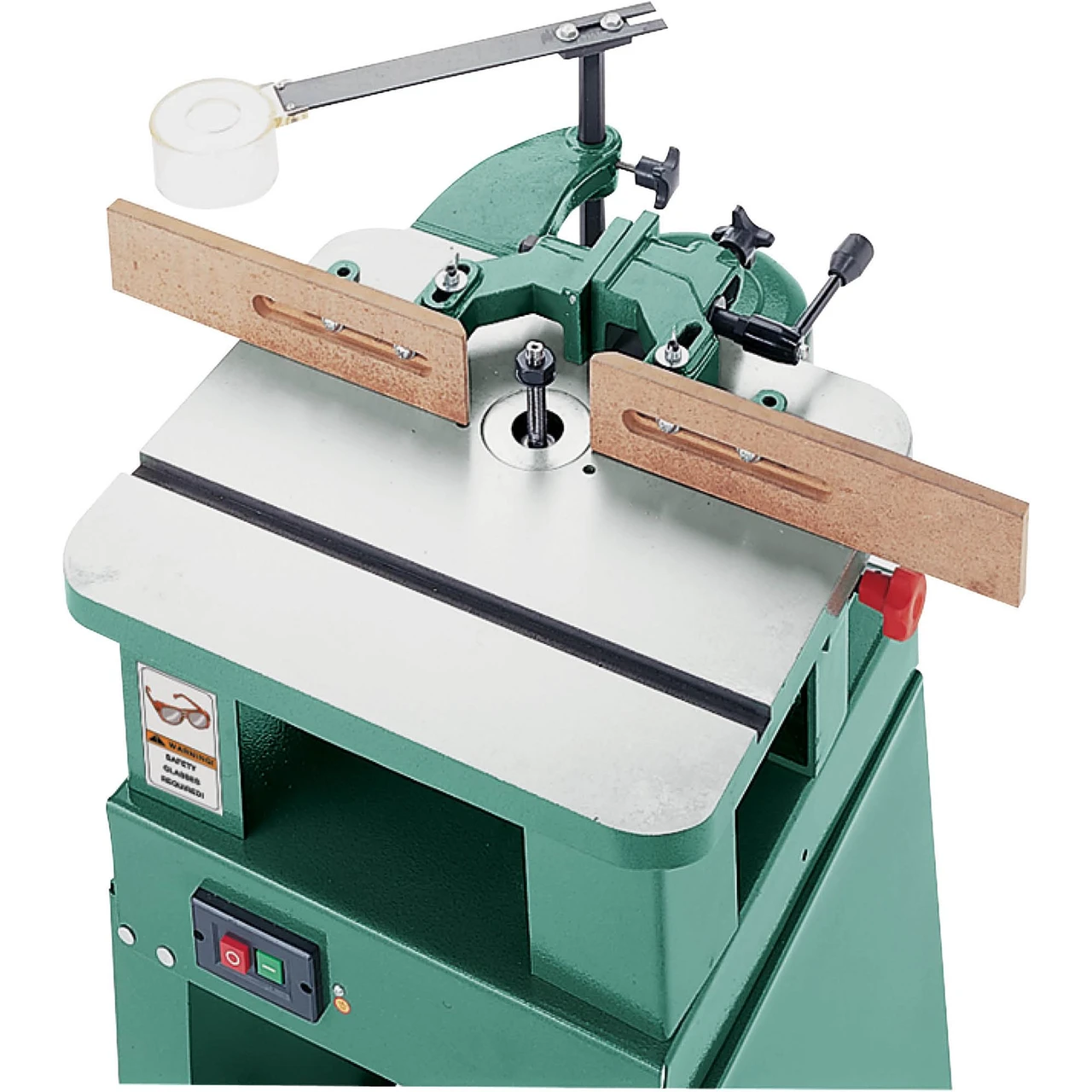

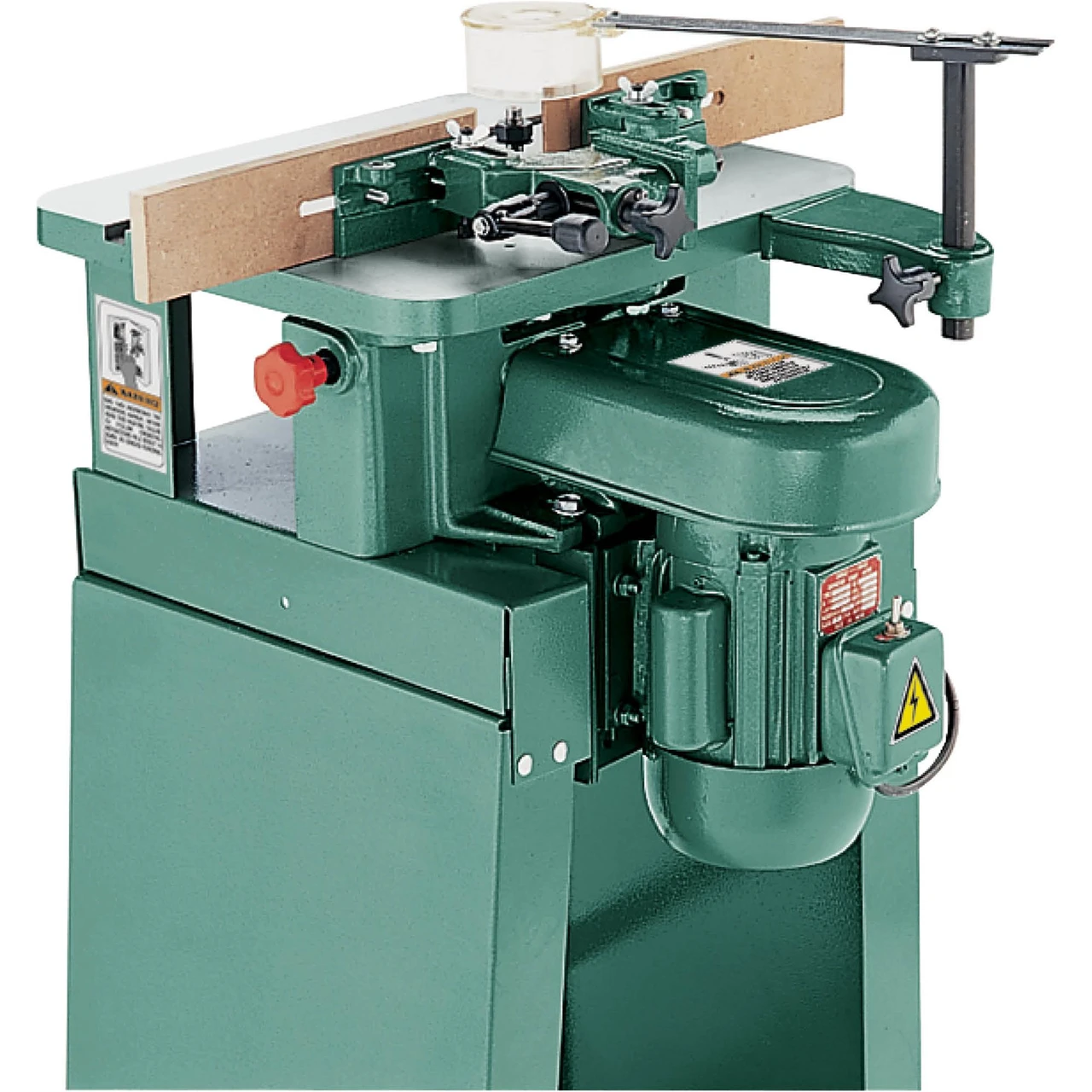

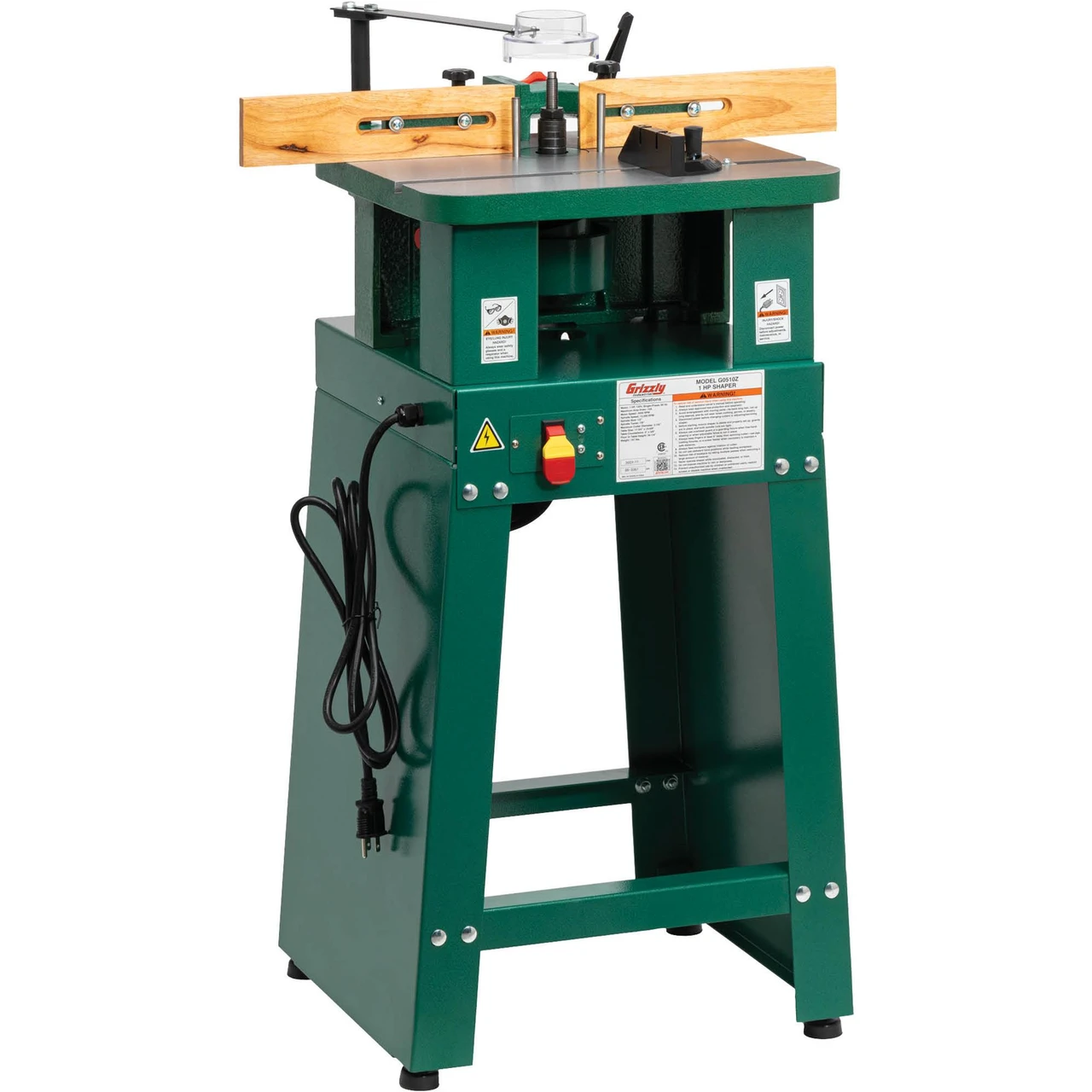

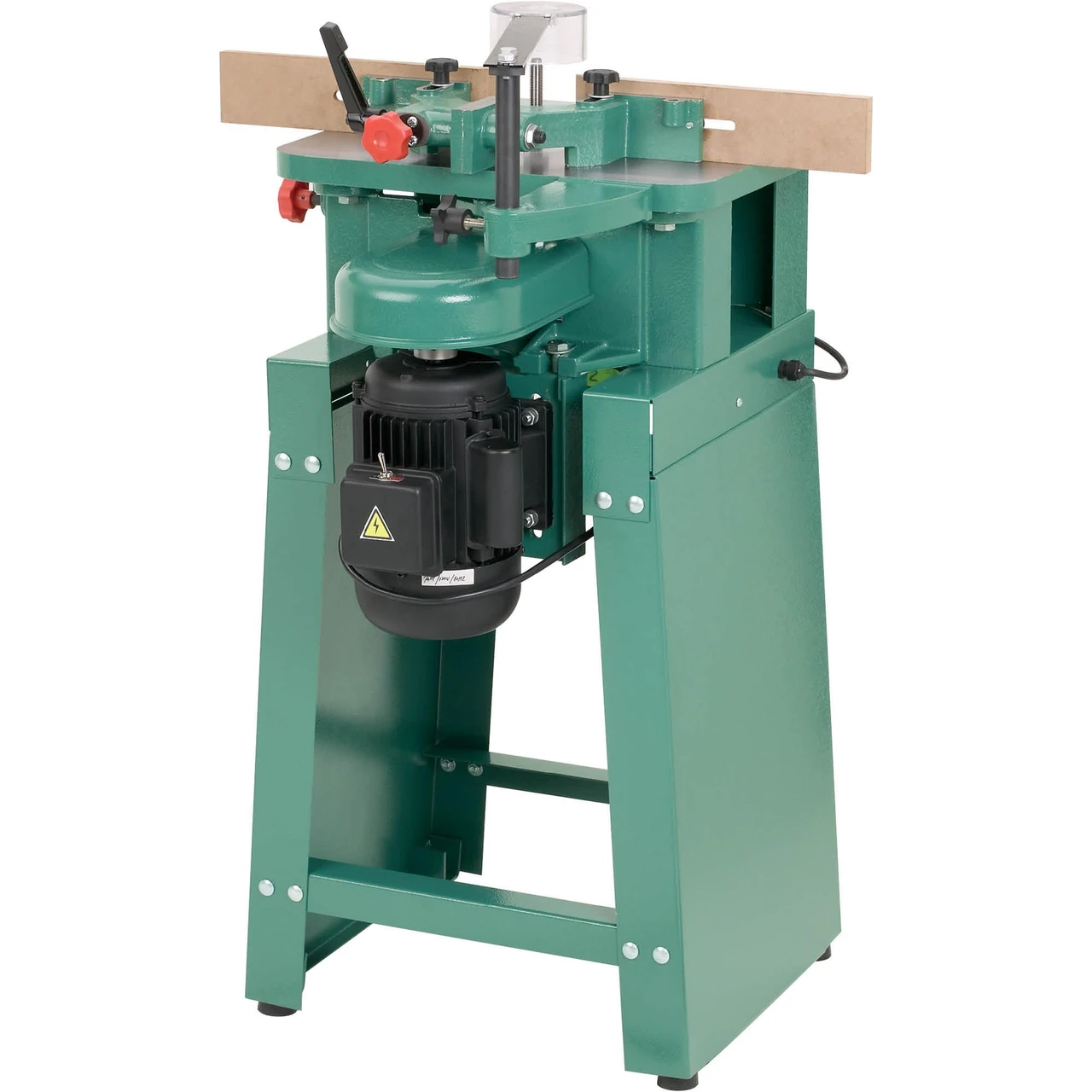

Grizzly Industrial 1 HP Shaper (G0510Z)
Grizzly Industrial 1 HP Shaper (G0510Z) delivers precision shaping for woodworking projects. Powered by a robust 1 HP motor, this shaper achieves a spindle speed of 13,200 RPM, ensuring smooth cuts for professional-grade results. Its compact design and cast-iron construction make it a reliable choice for smaller workshops.
Equipped with independently adjustable fences and a reversing switch, this shaper offers enhanced versatility for shaping applications. The precision-ground cast-iron table provides a stable workspace, while the included table inserts improve chip management and workpiece support.
Specifications and Dimensions
Motor: 1 HP, 120V, single-phase, 13A
Maximum cutter height: 2-5/8"
Maximum cutter diameter: 2-7/8"
Spindle diameter: 1/2"
Spindle length: 3"
Spindle capacity under nut: 2-3/8"
Spindle speeds: 13,200 RPM
Spindle travel: 7/8"
Table insert inside openings: 1-3/8", 1-3/4"
Table counterbore: 3" dia. x 3/8" D
Table size: 15-5/8" x 17-3/4"
Floor-to-table height: 34-1/4"
Footprint: 16-5/8" x 18-7/8"
Overall dimensions: 27" W x 23" D x 40-1/2" H
Key Features and Benefits
Precision-ground cast-iron table for stability and durability
Independently adjustable split fence assembly for versatile shaping
Reversing switch to accommodate various cutting applications
Shielded and permanently lubricated spindle bearings
Compact size ideal for benchtop use in smaller workshops
ON/OFF switch with removable key for safety
Product identification
- Brand: Grizzly Industrial
- Model / MPN: G0510Z
