Grey Pneumatic impact socket details
Grey Pneumatic 2-1/2" Dr. x 3-3/4" Standard Impact Socket 12pt (7420R)
The Grey Pneumatic 2-1/2" Dr. x 3-3/4" Standard Impact Socket 12pt (7420R) is designed for demanding applications, offering heavy-duty construction and reliable performance. Its large socket size and standard length provide the versatility needed for various tasks.
KEY FEATURES AND BENEFITS:
Heavy-Duty Construction: Built to withstand the rigors of demanding applications.
Large Socket Size: Accommodates large bolts and nuts.
Standard Length: Provides ample clearance for work.
12-Point Design: Offers easy access in tight spaces.
High-Quality Materials: Ensures durability and performance.
Presentation: Individual

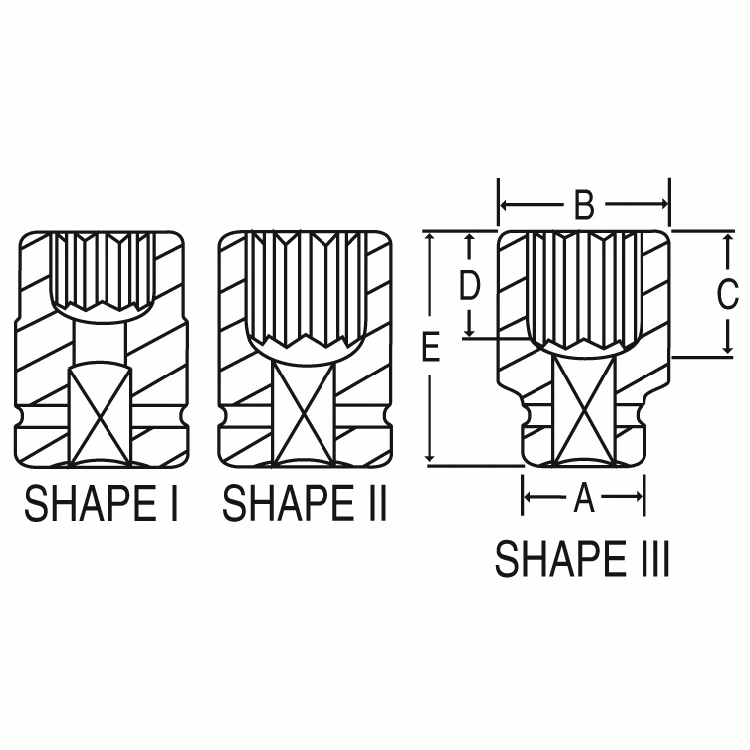

Drive End Outside Diameter: 5.63"
Length Profile: Short
Square Drive: 2-1/2"
Nut End Outside Diameter: 5"
Overall Length: 5.71"
Nut Depth: 2.05"
Bolt Clearance Depth: 3.15"
OPM Product Number: GRP7420R
Brand: Grey Pneumatic
Identify the bolt or nut: Determine the size and type of fastener you need to work with.
Select the correct socket: Ensure that the socket size matches the fastener.
Attach the socket to the impact wrench: Securely connect the socket to the drive end of the impact wrench.
Position the socket over the fastener: Align the socket with the bolt or nut.
Apply power: Engage the impact wrench to loosen or tighten the fastener.
BENEFITS OF USING GREY PNEUMATIC 2-1/2" DR. X 3-3/4" STANDARD IMPACT SOCKET 12PT (7420R):
Enhanced Efficiency: The durable construction and powerful performance of the Grey Pneumatic 7420R allow for quick and efficient work.
Increased Productivity: The large socket size and standard length make it suitable for a wide range of applications, saving time and effort.
Improved Safety: The reliable design and high-quality materials ensure a secure and safe working environment.
Chrome Vanadium Steel Construction: Provides exceptional strength and durability.
Black Oxide Finish: Resists corrosion and enhances tool life.
Product identification
- Brand: Grey Pneumatic
- Model / MPN: 7420R
Impact socket 1/2: see the listed specifications for this model.
