3/4 inch drive deep impact socket details
Grey Pneumatic 1-7/8" X 12 Point Deep 3/4" Drive Impact Socket (3160D)

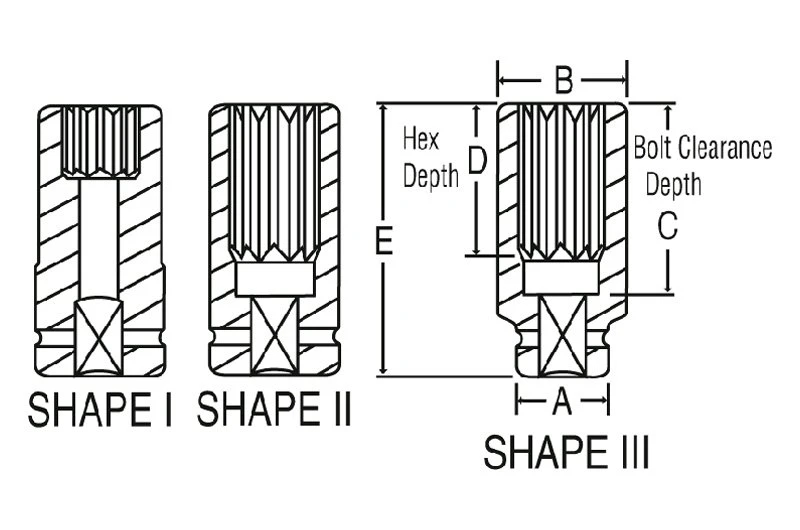

Type High Torque, 12-Point, Deep Length, SAE Fractional, Shape III
Drive End Size 3/4 Inch
Socket End Size 1-7/8 Inch
Outside Diameter 2.68 Inch
Overall Length 3.94 Inch
Material Chrome-Molybdenum Alloy Steel
Bolt Clearance Depth 2.95 Inch
Socket Depth 1.5 Inch
Application Automotive, Industrial, Assembly, Mining, Maintenance, Construction and Energy Industry
Packaging Type Poly Bag with Barcode
All GP Impact Sockets feature the GP High Torque Drive
Increased Strength – Transfers the pressure from the thinnest part of the socket wall toward the thicker section, resulting in increased strength
Increased Torque – Allows up to 20 Percent more torque to be applied than on standard hex impact sockets
Easier Access to Tight Areas – The shift in pressure allows us to reduce the socket wall thickness, increasing access to tight areas
All GP Sockets feature extra-large size markings for quick identification
High quality chro-moly alloy steel.
GP High Torque Drive Socket design for increased strength with reduced chance of fastener rounding.
Image shown may not be actual product but represents product.
Poly bag with barcode
Order Part NumberGP3160D
Item DescriptionSocket 3/4" Drive X 1-7/8" Deep – 12 Point
Manufacturer Long NameGrey Pneumatic Corp.
Manufacturer Part Number3160D
Product Group IdGP00
Country of OriginTW
Harmonization Code82042000
Default Selling UnitEA
Part Number3160D
Manufactured byGrey Pneumatic
Also Known AsGP3160D, GRE3160D, GRY-3160D, GY3160D
Product identification
- Brand: Grey Pneumatic
- Model / MPN: 3160D
Grey Pneumatic deep impact socket: see the listed specifications for this model.
