1/2 inch drive impact socket details
Grey Pneumatic 1-1/2" Drive x 3-1/8" Standard Impact Socket (6100R)
The Grey Pneumatic 1-1/2" Drive x 3-1/8" Standard Impact Socket (6100R) is a high-quality impact socket designed to handle heavy-duty applications. It features a 1-1/2" drive and a 3-1/8" socket size, making it ideal for tasks such as wheel changes and axle work. The socket is constructed from durable chrome-molybdenum alloy steel, ensuring long-lasting performance.
KEY FEATURES AND BENEFITS:
Heavy-duty construction: Built to withstand the rigors of demanding applications.
Durable materials: Made from high-quality chrome-molybdenum alloy steel for long-lasting performance.
Presentation: Individual

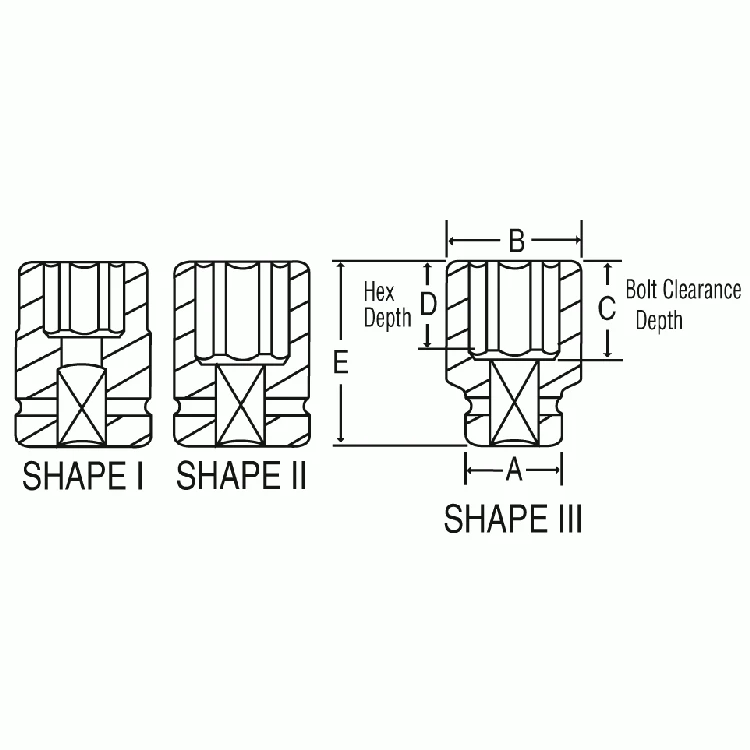

Overall length: 4.50"
Bolt clearance depth: 2.80"
Length profile: Short
Square drive: 1-1/2"
Drive end outside diameter: 4.65"
Nut end outside diameter: 3.39"
Nut depth: 2.09"
OPM Product Number: GRP6100R
Brand: Grey Pneumatic
Identify: The correct socket size. Ensure the socket size matches the bolt or nut you're working on.
Insert: The socket onto the impact wrench. Align the socket with the square drive on the impact wrench and secure it firmly.
Position: The socket over the bolt or nut. Ensure the socket is properly aligned with the bolt or nut.
Activate: The impact wrench. Press the trigger or switch to activate the impact wrench and tighten or loosen the bolt or nut.
Remove: The socket. Once the bolt or nut is secured, carefully remove the socket from the impact wrench.
BENEFITS OF USING THE GREY PNEUMATIC 1-1/2" DRIVE X 3-1/8" STANDARD IMPACT SOCKET (6100R):
Increased efficiency: The Grey Pneumatic 6100R's heavy-duty construction and powerful performance allow for faster and more efficient work.
Improved safety: The durable materials and precise fit ensure a secure connection, reducing the risk of accidents.
Enhanced durability: The socket is built to last, providing long-term value and reducing the need for frequent replacements.
Versatility: The Grey Pneumatic 6100R is suitable for a wide range of applications, making it a valuable tool for both professionals and DIYers.
Precise fit: Ensures a secure and reliable connection.
Easy to use: Simple design for straightforward operation.
Product identification
- Brand: Grey Pneumatic
- Model / MPN: 6100R
Grey Pneumatic impact socket: see the listed specifications for this model.
