Digital multimeter details

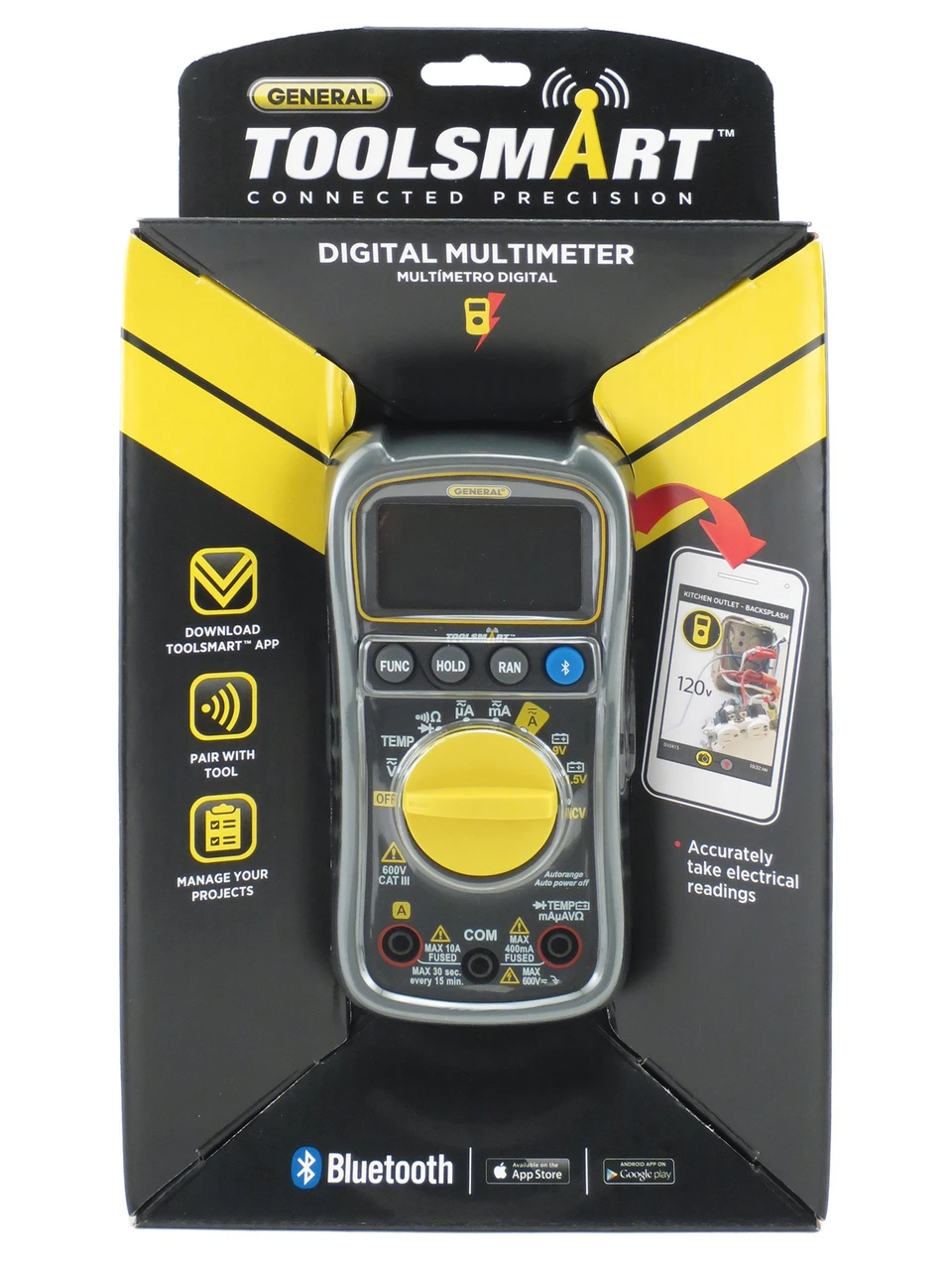

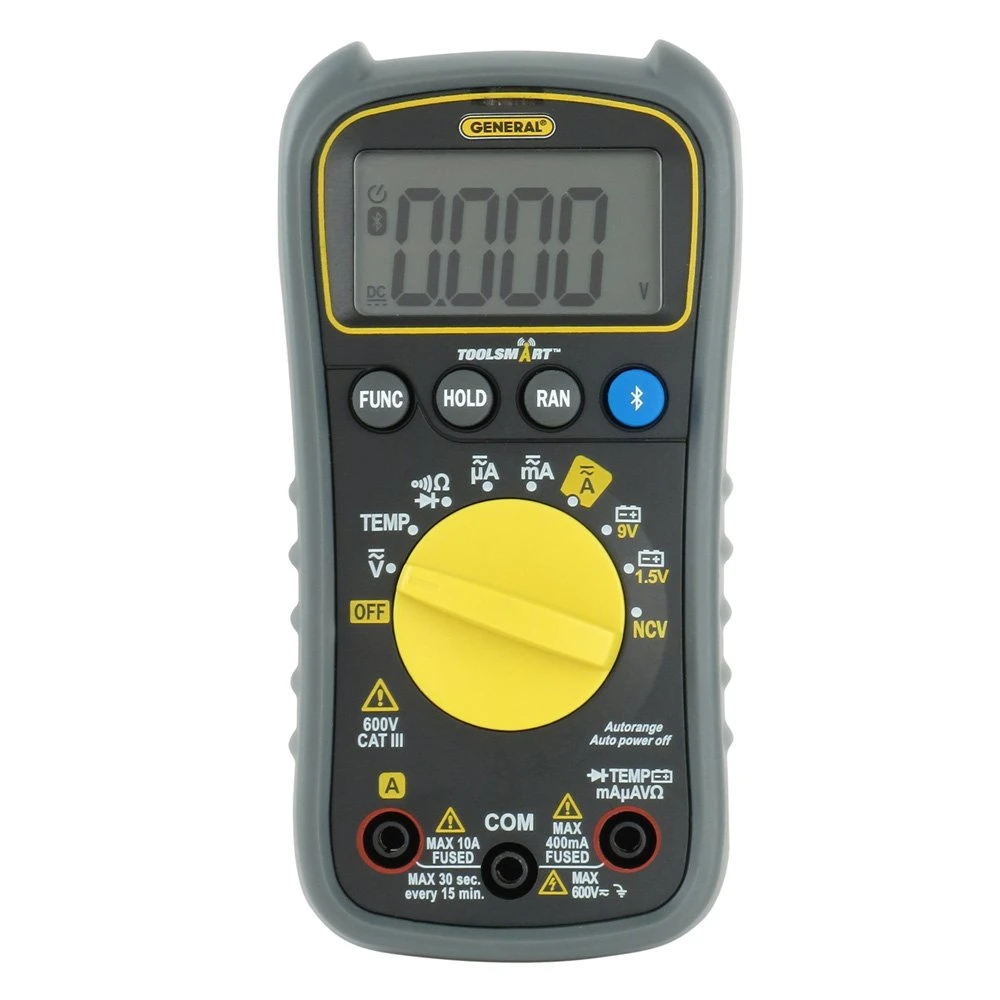

General Tools Bluetooth Connected Digital Multimeter (TS04)
General Tools Bluetooth Connected Digital Multimeter (TS04) is a precision tool designed to measure a wide range of electrical parameters. With its user-friendly interface and advanced features, it's ideal for professionals and DIY enthusiasts alike.
KEY FEATURES AND BENEFITS:
Accurate and Reliable: Delivers precise measurements for voltage, current, resistance, temperature, and more.
Bluetooth Connectivity: Seamlessly syncs with the ToolSmart app for data management and remote viewing.
Auto-Ranging: Automatically selects the appropriate measurement range for convenience.
NCV Detection: Safely identifies live wires without contact.
AC/DC Voltage Measurement Ranges: 0-4V/40V/400V/600V
AC/DC Current Measurement Ranges: 0-400μA/4mA/40mA/400mA/10A
Resistance Measurement Ranges: 0-400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Temperature Measurement Range: -4°F to 1832°F (-20°C to 1000°C)
Display: 3 5/8-digit LCD with backlight
Power: 9V battery
Dimensions: 180 x 85 x 45 mm
Turn on the multimeter by sliding the power switch.
Select the desired function using the turn dial.
Connect the test leads to the appropriate jacks.
Perform the measurement.
View readings on the multimeter display or the ToolSmart app.
BENEFITS OF USING GENERAL TOOLS BLUETOOTH CONNECTED DIGITAL MULTIMETER (TS04):
Increased Efficiency: Auto-ranging and Bluetooth connectivity save time and effort.
Enhanced Accuracy: Precise measurements for troubleshooting and problem-solving.
Improved Safety: NCV detection and CAT III 600V rating protect against electrical hazards.
Versatile Applications: Suitable for various electrical tasks, from DIY projects to professional use.
Turn-Dial Design: For easy function selection
Data Hold Function: For convenient readings
Low Battery Indication
Auto Power Off: To conserve battery life
Includes: Test leads, thermocouple probe, battery, and user manual
Product identification
- Brand: General Tools
- Model / MPN: TS04
