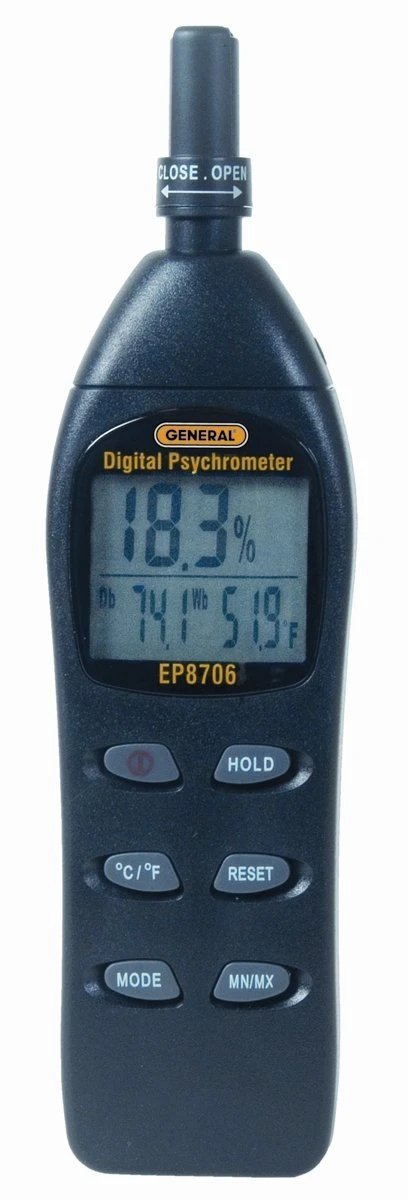

General Tools 4-Function Digital Psychrometer with Jack (EP8706)
The General Tools 4-Function Digital Psychrometer with Jack (EP8706) is a precision instrument designed to measure and display ambient temperature, relative humidity, dew point, and wet bulb temperatures. Its compact and durable build makes it perfect for both indoor and outdoor use.
KEY FEATURES AND BENEFITS:
Accurate Measurements: Delivers precise readings for temperature, humidity, dew point, and wet bulb.
Calibratable: Ensures accurate measurements through field calibration.
User-Friendly: Jumbo display for easy readability and intuitive controls.
Versatile: Suitable for various applications including HVAC, agriculture, and indoor air quality monitoring.
Durable: Built to withstand harsh conditions.
Temperature Range: -4° to 122°F (-20° to 50°C)
Temperature Resolution: 0.1°F (0.1°C)
Temperature Accuracy: ±1°F (±0.6°C)
Dew Point Temperature Range: -90° to 122°F (-68° to 50°C)
Wet Bulb Temperature Range: -7° to 122°F (-21° to 50°C)
Humidity Range: 0 to 100%
Humidity Resolution: 0.1%
Humidity Accuracy: ±3%
Response Time: 60 seconds
Power Source: Two AAA batteries (included)
Dimensions: 19.7 cm x 10.3 cm x 4.8 cm
Remove the sensor protection cap.
Turn on the device by pressing the power button.
Wait for 60 seconds for accurate readings.
Read the desired measurement from the jumbo display.
To calibrate, use the included calibration tools and follow the user manual.
Turn off the device when not in use to conserve battery life.
BENEFITS OF USING GENERAL TOOLS 4-FUNCTION DIGITAL PSYCHROMETER WITH JACK (EP8706):
Optimize HVAC system performance.
Monitor indoor air quality for health and comfort.
Aid in agricultural processes such as irrigation and crop management.
Assist in weather forecasting and analysis.
Provide accurate data for research and development.
High-visibility display with backlight for clear readings
Field-calibration capability for maintained accuracy
Multi-parameter measurement functionality
Advanced data tracking with min/max recall
Measurement retention capability
Expandable functionality with external probe support
Energy-saving automatic shutdown (user-configurable)
Robust, portable design for field use
Product identification
- Brand: General Tools
- Model / MPN: EP8706
