Fortin EVOVWT1 All-in-One Remote Start kit for 2011+ Sel Push-to-Start VW/Audi
Preloaded module & T-Harness combo for select Volkswagen vehicles. The EVO-VWT1 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, door lock, alarm & remote start interface with T-Harness combo module for select Volkswagen vehicles.
It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.
3 x On-board LEDs for simplified programming and diagnostics.
1 x Factory Fit T-Harness for easy install.
1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems. [2]
1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.
3 x CAN-Bus controllers.
3 x General purpose controllers (J1850, Class 2, encrypted key etc.).
1 x On-board relay (SPDT).
1 x On-board relay (DPDT).
1 x Analog controller 0-12VDC @ 20mV steps (Passlock, MUX).

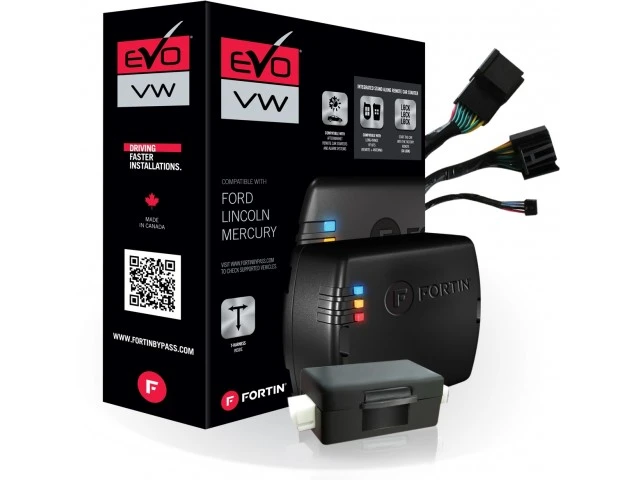

1 x EVO-ALL control module. [1][3]
1 x Warning label. [3]
1 x 4 Pin 2-way data-link harness. [2]
1 x Factory Fit T-Harness (THAR-VW1). [4]
Product identification
- Brand: Fortin
- Model / MPN: EVOVWT1
