Fortin EVOONE All-In-One Remote Starter, Security System, and Data Interface
The EVO-ONE is the ultimate and smallest ALL-IN-ONE HIGH POWER data immobilizer bypass, doorlock, security system & remote start interface. Compatible with all EVO-ALL T-Harnesses and also providing a new broad access to High Power T-Harnesses the EVO-ONE now sets the industry benchmark to a higher level. It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple micro controller and bus architecture which redefines the word Remote Starter. This unit is much more powerful than most entry level vehicle's BCM. EVO-ONE is an impressive state of the art unit at reachable cost.
3 x On-board LEDs for simplified programming and diagnostics.
1 x Harness part bag.
2 x 2-way datalink port for data-to-data (RS-232) communication with compatible external devices such as smartphones & GPS telematic units. [2]
1 x All EVO-ALL I/O's for full fledge Data and Analog vehicle functions coverage. [5]
Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.
5 x High power Onboard relay.
3 x CAN-Bus controllers.
3 x General purpose controllers (J1850, LIN, Class 2, encrypted key etc.).
1 x On-board relay (DPDT).
1 x Analog controller 0-12VDC @ 20mV steps (Passlock, Parking lights, MUX).
10 x Data I/O controllers.
1 x Dual zone shock sensor input.
2 x Datalink RS232 ports. [2]

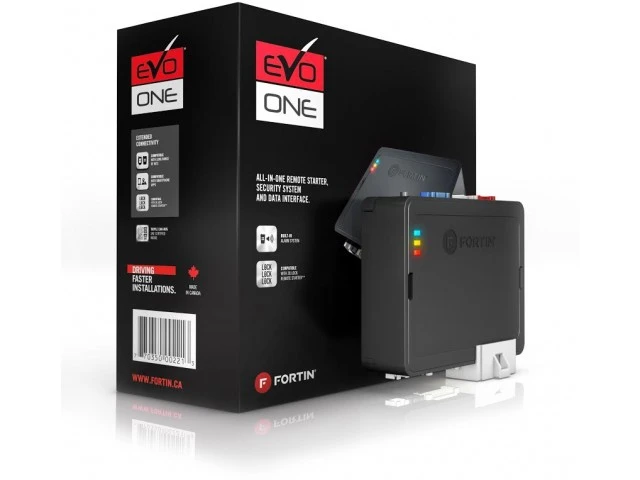

1 x EVO-ONE control module. [1][3]
1 x Warning label. [3]
1 x Hood Pin switch.

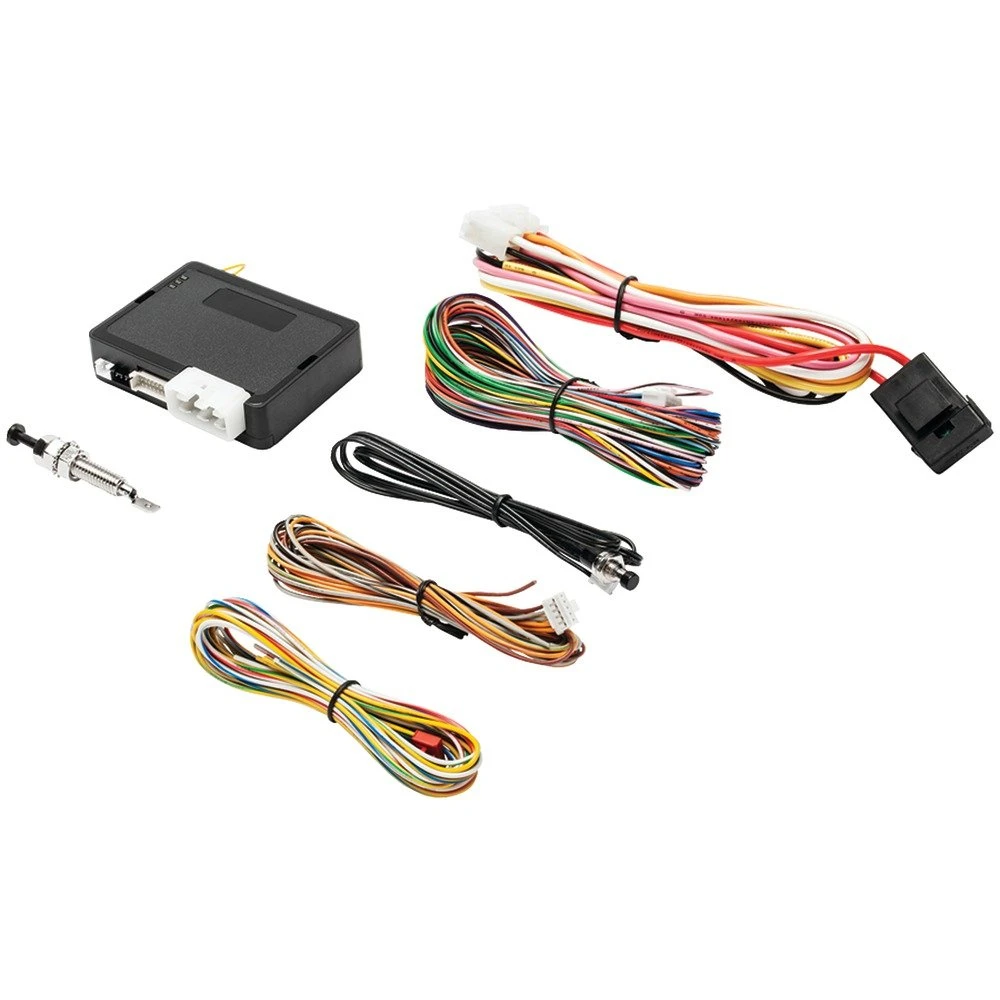

1 x 20 Pin general purpose harness. [4]
1 x 6 Pin High Power Harness. [4]
1x 5-pin CAN-Bus harness.
1x 6-pin Relay harness. [4]
Product identification
- Brand: Fortin
- Model / MPN: EVOONE
