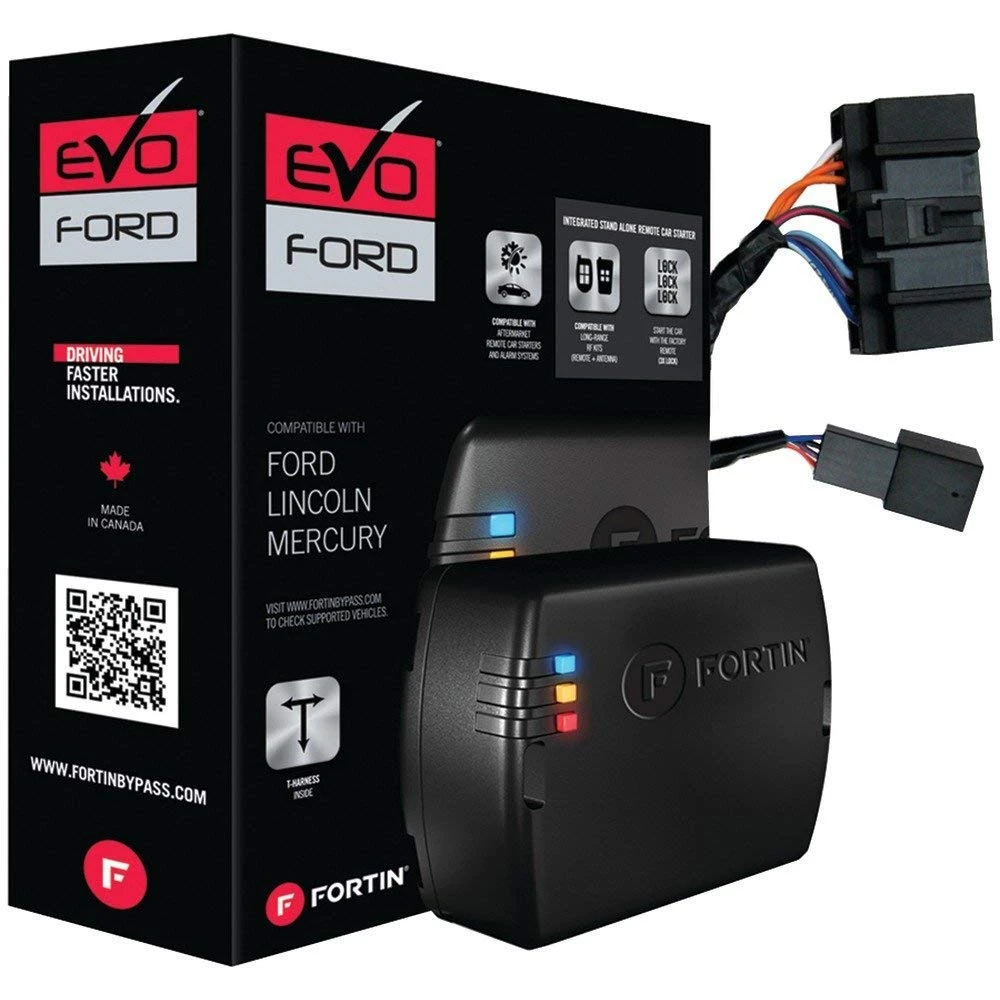

Fortin EVOFORT1 Stand-Alone Add-On Remote Start Car Starter System
Fortin EVO-FORT1 Stand-Alone Add-On Remote Start Car Starter System For Ford IKT Round Metal Key Vehicles
The EVO-FORT1 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, doorlock, alarm & remote start interface with T-Harness combo module for 2008+ Ford, Lincoln and Mercury vehicles.
It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.
3 x On-board LEDs for simplified programming and diagnostics.
1 x Factory Fit T-Harness for easy install.
1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems. [2]
1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.
3 x CAN-Bus controllers.
3 x General purpose controllers (J1850, Class 2, encrypted key etc.).
1 x On-board relay (SPDT).
1 x On-board relay (DPDT).
1 x Analog controller 0-12VDC @ 20mV steps (MUX).
1 x EVO-ALL control module. [1][3]
1 x Warning label. [3]
1 x 20 Pin general purpose harness. [4]
1 x 4 Pin Fortin 2-way data-link harness. [2]
1 x Factory Fit T-Harness. [4]
Product identification
- Brand: Fortin
- Model / MPN: EVOFORT1
