Flexzilla LP1420AFZ 1/4-Inch x 20-Foot Recoil Hose
The Flexzilla LP1420AFZ distinguishes its two ends with a longer swivel tail at the tool and a shorter rigid tail at the compressor. This arrangement helps plan hose movement, while the nominal twenty-foot recoil length is not a guarantee of comfortable working extension.
Specifications and included details

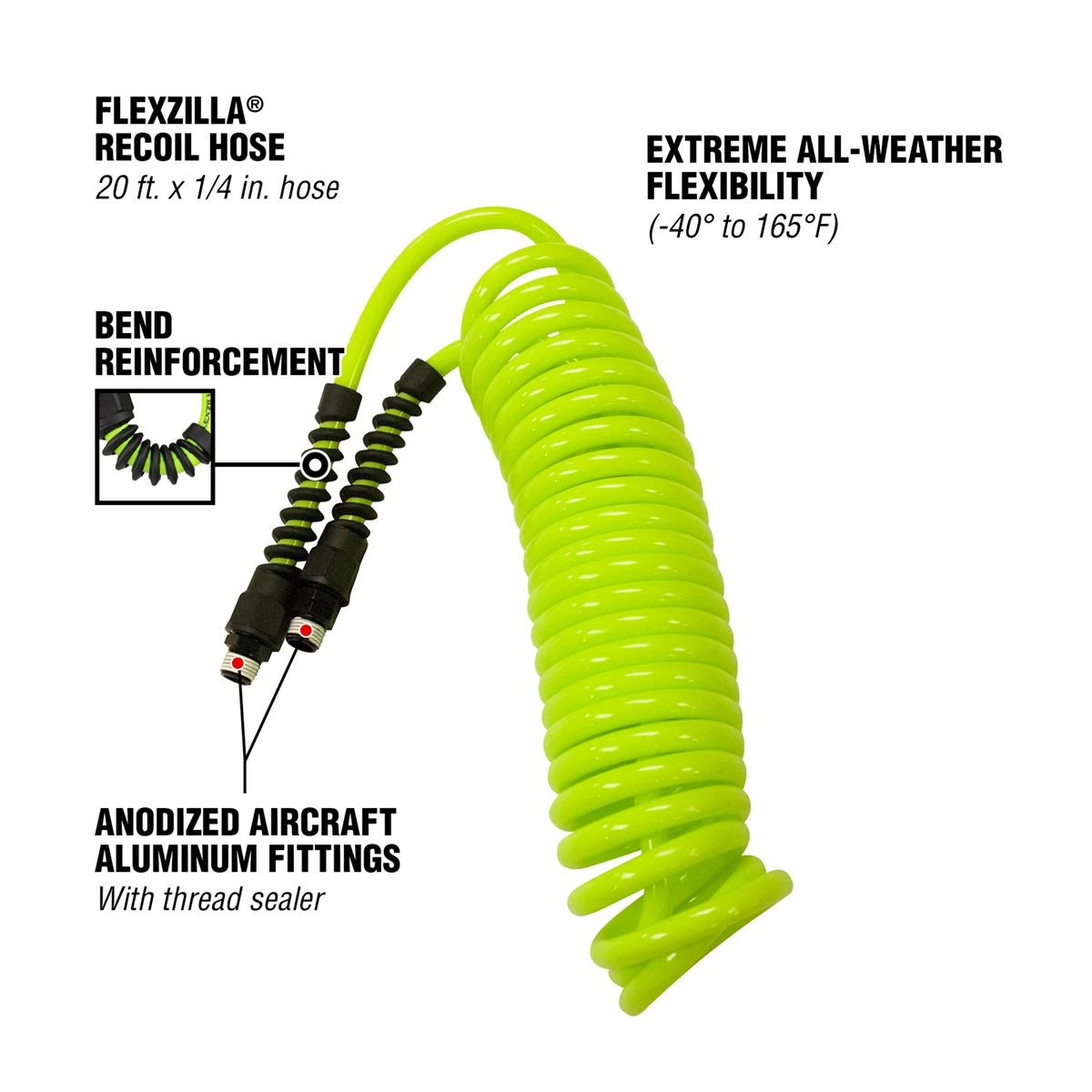

- Polyurethane recoil hose with 1/4-inch inside diameter and 20-foot nominal length.
- Reusable 1/4-inch MNPT fittings with pre-applied thread sealer.
- 16-inch tool tail with swivel; 8-inch compressor tail with rigid fitting.
- 120 PSI working pressure at 70°F; listed flexibility range -40°F to 165°F.
Before ordering
Match the male NPT ends and allow for coil tension, tail routing and movement. Follow the approved fitting-service procedure. The safety-factor statement and temperature-flexibility range do not increase the stated working limit.
Product questions and answers
Which end belongs at the tool?
The listing identifies the 16-inch tail with swivel as the tool end, and the 8-inch rigid tail as the compressor end.
Can it run at 300 PSI like another Flexzilla hose?
No. This model lists 120 PSI at 70°F. Do not transfer another hose's pressure rating.
Does twenty feet guarantee twenty feet of comfortable working reach?
No. Recoil tension and routing affect usable extension. Follow the manufacturer's extension limits and allow movement clearance.
