Flexzilla L8711FZ Dual-Arm 3/8-Inch x 50-Foot Reel

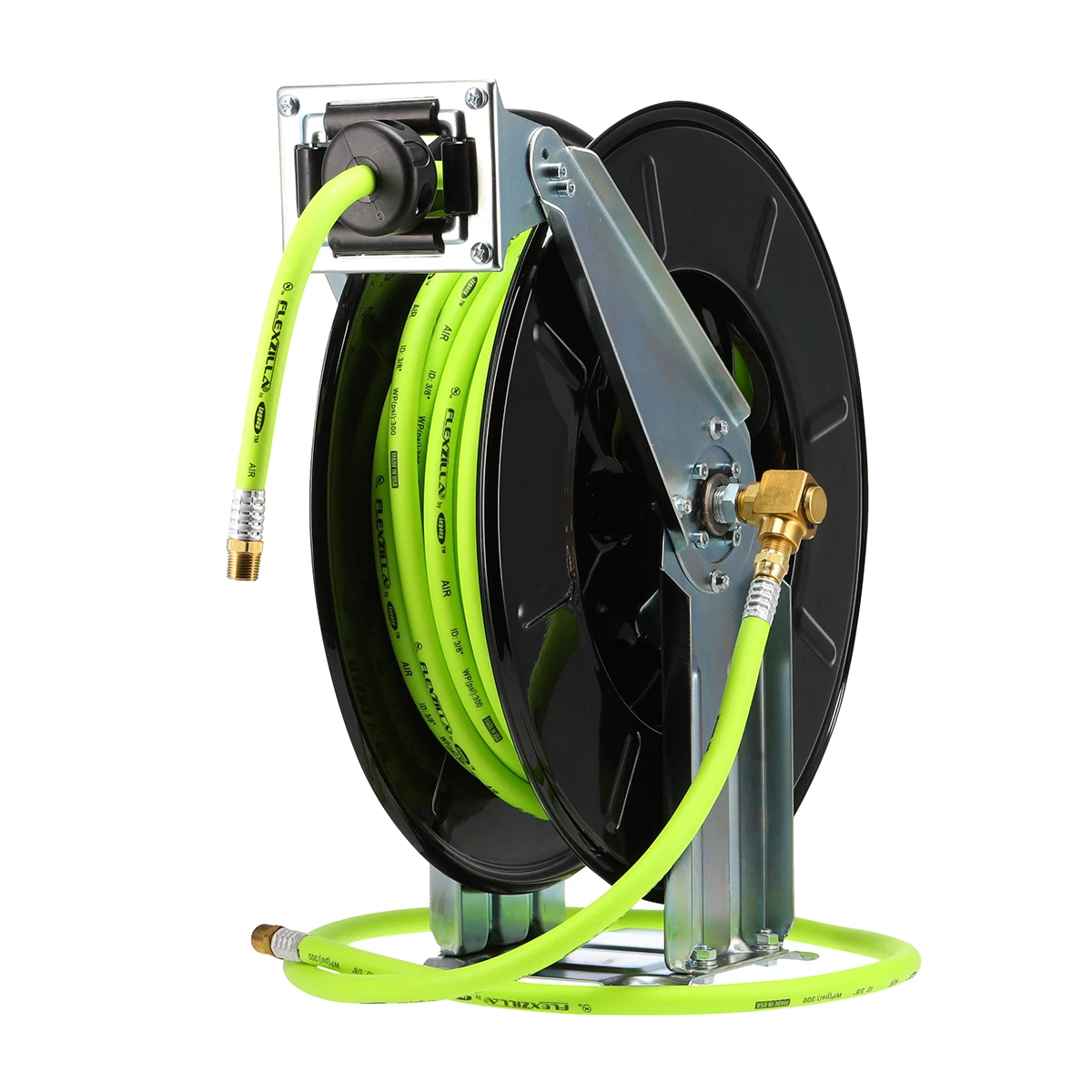

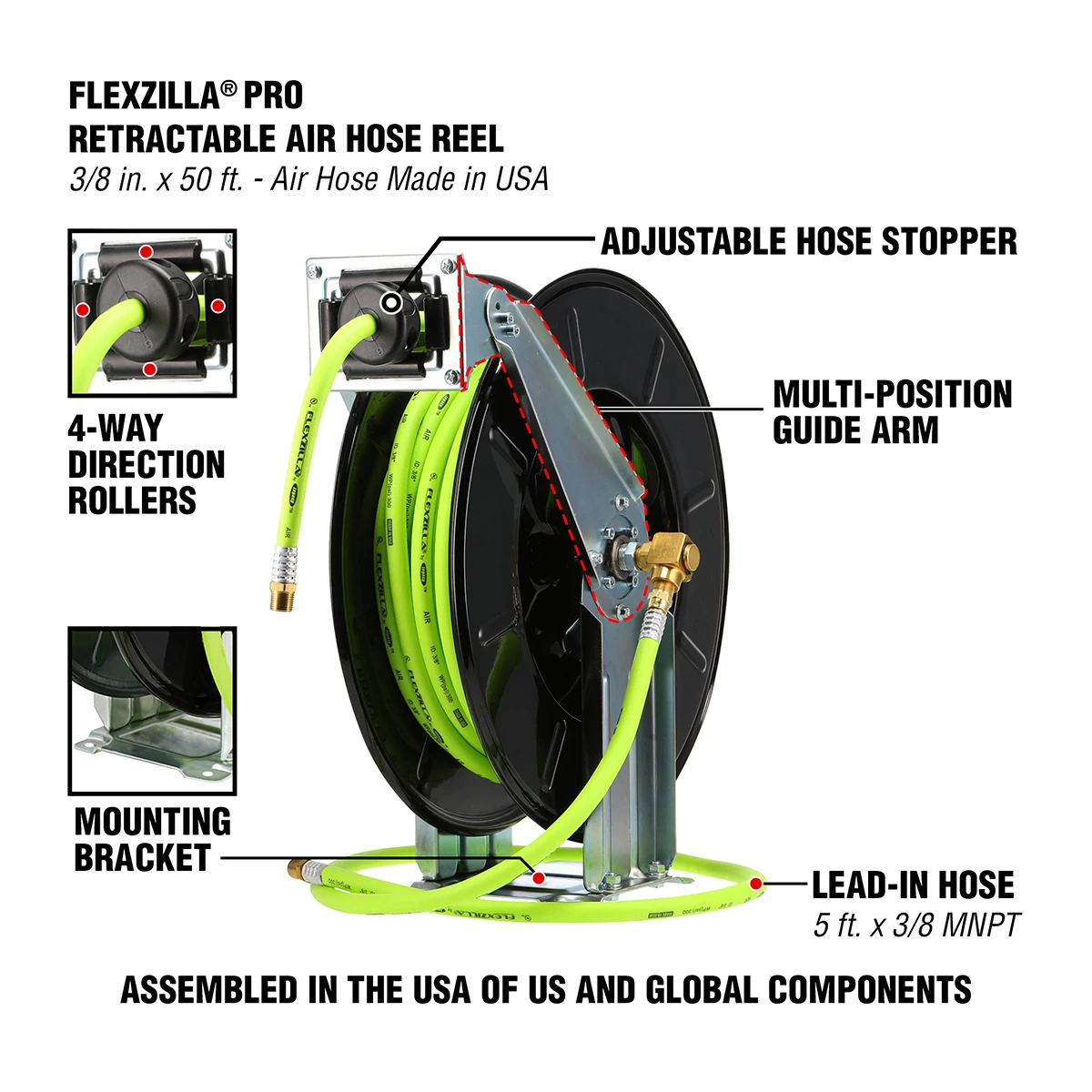

The Flexzilla L8711FZ uses an open-face reel with dual axle-arm support and 50 feet of 3/8-inch hybrid-polymer hose. The exposed reel and adjustable guide-arm layout are useful distinctions when planning hose direction and access for a shop or mobile mounting arrangement.
Specifications and included details
- Open-face dual-arm steel reel with powder-coated construction.
- 50-foot hose, 3/8-inch inside diameter and separate 5-foot x 3/8-inch lead-in.
- Listed reel inlet 3/8-inch MNPT swivel and hose outlet 3/8-inch MNPT.
- Working pressure 300 PSI at 70°F; listed hose flexibility range -40°F to 140°F.
Before ordering
Confirm mounting surface, hardware and full reel dimensions before installation; the available dimension fields do not provide reliable units. Plan the hose pull direction around the guide arm and check both threaded connections. Pressure limits must be checked for actual conditions.
Product questions and answers
Does the 50-foot length include the lead-in?
The product details list a 50-foot working hose and a separate 5-foot lead-in. Plan working reach from the reel using the working-hose length.
Are the fittings 1/4 inch like some other 3/8-inch hoses?
This model lists 3/8-inch MNPT for both the reel inlet swivel and hose outlet. Do not copy fitting assumptions from a different hose model.
Does dual-arm support determine every suitable mobile mounting?
No. It describes the reel support arrangement. Confirm mounting hardware, surface strength, clearance and the manufacturer's installation requirements.
