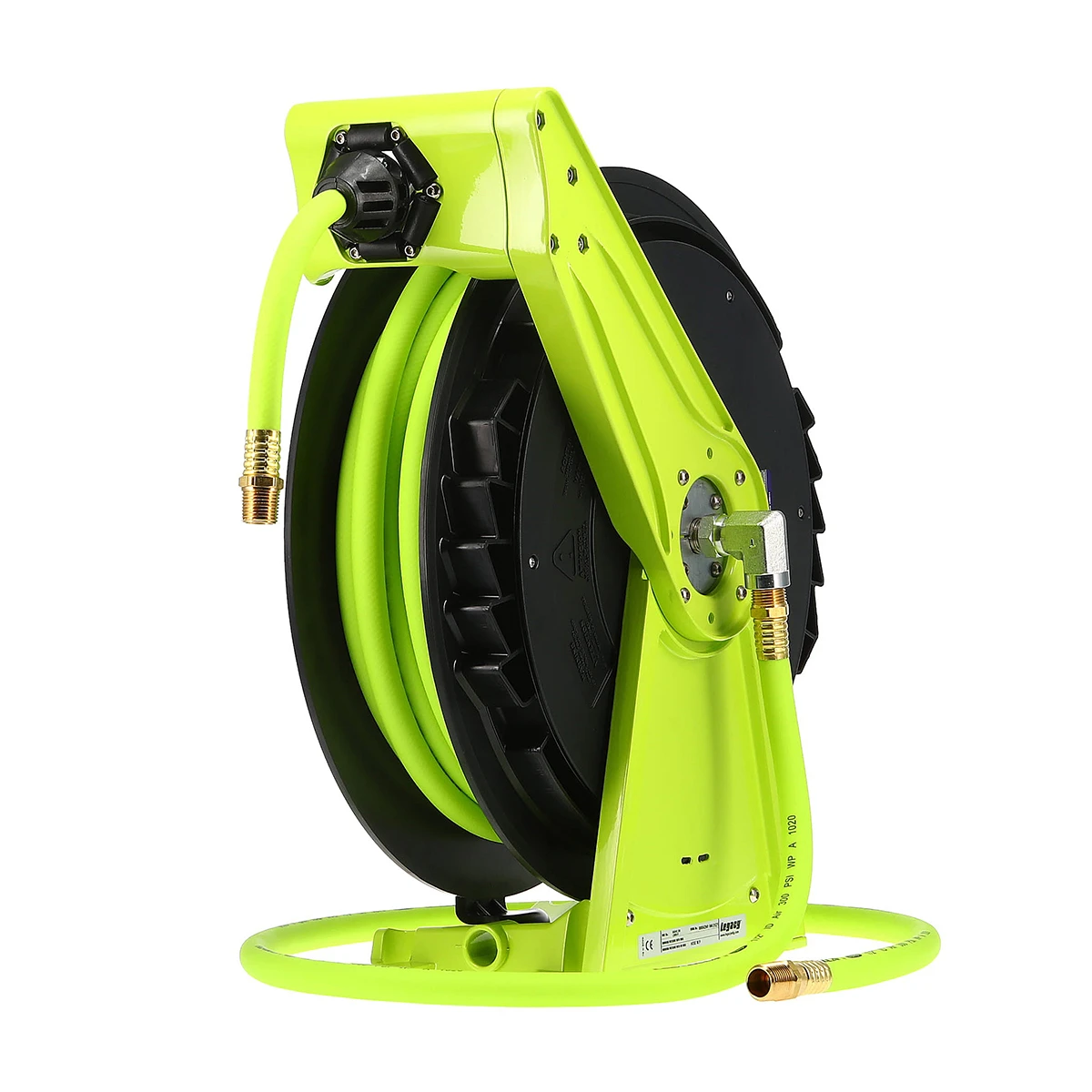

Flexzilla L8041FZ 1/2-Inch x 50-Foot Open Reel
The Flexzilla L8041FZ combines a single-arm open-face reel with a 50-foot, 1/2-inch hose. Select it by bore, connection size and the space needed for the guide arm rather than assuming every 50-foot reel provides the same air path or mounting envelope.
Specifications and included details

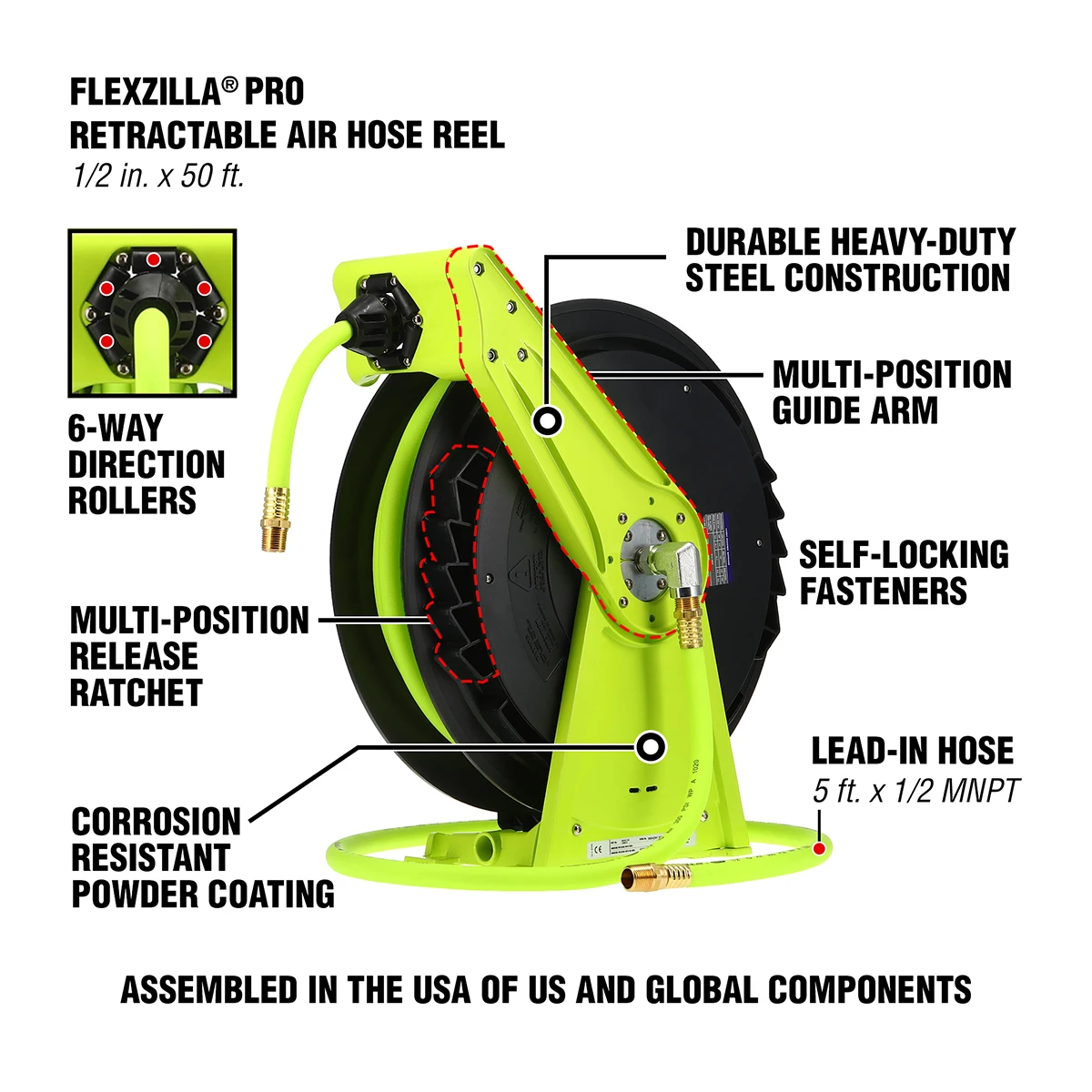

- Single axle-arm, open-face steel reel with powder-coated construction.
- 50-foot hybrid-polymer hose with 1/2-inch inside diameter and 5-foot x 1/2-inch lead-in.
- Listed inlet 1/2-inch MNPT swivel and hose outlet 1/2-inch MNPT.
- Working pressure 300 PSI at 70°F; listed flexibility range -40°F to 140°F.
Before ordering

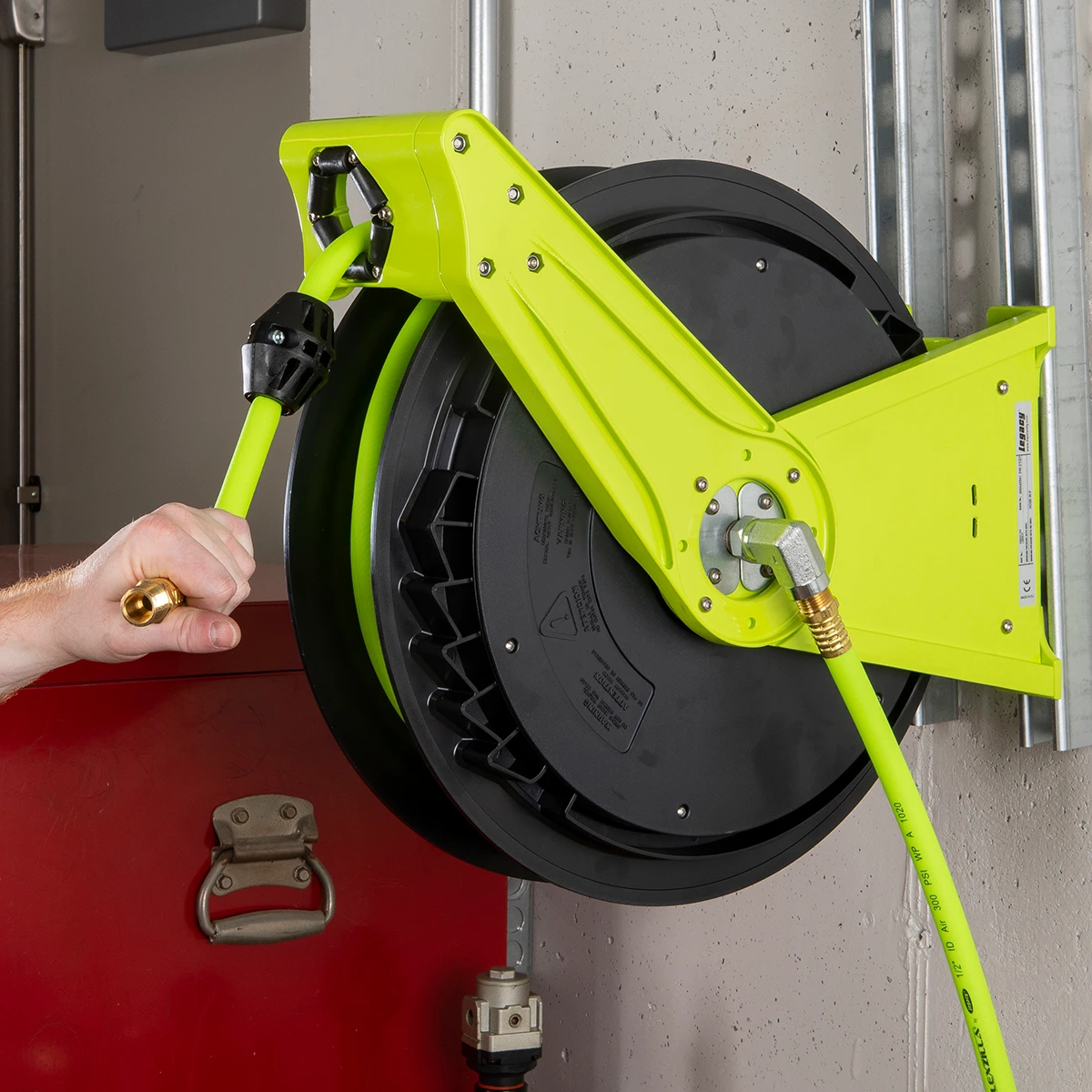

Confirm reel dimensions and approved mounting hardware before installation. Compare delivered airflow through the complete setup, including supply and couplings. The hose bore and threaded ends are separate specifications even when both are labeled 1/2 inch.
Product questions and answers
Does the 1/2-inch bore establish enough air for any tool?
No. Compressor delivery, working pressure, hose route and fitting restrictions all affect supply. Compare the complete system with the tool demand.
What lead-in hose is listed?
The details identify a separate 5-foot x 1/2-inch lead-in hose in addition to the 50-foot working hose.
Is this the dual-arm 3/8-inch L8711FZ?
No. L8041FZ is described as a single-arm reel with 1/2-inch hose and 1/2-inch MNPT connections. L8711FZ is a separate dual-arm, 3/8-inch model.
Browse Air Tools > Compressed Air Hoses & Accessories to compare other options.
