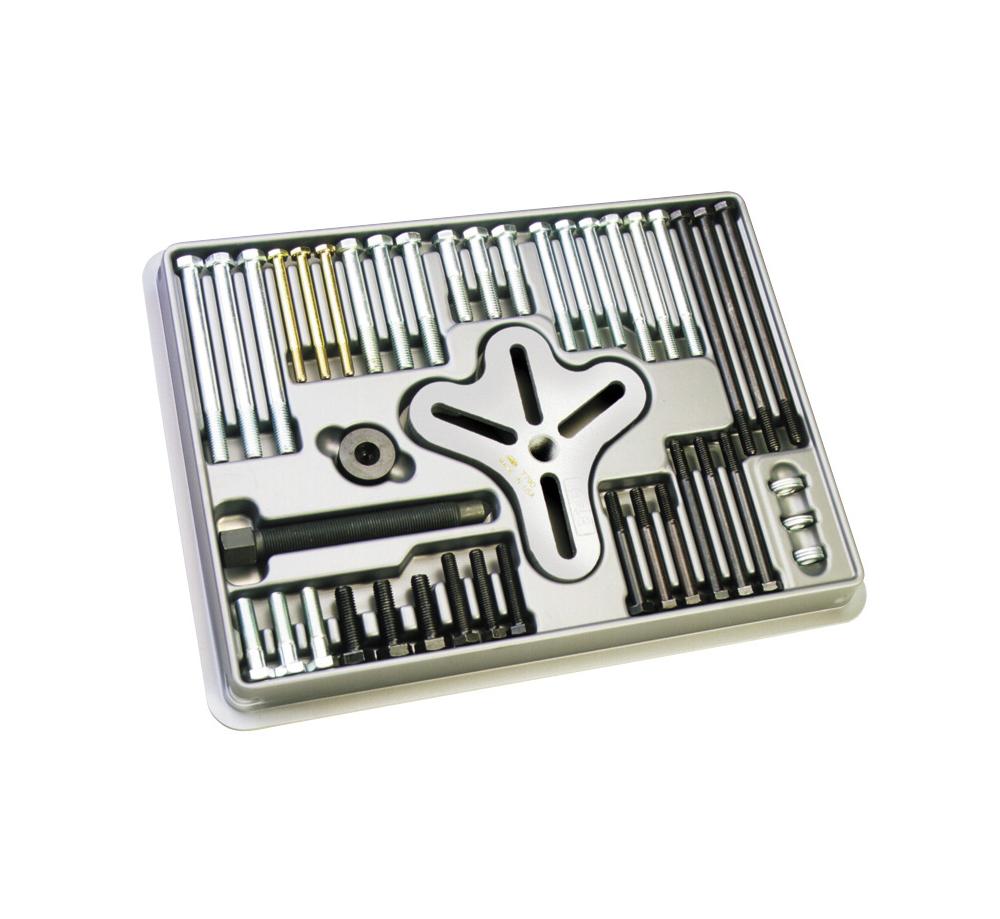

Flange-Type 48 Piece Puller Set (Grade 5)
• Versatile puller capable of removing a wide variety of components having tapped pulling holes, including harmonic balancers, gears, crankshaft pulleys, etc.
• Capable of handling 2- or 3-way bolt pulling applications.
• Works on many cars, pickups, SUVs, and small engines.
Contents of set:
• Puller flange: adapts to bolt circle dia. of 1-1/2" to 4-5/8".
• Forcing screw: 5-5/8" lg., 5/8-18 thread.
• Shaft protector: 1-3/16" dia. x 3/4" thick.
• Three each of the following flat washers:
1/4"; 5/16"; 3/8".
• Three each of the following bolt sizes:
1/4"-28 x 3" lg.
5/16"-24 x 3" lg.
5/16"-18 x 3-1/2" lg.
5/16"-18 x 6" lg.
3/8"-24 x 1-1/2" lg.
3/8"-16 x 2" lg.
3/8"-16 x 3" lg.
3/8"-16 x 4-1/2" lg.
M8 x 1.25 x 45 mm lg.
M8 x 1.25 x 65 mm lg.
M8 x 1.25 x 90 mm lg.
M10 x 1.5 x 35 mm lg.
Product identification
- Brand: OTC
