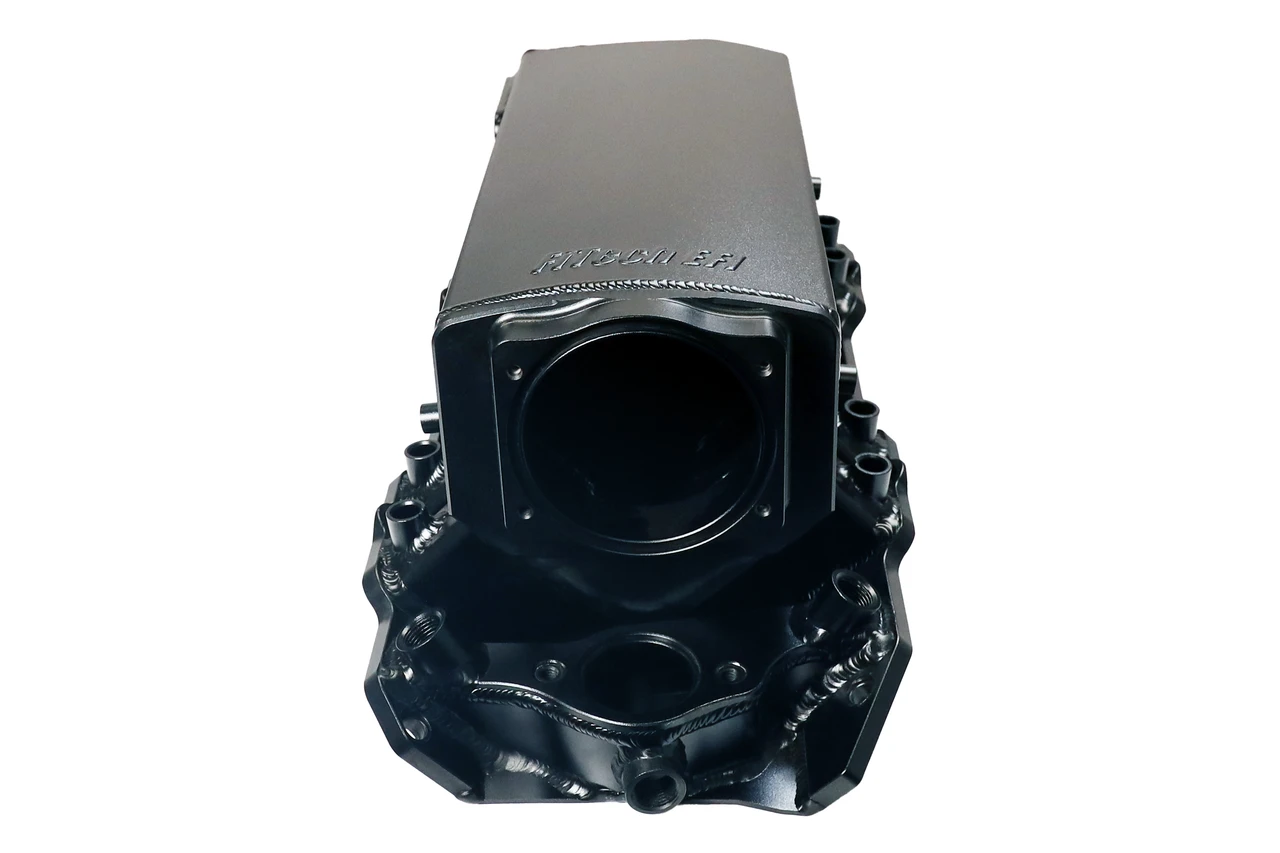

FiTech Ultra Ram BBC Intake Manifold Replacement (38302-1)
The FiTech Ultra Ram BBC Intake Manifold Replacement (38302-1) is designed for Big Block Chevy engines with rectangular port cylinder heads. This product provides a solid foundation for your fuel-injected performance build, featuring robust T-6061 aluminum construction and a sleek black anodized finish. It includes pre-installed fuel rails with AN fittings and fuel crossover, ready for your choice of injectors. This manifold is engineered for use with a 102mm throttle body, allowing for high airflow and increased performance.
KEY FEATURES AND BENEFITS:
Precise Fit: Specifically designed for Big Block Chevy engines with rectangular port cylinder heads, ensuring optimal airflow.
Included Fuel Rails: Features billet fuel rails with AN fittings and a fuel crossover for simplified installation.
Durable Construction: Made from T-6061 aluminum for strength and longevity, with a black anodized finish for a clean look.
High Airflow Design: Compatible with 102mm throttle bodies to maximize performance.
Stable Base: Provides a solid platform for high horsepower fuel-injected engines.
Cylinder Head Configuration: Rectangular Port
Fuel Injection Style: Throttle body
Intake Section Included: Complete
Throttle Body Bore Size: 102mm
Injectors Included: No
Multi-Port Fuel Rails Included: Yes
Material: Aluminum
Finish: Black anodized
Dimensions: 20 × 14 × 8 in
Preparation: Ensure your Big Block Chevy engine has rectangular port cylinder heads.
Installation: Mount the FiTech 38302-1 intake manifold onto your engine, aligning the ports and securing it with the included hardware.
Fuel Rail Setup: Connect your chosen fuel injectors to the provided fuel rails.
Fuel System Connection: Attach the necessary fuel lines to the AN fittings on the fuel rails, ensuring proper fuel crossover.
Throttle Body Mounting: Install a 102mm throttle body onto the manifold's inlet.
Sensor Installation: Mount any required sensors, such as a throttle position sensor (TPS) and manifold absolute pressure (MAP) sensor.
Final Checks: Verify all connections are secure and leak-free before starting the engine.
BENEFITS OF USING THE FITECH ULTRA RAM BBC INTAKE MANIFOLD REPLACEMENT (38302-1):
High-Performance Foundation: Offers a solid platform for building a fuel-injected Big Block Chevy engine.
Simplified Fuel System Setup: The included fuel rails make installation straightforward.
Maximized Airflow: Compatible with a 102mm throttle body for enhanced performance.
Strength and Durability: Aluminum construction ensures longevity and reliability.
Professional Appearance: The black anodized finish adds a sleek, polished look.
Optimal Performance: Rectangular port design ensures precise fit and performance.
T-6061 Aluminum Construction: Provides superior strength and durability.
Black Anodized Finish: Enhances corrosion resistance and visual appeal.
Billet Fuel Rails: Comes with AN fittings and fuel crossover for easy connection.
Designed for Rectangular Port Engines: Specifically tailored for Big Block Chevy configurations.
102mm Throttle Body Compatibility: Allows for high airflow for performance tuning.
Complete Intake Section: Ready for installation with all necessary components.
No EGR Provision: Streamlined design for performance applications.
Lightweight Design: Weighs only 11 lbs for efficient handling.
Product identification
- Brand: FiTech
- Model / MPN: 38302-1
