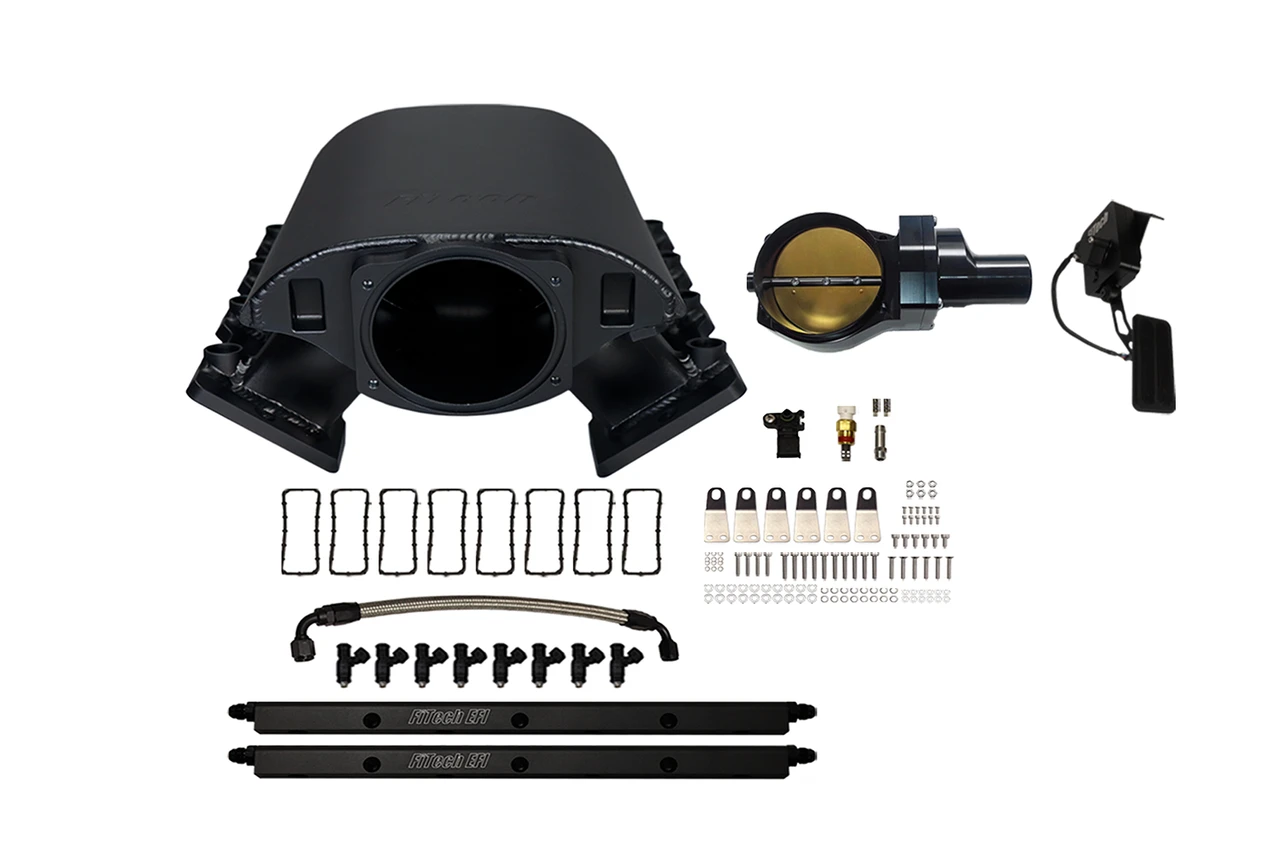

FiTech Ultimate Rebel LS 1000 HP Loaded/Short Cathedral Intake (70070)
KEY FEATURES AND BENEFITS:
Designed for Cathedral Port LS Engines: Compatible with LS1, LS2, and LS6.
High Horsepower Capability: Supports builds up to 1000 HP.
Complete Kit: Includes 102mm throttle body, fuel rails, and injectors.
Optimized Performance: Designed for a 1,500-6,500 RPM operating range.
Durable Construction: Aluminum body with black anodized finish for longevity.
Cylinder Head Configuration: Cathedral Port LS1/LS2/LS6
Injection Style: Multi-port
Basic Operating RPM Range: 1,500-6,500
Throttle Body Bore Size: 102mm
Engine Block Deck Height: Standard Deck
Injectors Included: Yes
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Runners Included: Yes
Runners Removable: No
Base Material: Aluminum
Base Color: Black anodized
Compatibility: GM LS1, LS2, LS6 engines with cathedral port heads
Quantity: Sold as a kit
Preparation: Ensure the engine is cool and disconnected from the battery. Remove the existing intake manifold and throttle body.
Installation: Install the FiTech 70070 intake manifold onto the cylinder heads, ensuring proper gasket placement.
Fuel System: Attach the included fuel rails and injectors, connecting the fuel lines securely.
Throttle Body: Mount the 102mm throttle body to the intake manifold, connecting the throttle linkage or drive-by-wire system.
Connections: Connect all necessary sensors and vacuum lines.
Testing: Reconnect the battery and start the engine, checking for leaks and proper operation.
Tuning: Adjust the engine tuning as needed to optimize performance with the new intake system.
BENEFITS OF USING THE FITECH ULTIMATE REBEL LS 1000 HP LOADED/SHORT CATHEDRAL INTAKE (70070):
Increased Airflow: Enhances engine performance and efficiency.
Complete Kit: Simplifies installation without the need for additional components.
Durable Construction: Aluminum body ensures longevity and reliability.
Enhanced Engine Bay Appearance: Black anodized finish adds a sleek, professional look.
Increased Horsepower Potential: Supports up to 1000 HP for high-performance applications.
Integrated intake runners for optimized airflow
Large 102mm throttle body to allow for increased air volume
Black anodized finish for corrosion resistance
Designed for a standard deck height LS engine
Product identification
- Brand: FiTech
- Model / MPN: 70070
