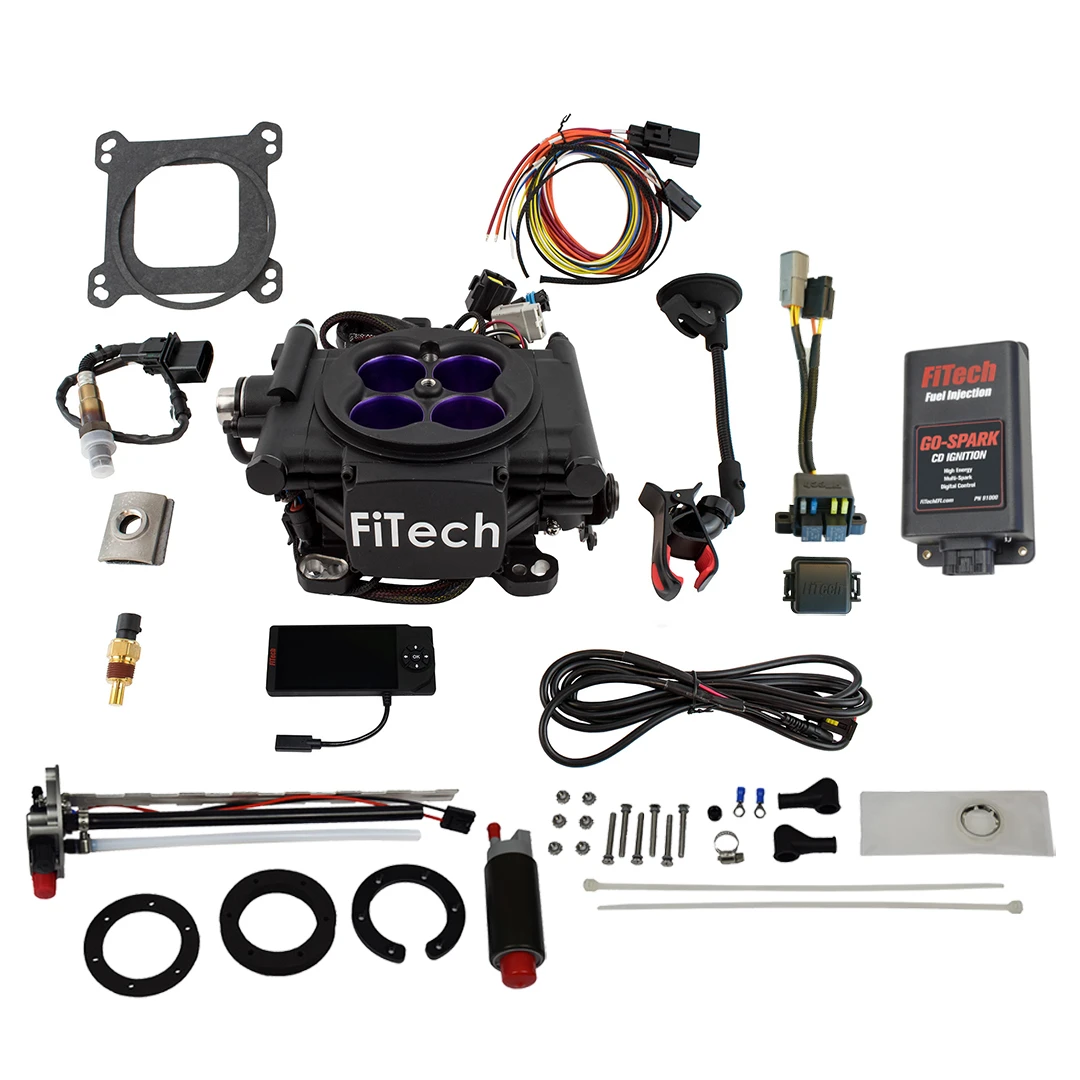

FiTech MeanStreet EFI 800HP Matte Black w/ Retrofit & CDI Box (93608)
KEY FEATURES AND BENEFITS:
High Power Capability: Supports up to 800 HP with a self-tuning feature, simplifying the tuning process.
Go Fuel In-Tank Module: Features a 340 lph fuel pump, compatible with gasoline, E85, methanol, ethanol, and alcohol.
Integrated Components: Includes an ECU, MAP sensor, and fuel pressure regulator for efficient operation.
Nitrous Compatibility: Designed to work seamlessly with nitrous oxide systems.
Maximum Horsepower: 800 HP
Injection Style: Throttle body (4-barrel square bore)
Fuel Pump Flow: 340 lph (in-tank)
Injector Size: 62 lbs/hr (8 injectors)
Throttle Body: 850 cfm, 43.00mm venturi
Fuel Compatibility: Gasoline, E85, methanol, ethanol, alcohol
Metering: Speed density (MAP-N)
Preparation: Disconnect the vehicle's battery. Remove the existing carburetor and intake manifold (if needed).
Installation: Mount the FiTech throttle body onto the intake manifold. Install the included fuel pump module in the fuel tank.
Wiring: Connect the wiring harness to the vehicle's electrical system, following the provided instructions. Connect sensors (oxygen, MAP, IAT, TPS).
Fuel Lines: Connect the fuel lines to the throttle body and fuel pump module.
Initial Setup: Connect the handheld display to the ECU. Input basic engine information.
Fine Tuning: Use the handheld display to make any necessary adjustments to the fuel settings.
BENEFITS OF USING THE FITECH MEANSTREET EFI 800HP MATTE BLACK W/RETROFIT & CDI BOX (93608):
Simplified Tuning: The self-tuning feature makes adjustments easier.
Increased Fuel Flexibility: Compatible with various fuel types for versatile applications.
Easy Installation: Integrated components and in-tank fuel pump module simplify setup.
Reliable Performance: Designed to deliver consistent performance for high-horsepower engines.
Integrated ECU: Includes a MAP sensor and fuel pressure regulator for optimal performance.
Throttle Body: 850 CFM with a 43mm venturi diameter for effective fuel-air mixture.
Throttle Body Flange: 4-barrel square bore for easy installation.
Handheld Display: Included for user adjustments and monitoring.
Material: Cast aluminum throttle body with a matte black finish for durability and aesthetics.
Product identification
- Brand: FiTech
- Model / MPN: 93608
