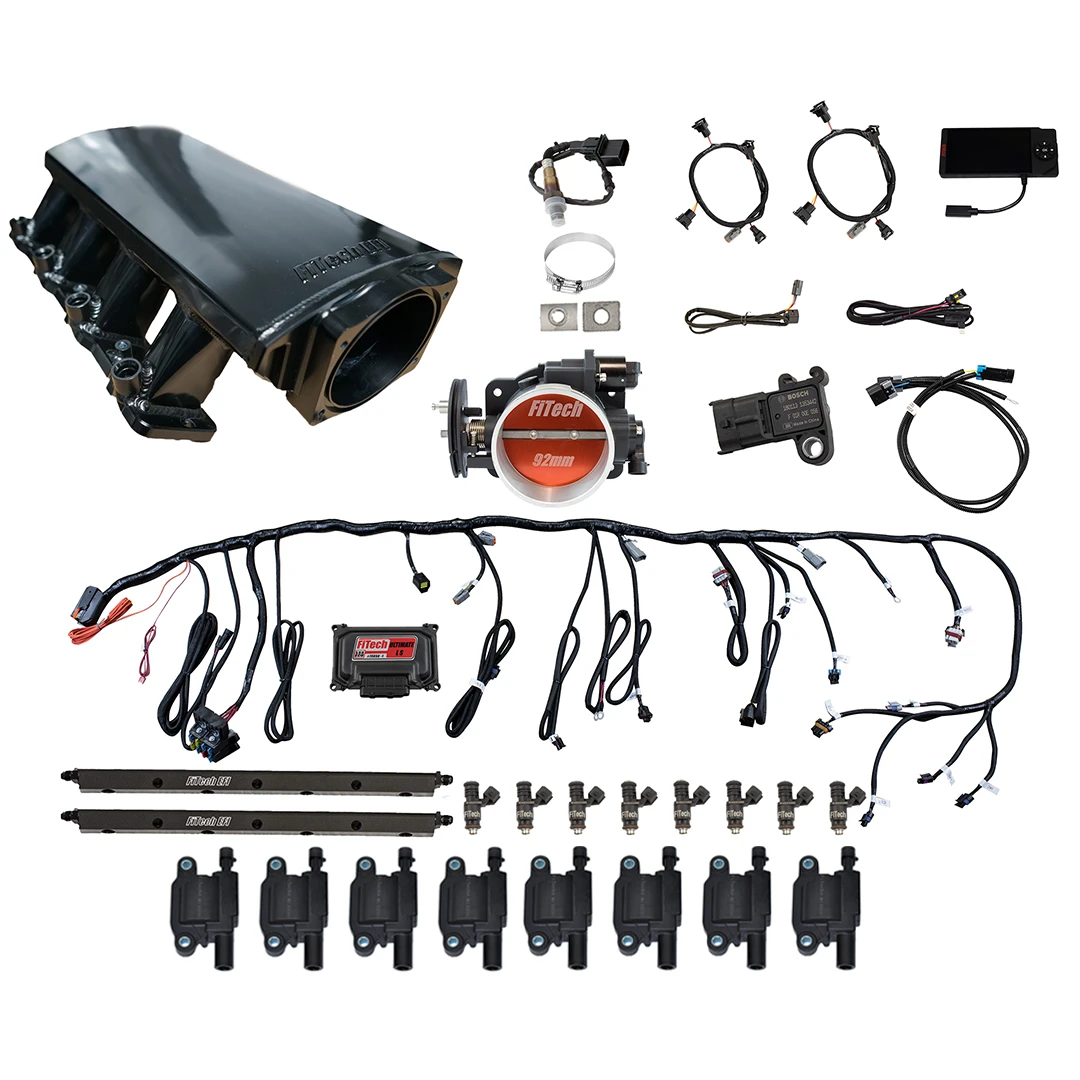

FiTech LS3/L92 500HP EFI Kit w/Coil Pack Set (78011)
The FiTech LS3/L92 500HP EFI Kit w/Coil Pack Set (78011) is engineered to modernize your LS engine. This kit replaces traditional carburetion with electronic fuel injection, offering improved performance and fuel efficiency. Designed for LS3/L92 intake manifolds, it's rated for up to 500 horsepower, making it suitable for a range of performance applications. The system features a self-learning ECU, simplifying tuning and setup.
KEY FEATURES AND BENEFITS:
Self-Learning ECU: Adapts to your engine's characteristics, optimizing fuel and spark for efficiency.
Throttle Body: Includes a 92mm throttle body and high-volume fuel rails for optimal airflow.
Plug-and-Play Wiring: Simplifies installation with an easy-to-connect harness.
Power Adder Compatibility: Supports boost and nitrous oxide for enhanced performance.
Maximum horsepower: 500 HP
Injection style: Multi-port
Timing control: Yes
Power adder compatibility: Yes (Boost/Nitrous oxide)
Fuel pump: Not included
Transmission controller: Not included
Metering style: Speed density (MAP-N)
Intake material: Aluminum (Black Anodized)
Throttle body: 92mm (Black)
Injectors: 36 lbs./hr.
Fuel types: Alcohol, Gasoline, Methanol, Flex
Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
Installation: Install the FiTech intake manifold and throttle body, securing them according to the manufacturer's instructions.
Fuel System: Connect the fuel rails and injectors, ensuring all connections are tight. Install a compatible fuel pump (not included) and fuel lines.
Wiring: Connect the plug-and-play wiring harness to the engine sensors, injectors, and ECU.
Sensor Installation: Install the included oxygen, MAP, IAT, and TPS sensors.
ECU Setup: Mount the ECU and touchscreen controller.
Initial Configuration: Follow the on-screen prompts on the touchscreen to input basic engine parameters.
Start and Learn: Start the engine and allow the self-learning ECU to adjust fuel and spark settings.
Fine Tuning: After initial learning, make adjustments as needed using the touchscreen controller.
BENEFITS OF USING THE FITECH LS3/L92 500HP EFI KIT W/COIL PACK SET (78011):
Improved engine performance and throttle response.
Simplified tuning with the self-learning ECU.
Modern engine management with a digital interface.
Direct replacement for carburetors.
Compatible with power adders for increased performance.
Durable Construction: Black anodized aluminum for corrosion resistance.
High-Flow Throttle Body: 92mm cable-operated design for optimal airflow.
Oxygen Sensor: Bosch wideband-controlled for accurate readings.
Stainless Steel Bung: Comes with a stainless steel oxygen sensor bung.
Coil Pack Compatibility: Works with both car and truck coil packs.
Fuel System Design: AN fittings and fuel crossover for reliable connections.
Custom Compatibility: Designed for engines with at least 6 inches of vacuum at idle.
Signal Compatibility: 24X and 58X crank and cam compatible.
Data Logging: Programmable touchscreen handheld controller with data logging features.
Product identification
- Brand: FiTech
- Model / MPN: 78011
