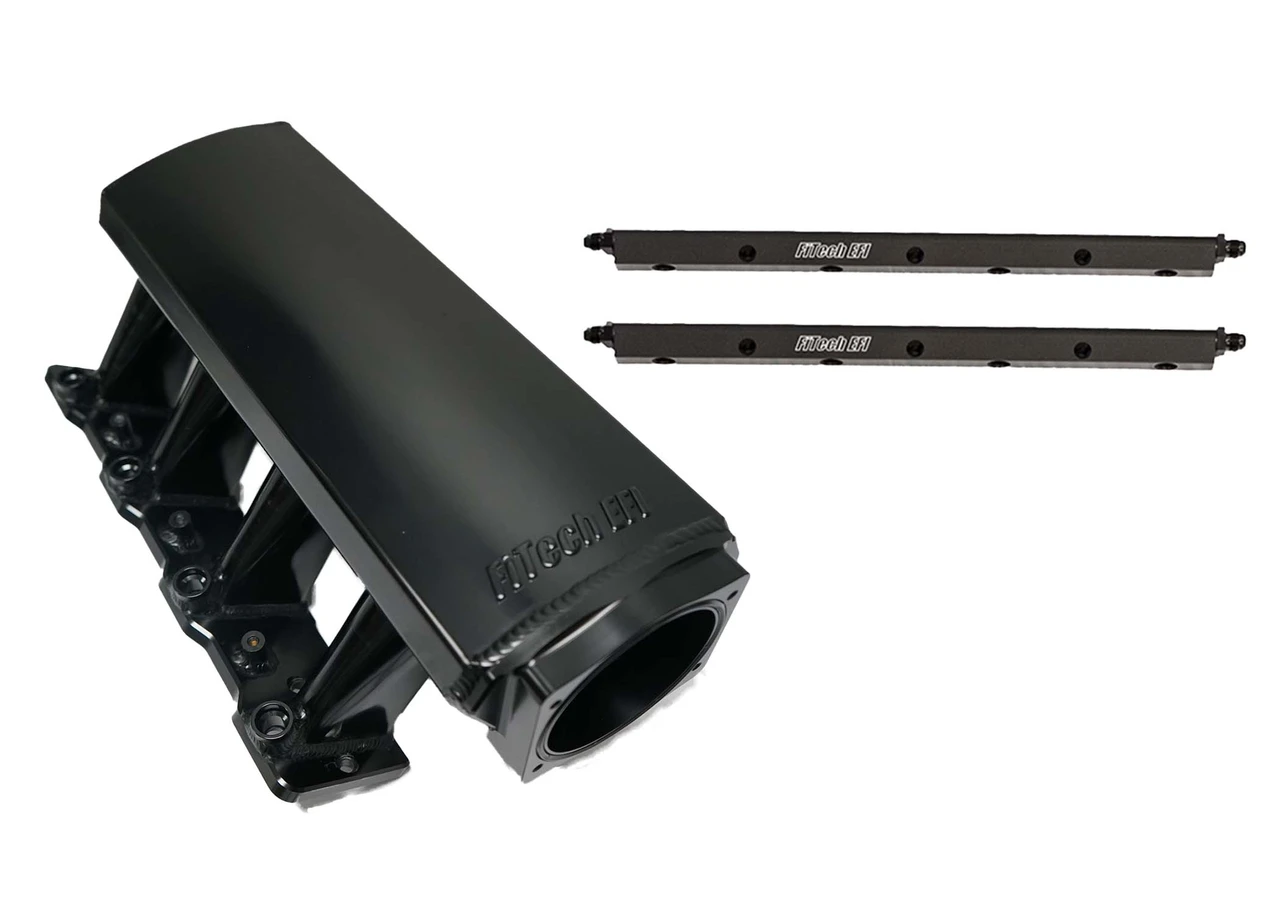

FiTech LS1 Tall Aluminum Intake Manifold w/ Rails (70066)
The FiTech LS1 Tall Aluminum Intake Manifold w/ Rails (70066) provides a complete induction solution for LS engines. Designed for both DIY enthusiasts and professional tuners, this system simplifies the process of upgrading or building your LS engine, getting you on the road faster. This kit includes all necessary hardware and fuel rails, making it a comprehensive package.
KEY FEATURES AND BENEFITS:
Engine Compatibility: Designed for LS1, LS2, and LS6 cathedral port cylinder heads.
Operating Range: Offers a 1,500 to 6,500 RPM range for optimal performance.
Increased Airflow: Tall design enhances airflow to support high-performance applications.
Durable Construction: Made from T-6061 aluminum with a black anodized finish for strength and aesthetics.
Power Rating: Rated for 500 HP LS1 engines, providing robust performance capabilities.
Complete Package: Comes with all necessary hardware to complete the induction system.
Cylinder Head Configuration: Cathedral Port LS1/LS2/LS6
Fuel Injection Style: Multi-port
Basic Operating RPM Range: 1,500-6,500
Throttle Body Bore Size: 92mm
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Base Material: Aluminum
Base Color: Black anodized
Dimensions: 29 × 17 × 11 in
Preparation: Ensure the engine is cool and disconnected from the battery. Remove the existing intake manifold and related components.
Installation: Install the FiTech 70066 intake manifold onto the engine, using the provided o-ring seals and hardware.
Fuel Rail Connection: Connect the fuel rails to the fuel lines using the AN fittings and fuel crossover.
Throttle Body and Injectors: Install a 92mm throttle body (not included) and injectors (not included) onto the manifold.
Final Connections: Connect all necessary sensors and vacuum lines.
BENEFITS OF USING THE FITECH LS1 TALL ALUMINUM INTAKE MANIFOLD W/ RAILS (70066):
Simplified and efficient upgrade process for LS engines.
Reduces the need for sourcing individual components, saving time and effort.
Optimized airflow and tall design contribute to improved engine performance.
T-6061 aluminum construction provides durability and long-lasting use.
T6061 Aluminum Construction: Ensures a robust and lightweight manifold.
Black Anodized Finish: Provides corrosion resistance and a sleek appearance.
Billet Fuel Rails: Includes high-quality fuel rails with AN fittings and fuel crossover.
Designed for Cathedral Port LS Heads: Ensures a perfect fit and compatibility.
Tall Manifold Design: Facilitates increased airflow for performance applications.
Machined Supplemental Bosses: For added versatility and performance.
Includes O-Ring Seals and Hardware: All necessary components for a complete installation.
Designed for 500HP LS1 Applications: Tailored for high-performance setups.
Product identification
- Brand: FiTech
- Model / MPN: 70066
