FiTech fuel pump details
FiTech In Tank Fuel Pump 600 HP Module (50014)
KEY FEATURES AND BENEFITS:
Provides a 255 LPH electric in-tank fuel pump, capable of supporting engines up to 600 horsepower.
Universal fit design, compatible with fuel tanks ranging from 6 to 15 inches in depth.
Constructed with a billet aluminum top assembly for enhanced durability.
Includes a separate vent port to facilitate easy routing near the fuel fill tube.

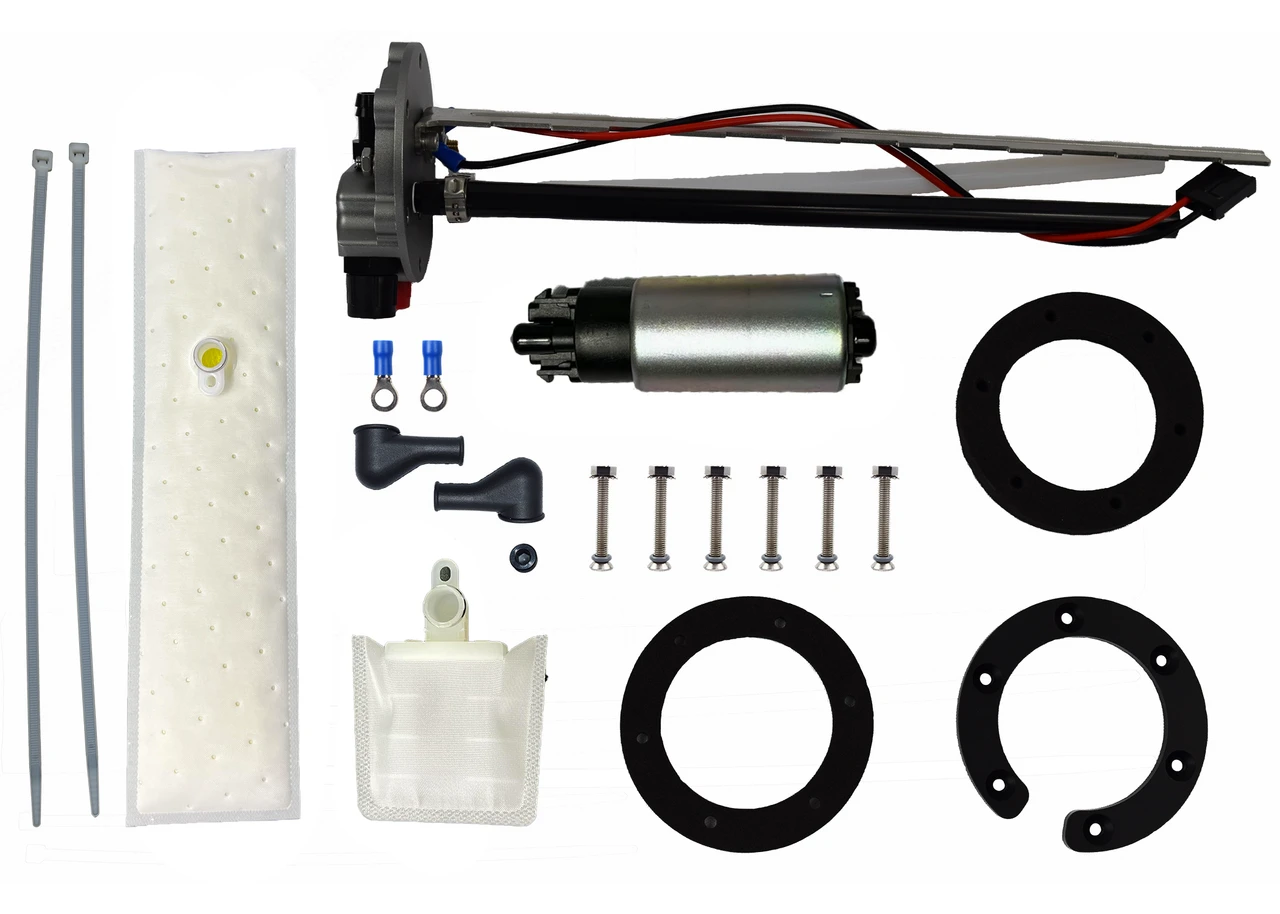

Comes with gaskets, terminals, clamps, and mounting hardware for a complete installation.
Provides two fuel sock/filter sizes for proper fuel filtration.
Fuel Pump Type: Electric In-tank
Flow Rate: 255 LPH (67 GPH)
Fuel Pressure: 58 psi
Inlet/Outlet Size: -6 AN O-ring
Tank Depth Compatibility: 6 to 15 inches
Horsepower Compatibility: Up to 600hp
Compatibility: TANKS Inc. fuel tanks
Fuel Pressure Regulator: Not included
Sending Unit: Not included
Preparation: Ensure the fuel tank is empty and clean. Disconnect the vehicle's battery.
Measurement: Measure the depth of your fuel tank to confirm compatibility (6-15 inches).
Assembly: Assemble the FiTech 50014 module according to the provided instructions.
Installation: Cut the pump bracket to the correct length for your tank depth.
Placement: Install the module into the fuel tank, securing it with the provided hardware.
Wiring: Connect the electrical terminals to the vehicle's wiring system.
Testing: Reconnect the battery and test the fuel pump for proper operation and any leaks.
Verification: Verify local emission regulations.
BENEFITS OF USING THE FITECH IN TANK FUEL PUMP 600 HP MODULE (50014):
Ensures a consistent and reliable fuel supply for EFI systems.
In-tank design helps cool the fuel pump, extending its lifespan.
Reduces fuel pump noise compared to external pumps.
Minimizes the risk of fuel starvation, improving engine performance.
Simplified install for EFI conversions.
Parallel port orientation for simplified fuel line routing.
Cut-to-fit bracket design for adaptable tank installations.
Dual filter sock options for varied filtration needs.
Billet aluminum top for a strong and professional finish.
Threaded ports for secure fitting connections.
Designed to work with tanks from TANKS Inc.
Includes all required hardware for installation.
Product identification
- Brand: FiTech
- Model / MPN: 50014
Fuel pump module: see the listed specifications for this model.
