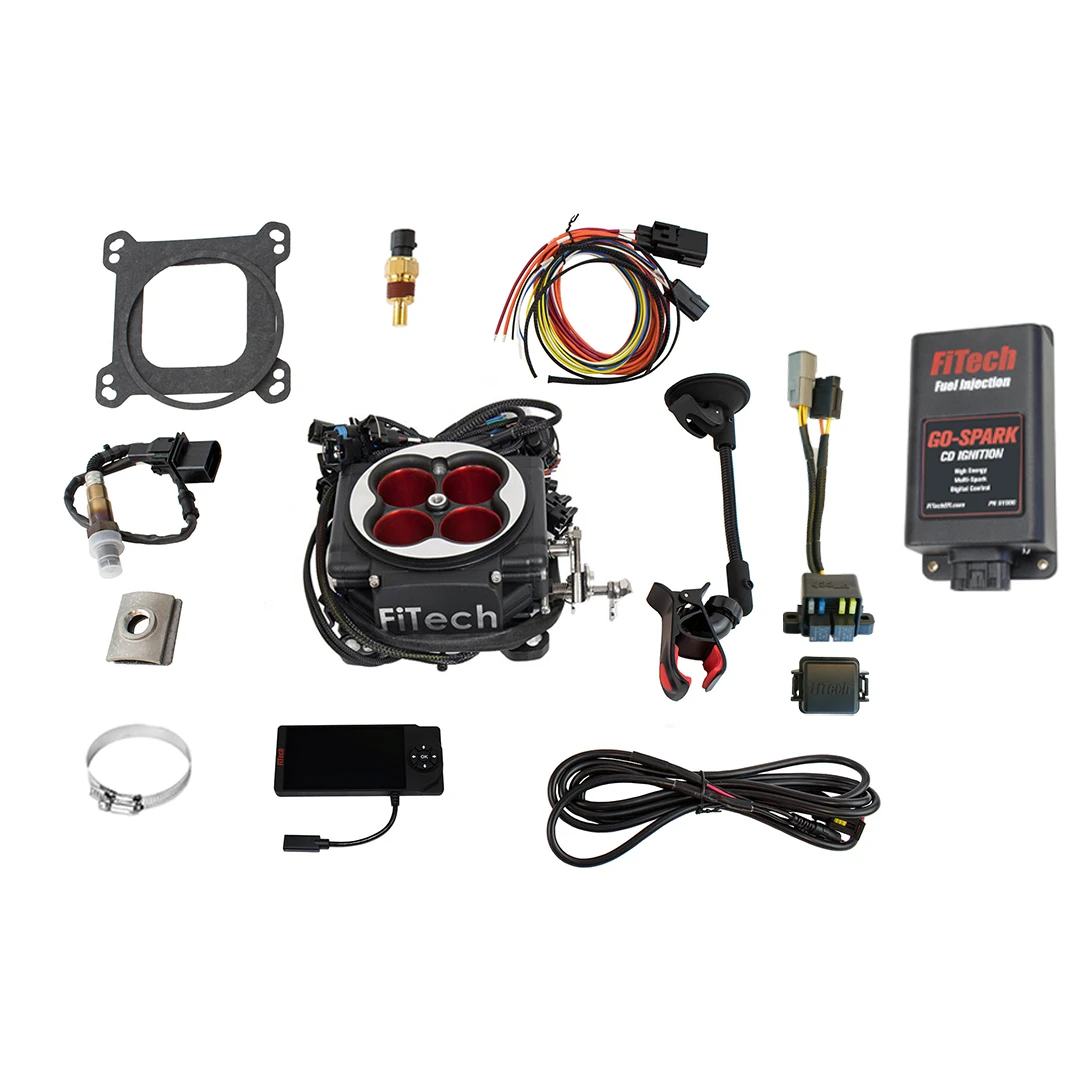

FiTech Go Port Stand Alone EFI Kit w/ CDI Box (93014)
The FiTech Go Port Stand Alone EFI Kit w/ CDI Box (93014) provides a straightforward conversion from carburetor to electronic fuel injection. This kit combines a high-flow throttle body with an integrated ECU and an enhanced ignition system, offering improved engine performance and efficiency. Designed for enthusiasts seeking a reliable and tunable EFI solution.
KEY FEATURES AND BENEFITS:
Fine-Tuning Options: Users can optimize the system for enhanced performance.
Go-Spark CD Ignition: Enhances combustion, improving power and throttle response.
Fuel Compatibility: Compatible with various fuels, offering flexibility for different engine setups.
Fuel Injection Style: Multi-port
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Airflow Rate: 850 CFM
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Venturi Diameter: 43.00mm
ECU Included: Yes
Timing Control Compatible: Yes
Power Adder Compatible: Yes (Boost/Nitrous oxide)
Fuel Type: Alcohol, Gasoline, Methanol, Flex
Ignition: Go-Spark CD ignition included
Display: 4.5 inch display included
Remove the Existing Carburetor: Detach the existing carburetor and intake manifold.
Install the FiTech Throttle Body: Mount the throttle body onto the intake manifold using the provided gaskets.
Mount the Go-Spark CD Ignition Box: Place in a suitable location.
Connect Wiring Harness: Attach to the throttle body, ignition box, and sensors (oxygen, MAP, IAT, TPS).
Install Fuel Rails and Injectors: (Not included).
Connect a Fuel Pump: (Not included) and fuel lines.
Connect the Hand-Held Touch Screen Controller: For easy setup.
Start the Engine: Follow the on-screen prompts for initial setup and self-tuning.
Fine-Tune the System: As needed using the touch screen controller.
BENEFITS OF USING FITECH GO PORT STAND ALONE EFI KIT W/ CDI BOX (93014):
Improved Engine Performance: Enhanced efficiency and responsiveness.
Enhanced Throttle Response: Provides better idle quality.
Simplified Conversion: From carburetor to EFI.
User-Friendly Self-Tuning: Capabilities for easy adjustments.
Flexibility: For various engine and fuel setups.
Enhanced Ignition: From the Go-Spark CD ignition system.
Integrated ECU: Within the throttle body for compact design.
4.5-Inch Hand-Held Touch Screen Controller: For easy setup and tuning.
Compatibility: With various distributor types.
Sensors Included: Oxygen, MAP, IAT, TPS.
Wiring Harness and Gaskets Provided: For a complete installation.
Speed Density Metering System: Ensures accurate fuel management.
4 Barrel Throttle Body Mounting Flange: For easy installation.
Ability to Run Multiple Fuel Types: Increases versatility.
Product identification
- Brand: FiTech
- Model / MPN: 93014
