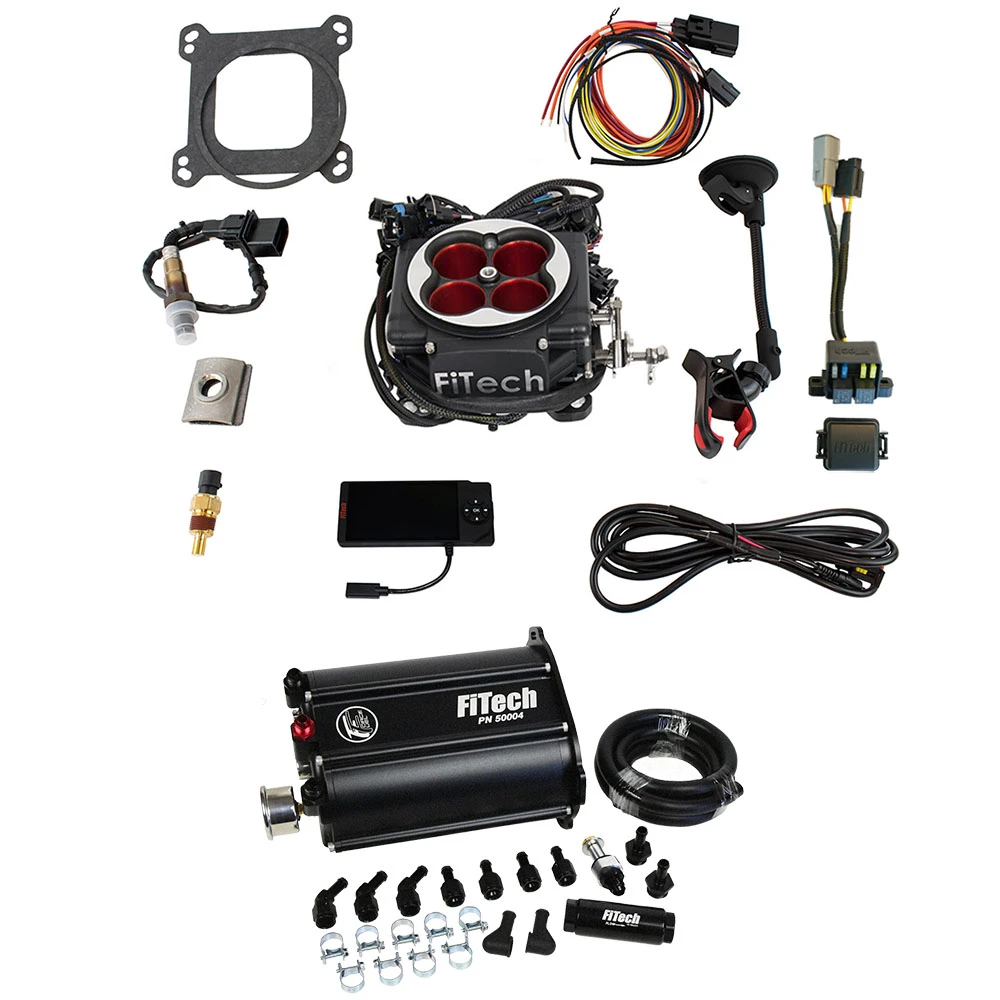

FiTech Go Port EFI System Standalone w/ Force Fuel Delivery (35214)
KEY FEATURES AND BENEFITS:
This kit features a multi-port fuel injection system, delivering precise fuel control to each cylinder for improved performance and efficiency.
The 850 CFM throttle body is designed for high-performance applications, and the speed density (MAP-N) metering ensures accurate fuel calculations.
The system is also power adder compatible, accommodating boosted or nitrous oxide applications.
The ECU and 4.5-inch handheld controller provide user-friendly setup and tuning.
Fuel Injection Style: Multi-port
Throttle Body: 850 CFM, 4-barrel square bore
Metering Style: Speed density (MAP-N)
Power Adder Compatibility: Yes (boost/nitrous)
Fuel System: Force Fuel (surge tank, pump, regulator)
Controller: 4.5-inch handheld display
Injectors: Not included
Fuel Type: Alcohol, Gasoline, Methanol, Flex
Installation: Mount the 850 CFM throttle body to your 4-barrel intake manifold.
Force Fuel System: Install the Force Fuel system, connecting it to your existing low-pressure fuel supply.
Sensor Installation: Install the MAP, IAT, TPS, and oxygen sensors as directed.
Wiring Harness: Connect the wiring harness to the ECU and sensors.
ECU Connection: Mount and connect the ECU.
Handheld Controller: Connect the handheld controller to the ECU.
Initial Setup: Use the handheld controller to input engine parameters and perform initial setup.
Self-Tuning: Start the engine and allow the ECU to self-tune.
User Tuning: Fine-tune parameters as needed using the handheld controller.
The FiTech 35214 provides a simplified and effective way to upgrade to EFI.
The Force Fuel system eliminates complex fuel line modifications.
The multi-port injection improves engine performance and fuel efficiency.
The self-tuning feature simplifies setup, while user tuning allows for customization.
Power adder compatibility expands performance potential.
The included ECU and handheld controller offer comprehensive control and monitoring.
Utilizes a 4-venturi, 44mm diameter throttle body.
Designed with a cast aluminum throttle body material with a black finish.
Operates with an external fuel pump.
Includes a liquid-filled fuel pressure gauge.
Features an internal IAC motor.
Includes a 10 micron fuel filter.
Includes 5 feet of high-pressure fuel hose.
Product identification
- Brand: FiTech
- Model / MPN: 35214
