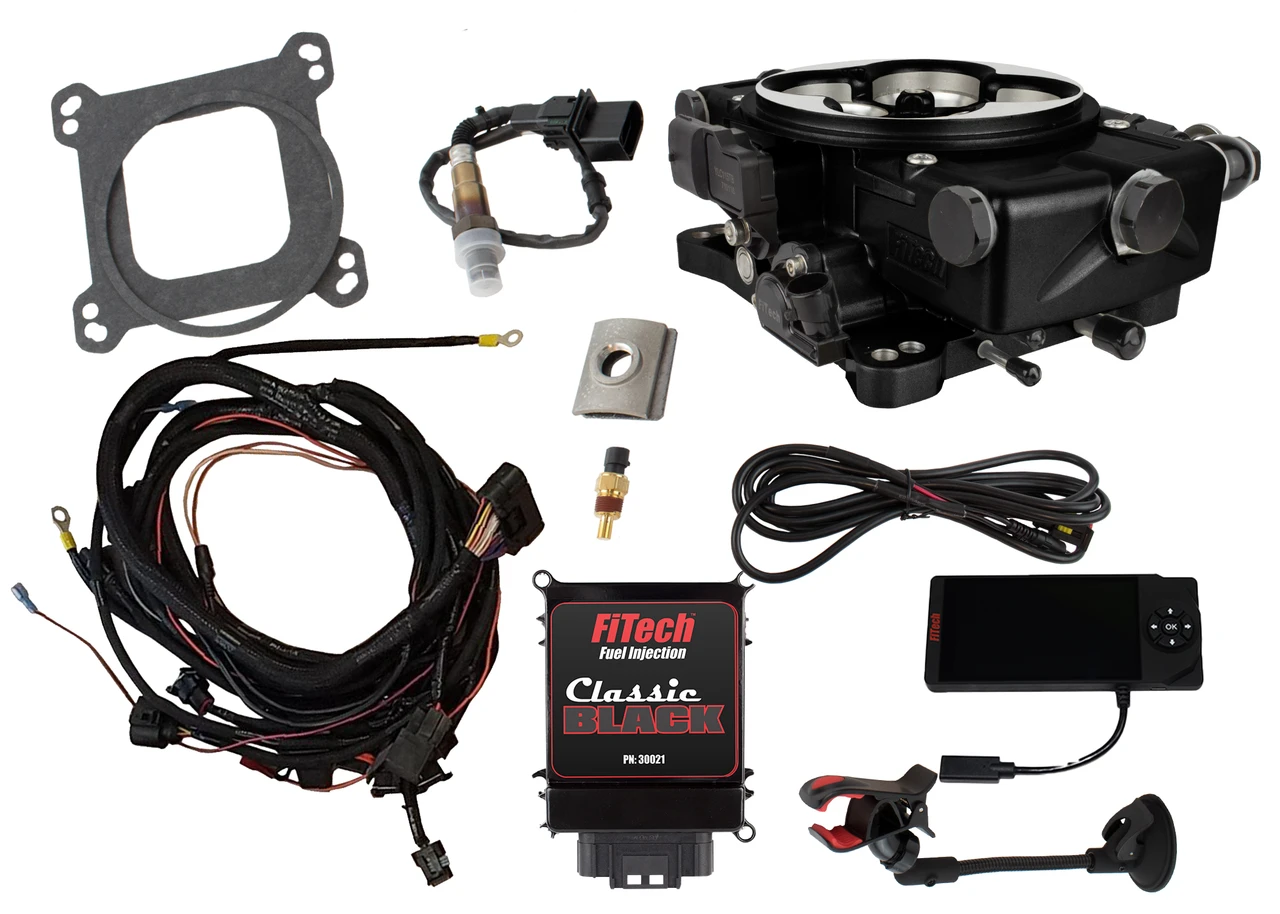

FiTech Go-EFI Classic Black 550 HP External ECU (30021)
KEY FEATURES AND BENEFITS:
Classic appearance: Retains the look of a carburetor while delivering EFI performance.
Adaptive tuning: Self-tunes based on driving habits.
Versatile compatibility: Fits 4150 flange and spread bore manifolds.
Real-time monitoring: Includes a wide-band oxygen sensor for fuel map adjustments.
User-friendly setup: Comes with a color touchscreen for easy configuration.
High power support: Rated for up to 550 HP, with potential for 650 HP.
Issue resolution: Eliminates cold start issues, hesitation, and flooding.
Model: FiTech Go-EFI Classic Black (30021)
Maximum horsepower: 550/650 HP (verify)
Injection style: Throttle body
Throttle body mounting flange: 4-barrel square bore (4150) and spread bore
Venturi quantity: 4
Venturi diameter: 45mm
Injectors: 80 lb/hr
Metering style: Speed density (Map-N) or speed throttle (Alpha-N)
Oxygen sensor: Bosch LSU 4.2 wideband
Throttle body material: Aluminum
Throttle body finish: Matte black
Installation: Mount the throttle body onto the intake manifold and position the external ECU in an accessible location.
Sensor setup: Install the oxygen sensor in the exhaust system using the clamp-on kit and connect the coolant temperature sensor along with other sensors.
Wiring: Connect the wiring harness to the ECU, sensors, and power source.
Configuration: Use the touchscreen to enter engine parameters and adjust initial settings.
Initial start: Start the engine to allow the system to begin self-tuning.
Fine-tuning: Monitor the engine's performance and make any necessary adjustments via the touchscreen.
BENEFITS OF USING FITECH GO-EFI CLASSIC BLACK 550 HP EXTERNAL ECU (30021):
Enhanced performance: Improves engine response and overall efficiency.
Reliable starts: Provides dependable cold start capability.
Carburetor issues resolved: Addresses common problems associated with traditional carburetors.
Simplified setup: Features intuitive self-tuning capabilities for user convenience.
Classic aesthetic: Maintains the vintage look of your engine bay.
External ECU design: Allows for discreet placement.
High-performance aluminum throttle body: Features a 45mm venturi for superior airflow.
Integrated sensors: Comes with built-in TPS, MAP, and IAT sensors for comprehensive monitoring.
Oxygen sensor kit: Includes a clamp-on oxygen sensor for straightforward installation.
High-resolution touchscreen: Provides an easy-to-use interface for adjustments.
Diverse bolt pattern: Compatible with various manifold configurations.
Product identification
- Brand: FiTech
- Model / MPN: 30021
