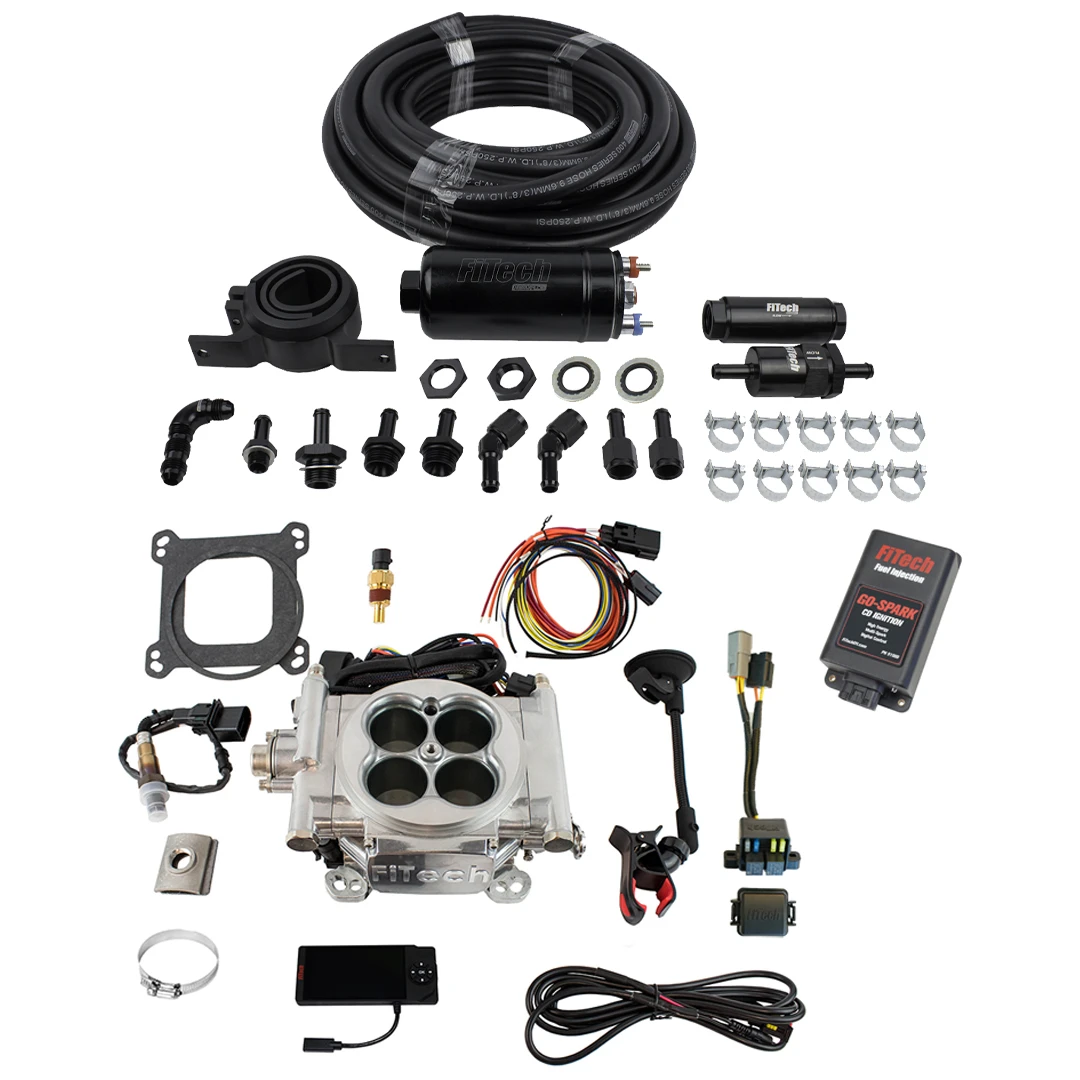

FiTech EFI 4 Aluminum Kit w/Inline Fuel Pump & CDI Box (93101)
The FiTech EFI 4 Aluminum Kit w/ Inline Fuel Pump & CDI Box (93101) offers a straightforward solution for transitioning from carbureted to fuel-injected engines. Designed for 250-600 HP engines with 4-barrel intake manifolds, this system provides improved performance and fuel efficiency through its self-tuning capabilities. The integrated ECU and comprehensive kit simplify installation, making it a practical upgrade for various applications.
KEY FEATURES AND BENEFITS:
Integrated ECU: Mounted directly on the throttle body for convenient self-tuning adjustments.
Complete Kit: Includes fuel pump, pressure regulator, and all necessary sensors (MAP, IAT, TPS, oxygen) for a complete installation.
High Performance: 850 CFM throttle body and 80 lbs./hr. injectors support engines up to 600 HP.
User-Friendly Controller: Handheld touchscreen enables easy adjustments.
Versatile Fuel Compatibility: Works with gasoline, methanol, and E85.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control: Compatible
Fuel Pump: Included (external)
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: 4-barrel square bore (4150)
Airflow Rate: 850 CFM
Injector Size: 80 lbs./hr.
Fuel Type: Gasoline, Methanol, E85
Preparation: Disconnect the battery and remove the existing carburetor and intake manifold (if necessary).
Installation: Mount the FiTech throttle body onto the 4-barrel intake manifold.
Fuel System: Install the included fuel pump and pressure regulator, ensuring proper fuel line connections.
Wiring: Connect the wiring harness to the appropriate sensors and power sources, following the provided instructions.
Sensor Installation: Mount the oxygen, MAP, IAT, and TPS sensors in their designated locations.
ECU Setup: Connect the handheld controller to the ECU and follow the on-screen prompts for initial setup.
Initial Start: Start the engine and allow the system to self-tune. Monitor the engine parameters on the handheld controller.
Fine-Tuning: Make necessary adjustments using the handheld controller to optimize performance.
BENEFITS OF USING THE FITECH EFI 4 ALUMINUM KIT W/ INLINE FUEL PUMP & CDI BOX (93101):
Simplified Conversion: Easy transition from carburetor to fuel injection.
Improved Fuel Efficiency: Enhanced engine performance.
Comprehensive Kit: Comes with all necessary components for installation.
Fuel Type Compatibility: Versatile for various fuel types.
Handheld Touchscreen Controller: For setup and adjustments.
External Fuel Pump and Pressure Regulator: Included in the kit.
850 CFM Airflow Rate: For optimal performance.
Included Sensors: Oxygen, MAP, IAT, and TPS sensors.
Wiring Harness: For simplified installation.
CDI Box Compatibility: Ensures performance.
Adjustable Fan Control Switch: For enhanced cooling.
Voltage Controlling Fuel Pump Control: For efficiency.
Product identification
- Brand: FiTech
- Model / MPN: 93101
