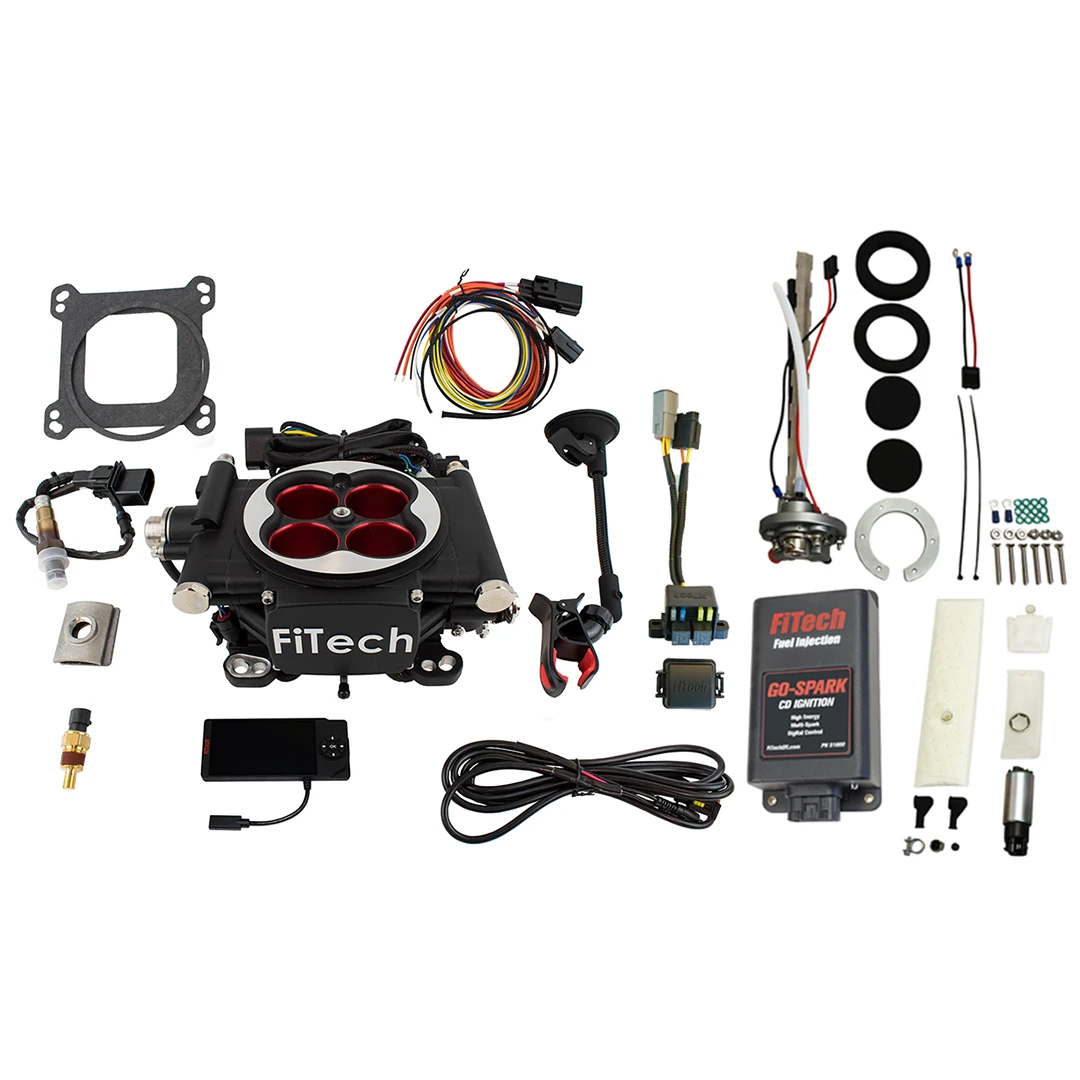

FiTech EFI 4 600HP PowerAdder Matte Black w/255 LPH Pump & CDI (96504)
The FiTech EFI 4 600HP PowerAdder Matte Black w/255 LPH Pump & CDI (96504) is a comprehensive solution for converting carbureted engines to modern electronic fuel injection (EFI). Designed for performance vehicles, this kit supports up to 600 horsepower and is compatible with power adders like boost and nitrous oxide. It includes a 4-barrel throttle body, ECU, fuel pump, and the Go-Spark CDI ignition system, providing everything needed for a complete EFI upgrade.
KEY FEATURES AND BENEFITS:
EFI Conversion: Converts carbureted engines to EFI for improved performance and efficiency.
High Horsepower Support: Supports up to 600 horsepower, suitable for high-performance applications.
Power Adder Compatibility: Designed for use with boost and nitrous oxide systems.
Enhanced Ignition: Includes Go-Spark CDI ignition system for improved spark and combustion.
User-Tunable: Allows fine-tuning of performance parameters.
Touchscreen Display: 4.5-inch display for easy tuning and monitoring.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control: Yes
Power Adder Compatible: Yes (Boost/Nitrous oxide)
ECU Included: Yes
Fuel Pump Included: Yes (In-tank)
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Diameter: 44.00mm
Airflow Rate: 850 CFM
Injector Size: 80 lbs./hr.
Fuel Type Compatibility: Alcohol, Gasoline, Methanol, and Flex fuel
Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
Installation: Install the FiTech throttle body onto the intake manifold using the provided gasket.
Wiring: Connect the wiring harness to the ECU and all necessary sensors (MAP, IAT, TPS, oxygen sensor).
Ignition: Install the Go-Spark CDI ignition box and connect it to the distributor and ECU.
Sensor Connections: Attach all sensors to their respective locations on the engine and connect them to the wiring harness.
ECU Setup: Connect the handheld touchscreen display to the ECU and follow the on-screen instructions for initial setup.
Initial Start: Verify all connections, reconnect the battery, and start the engine.
Self-Tuning: Allow the system to self-tune during initial operation, monitoring the display for any adjustments needed.
Fine-Tuning: If necessary, use the touchscreen display to make manual adjustments to fuel and timing settings.
BENEFITS OF USING FITECH EFI 4 600HP POWERADDER MATTE BLACK W/255 LPH PUMP & CDI (96504):
Improved engine performance and throttle response.
Reliable ignition system for consistent combustion.
Simplified tuning with self-learning technology.
Increased horsepower and torque output.
Modernizes older engines with up-to-date fuel injection technology.
Allows for better engine control.
850 CFM 4-barrel throttle body with 44mm venturi.
80 lbs./hr. fuel injectors.
Go-Spark CDI ignition system for improved spark.
In-tank fuel pump module with 255 LPH capacity.
Speed density (MAP-N) metering style.
Compatibility with various fuel types (Alcohol, Gasoline, Methanol, Flex).
Ability to control timing based on boost or nitrous.
Included sensors for accurate engine monitoring.
Ability to handle up to 21.7 lbs of boost.
Product identification
- Brand: FiTech
- Model / MPN: 96504
