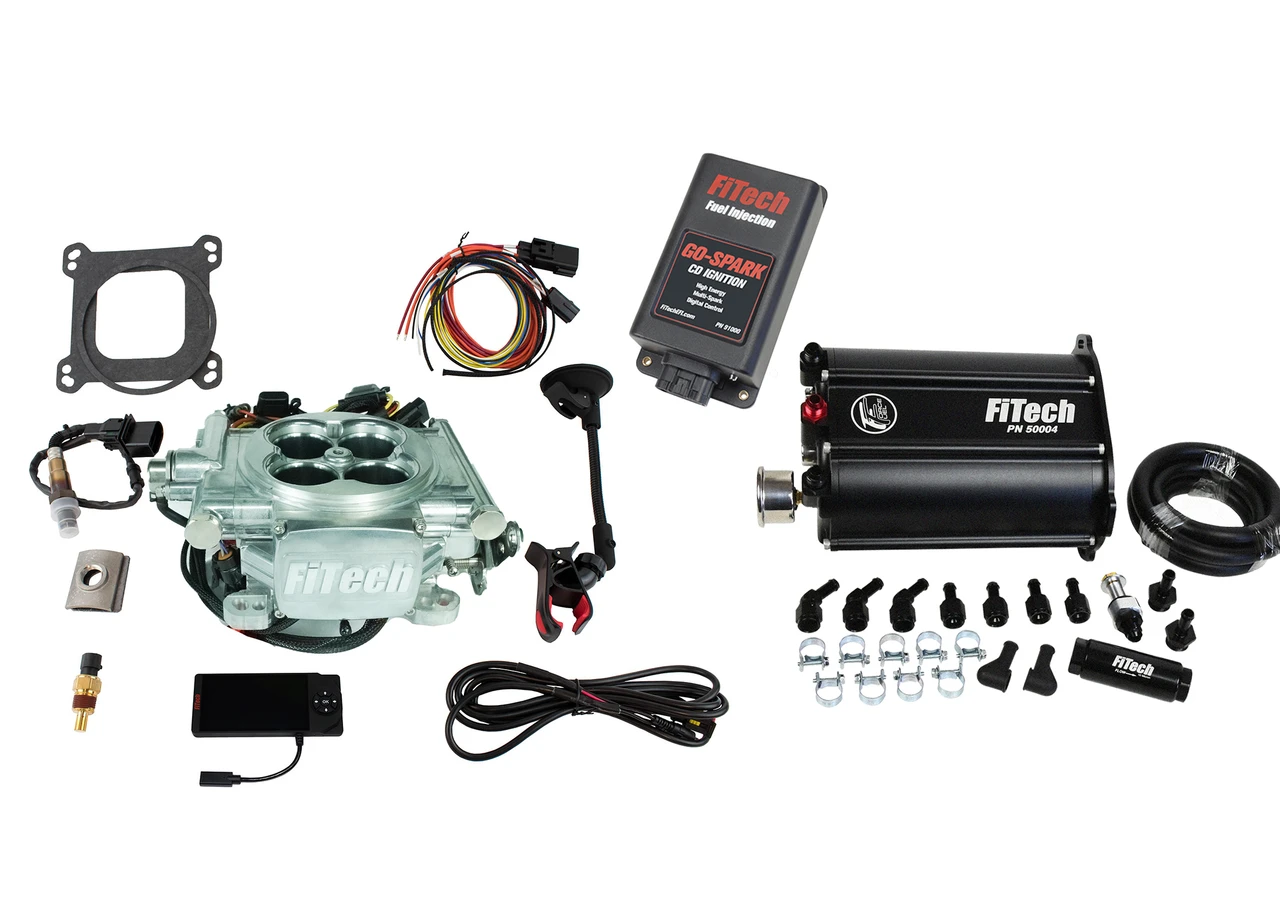

FiTech EFI 4 600HP Power Adder Aluminum w/Force Fuel & CDI (93506)
KEY FEATURES AND BENEFITS:
Boost Handling: Designed to handle up to 25 lbs of boost and compatible with various power adders.
Improved Ignition Control: Go Spark CDI box enhances ignition performance.
Performance Upgrade: Suitable for engines producing 200 to 600 horsepower, providing an upgrade over traditional carburetor setups.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control Compatible: Yes
Power Adder Compatible: Yes (Boost/Nitrous oxide)
ECU Included: Yes
Fuel Pump Included: Yes (Force Fuel system)
Metering Style: Speed density (Map-N)
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Diameter: 43.00 mm
Airflow Rate: 850 CFM
Injector Size: 80 lbs/hr
MAP Sensor: 2.5 BAR internal
Fuel Pump Flow Rating: 340 LPH
Compatibility: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, and other engines with a 4-barrel intake manifold
Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex Fuel
Remove Existing Carburetor: Disconnect and remove the existing 4-barrel carburetor.
Install Throttle Body: Mount the FiTech throttle body onto the 4-barrel intake manifold using the provided gasket.
Connect Fuel System: Install the Force Fuel system, connecting it to the existing fuel pump.
Install Sensors: Mount the O2 sensor, CTS sensor, and connect the MAP, IAT, and TPS sensors.
Connect Wiring Harness: Connect the wiring harness to the ECU and all sensors, following the provided instructions.
Install Go Spark CDI Box: Mount and connect the Go Spark CDI box for ignition control.
Connect Handheld Controller: Connect the handheld controller to the ECU for initial setup and monitoring.
Initial Setup: Use the handheld controller to input engine parameters and start the self-tuning process.
Fine-Tuning (Optional): Use the pro-tuning laptop software for advanced adjustments.
BENEFITS OF USING THE FITECH EFI 4 600HP POWER ADDER ALUMINUM W/FORCE FUEL & CDI (93506):
Improved Fuel Efficiency: Enhances overall performance compared to traditional carburetors.
Self-Tuning Capabilities: Eliminates the need for manual adjustments.
Enhanced Power Output: Increases responsiveness with power adders.
Precise Ignition Control: Provided by the Go Spark CDI box.
Simplified Installation: Comes as a comprehensive kit for easy setup.
Multiple Fuel Types: Ability to run various fuel types for flexibility.
Annular Swirl Discharge Fuel Distribution: Ensures optimal fuel atomization.
Built-In Pressure Regulator: Maintains stable fuel pressure.
Dual Fan Control Outputs: For enhanced cooling management.
Boost and Nitrous Timing Retard Functions: For precise control under extreme conditions.
Pro-Tuning Laptop Software Included: For advanced tuning options.
Bright Aluminum Finish: Durable and visually appealing design.
On-the-Fly A/F Ratio Control: Allows for immediate adjustments during operation.
4.5 Inch Display on Handheld Controller: Provides clear monitoring and adjustments.
Product identification
- Brand: FiTech
- Model / MPN: 93506
