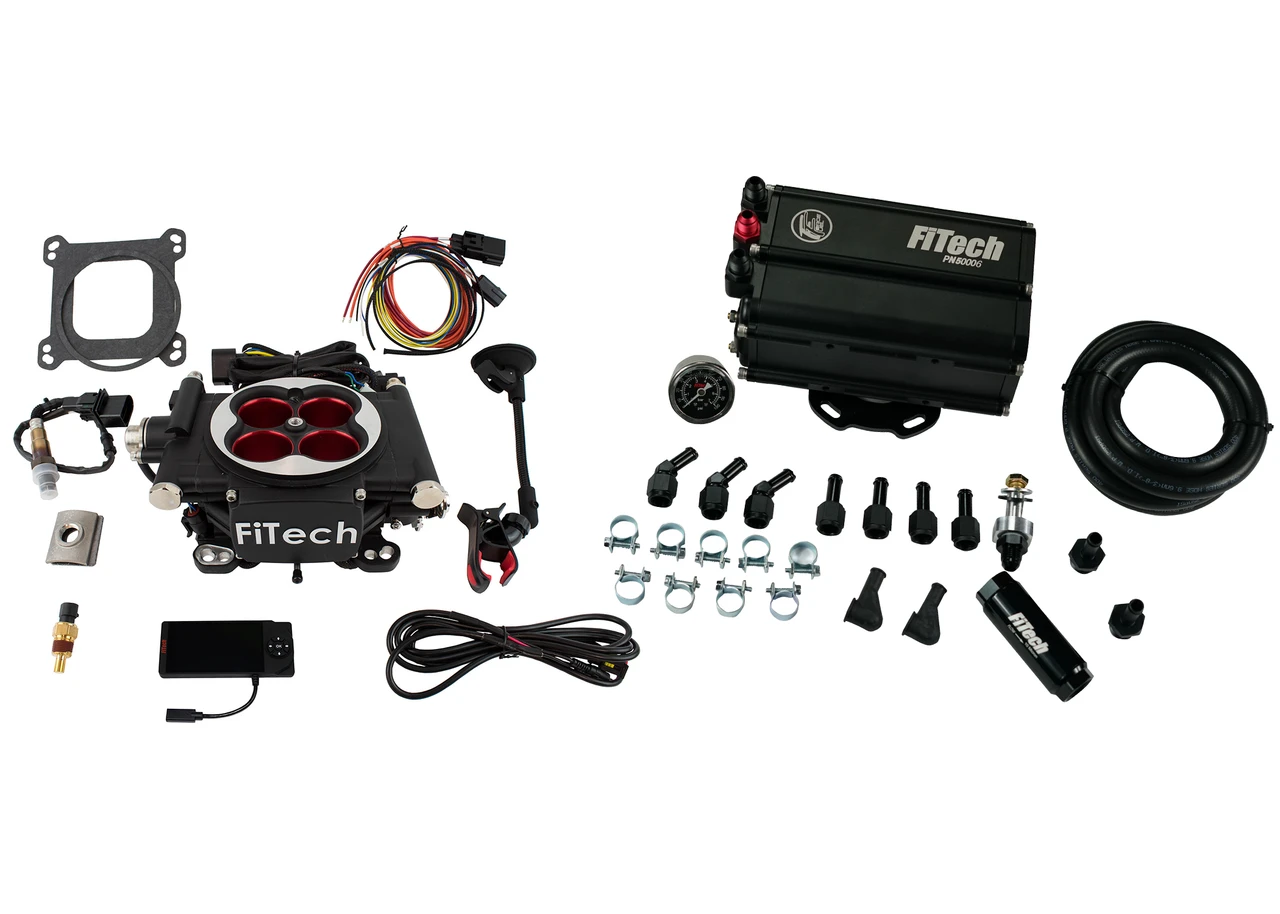

FiTech EFI 4 600 HP Power Adder Matte Black w/ Force Fuel (35504)
KEY FEATURES AND BENEFITS:
High Power Support: Designed for engines up to 600 horsepower, compatible with boosted applications.
850 CFM Throttle Body: Paired with 80 lbs/hr injectors for ample fuel and air supply.
Wide-Band Oxygen Sensor: Provides accurate air/fuel ratio monitoring.
Versatile Fuel Compatibility: Works with gasoline, E85, methanol, and alcohol fuels.
Complete EFI Conversion Kit: Includes all necessary components for installation.
4.5-Inch Handheld Display: For easy tuning and monitoring.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control: Yes
Power Adder Compatible: Yes (Boost/Nitrous oxide)
ECU Included: Yes
Fuel Pump Included: Yes (External, 340 LPH)
Transmission Controller: No
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: 4-barrel square bore (4150)
Venturi Quantity: 4
Venturi Diameter: 43 mm
Airflow Rate: 850 CFM
Injector Size: 80 lbs/hr
Fuel Type: Alcohol, Gasoline, Methanol, Flex
Compatibility: Universal fit for engines with 4-barrel square bore intake manifolds
Remove Existing Carburetor: Disconnect and remove the existing carburetor and related components.
Install Throttle Body: Mount the FiTech throttle body onto the intake manifold using the 4-barrel square bore flange.
Install Sensors: Connect the provided MAP, IAT, TPS, and oxygen sensors to their respective locations.
Install Fuel System: Mount the Force Fuel system and external fuel pump, connecting the fuel lines as directed.
Connect Wiring Harness: Route and connect the wiring harness to the ECU and engine sensors, following the provided instructions.
Connect Display: Plug in the 4.5-inch display for monitoring and initial setup.
Initial Setup: Follow the on-screen prompts on the display to input engine parameters and start the self-tuning process.
Fine Tuning: Allow the ECU to self-learn and make adjustments. Further fine-tuning can be done through the display as needed.
BENEFITS OF USING THE FITECH EFI 4 600 HP POWER ADDER MATTE BLACK W/FORCE FUEL (35504):
Improved Engine Performance: Enhances throttle response for a more engaging driving experience.
Fuel Efficiency: Offers better economy compared to traditional carburetors.
Simplified Tuning: Self-learning ECU reduces the need for constant adjustments.
Compatibility: Works with various fuel types for flexibility.
Reduced Emissions: Contributes to improved drivability and environmental performance.
Consistent Operation: More stable engine performance in varying weather conditions.
Cast Aluminum Throttle Body: Finished in matte black for durability and aesthetics.
External Fuel Pump: Delivers a flow rate of 340 LPH.
Speed Density (MAP-N) Metering: Provides accurate fuel management.
Complete Wiring Harness: Included for hassle-free installation.
Force Fuel Surge Tank System: Ensures reliable fuel supply under various conditions.
Product identification
- Brand: FiTech
- Model / MPN: 35504
