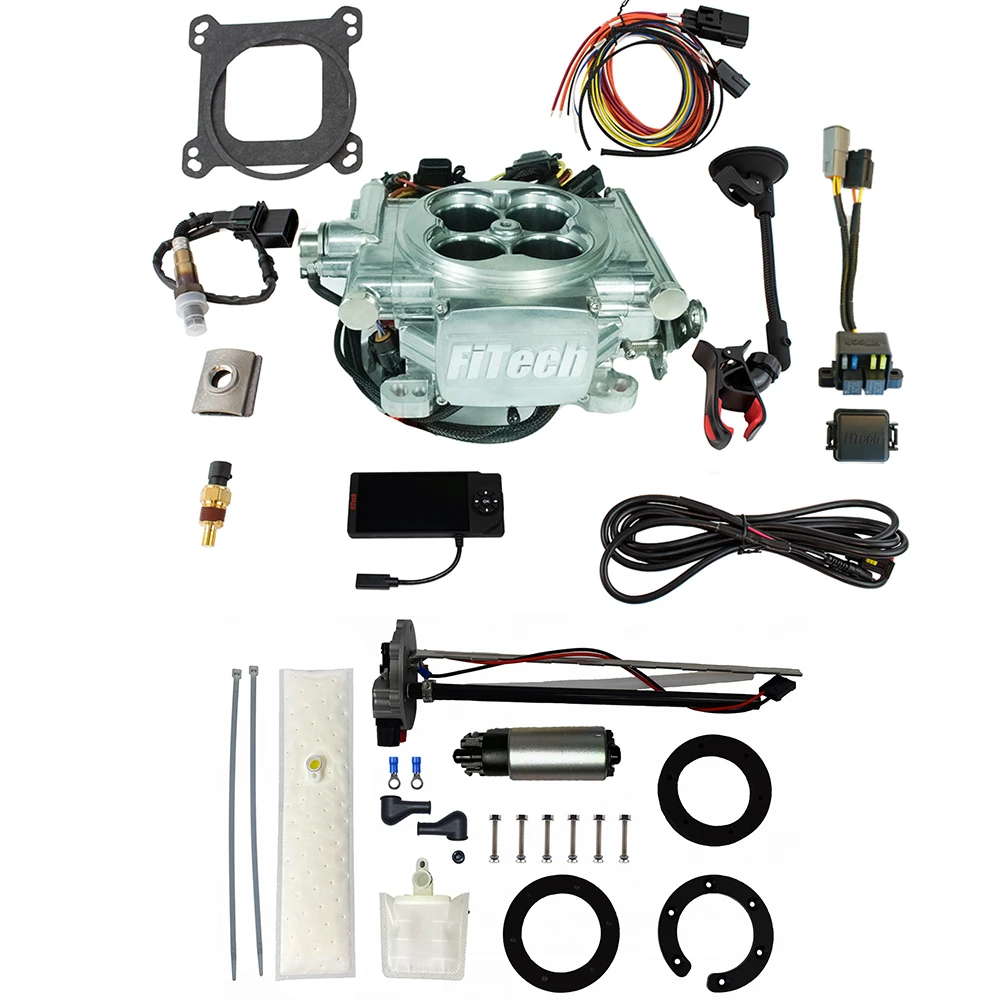

FiTech EFI 4 600 HP Power Adder Bright Aluminum w/ In-Tank Kit (36106)
KEY FEATURES AND BENEFITS:
Supports up to 600 horsepower, suitable for high-performance engines.
Designed for boosted and nitrous oxide applications, handling up to 21.7 lbs of boost.
Self-tuning capability simplifies installation and adjustments.
Touchscreen handheld controller for easy user interface and adjustments.
Compatible with gasoline, alcohol, methanol, and flex fuels.
Includes all necessary sensors and wiring.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control: Compatible
Power Adder Compatible: Yes (Boost/Nitrous oxide)
ECU Included: Yes
Fuel Pump: In-tank module
Throttle Body: 4-barrel square bore, 850 CFM
Injector Size: 80 lbs/hr
Venturi Diameter: 44mm
Metering Style: Speed density (Map-N)
Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
Installation: Install the new FiTech throttle body onto the intake manifold using the provided gasket.
Fuel System: Install the in-tank fuel pump module into the fuel tank. Connect the fuel lines and pressure regulator.
Wiring: Connect the wiring harness to the throttle body, sensors, and ECU, following the provided instructions.
Sensors: Install the oxygen, MAP, IAT, and TPS sensors.
ECU Setup: Mount the ECU and connect the touchscreen controller.
Initial Setup: Follow the touchscreen prompts for initial setup and calibration.
Fuel Pressure: Verify fuel pressure is at the correct setting.
Start-up: Reconnect the battery and start the engine. Allow the system to self-tune.
Fine-tuning: Use the touchscreen or laptop software for any further adjustments.
BENEFITS OF USING THE FITECH EFI 4 600 HP POWER ADDER BRIGHT ALUMINUM W/ IN-TANK KIT (36106):
Improved engine performance and efficiency.
Simplified tuning and adjustments with self-tuning capability.
Increased reliability and reduced maintenance compared to carburetors.
Compatibility with power adders for high-performance applications.
Improved cold start performance.
4-barrel square bore throttle body.
80 lbs/hr fuel injectors.
In-tank fuel pump module included.
Touchscreen handheld controller.
Speed density (Map-N) metering.
Boost and nitrous timing control.
Pro-tuning laptop software.
All required sensors included.
Wiring harness and installation hardware.
Product identification
- Brand: FiTech
- Model / MPN: 36106
